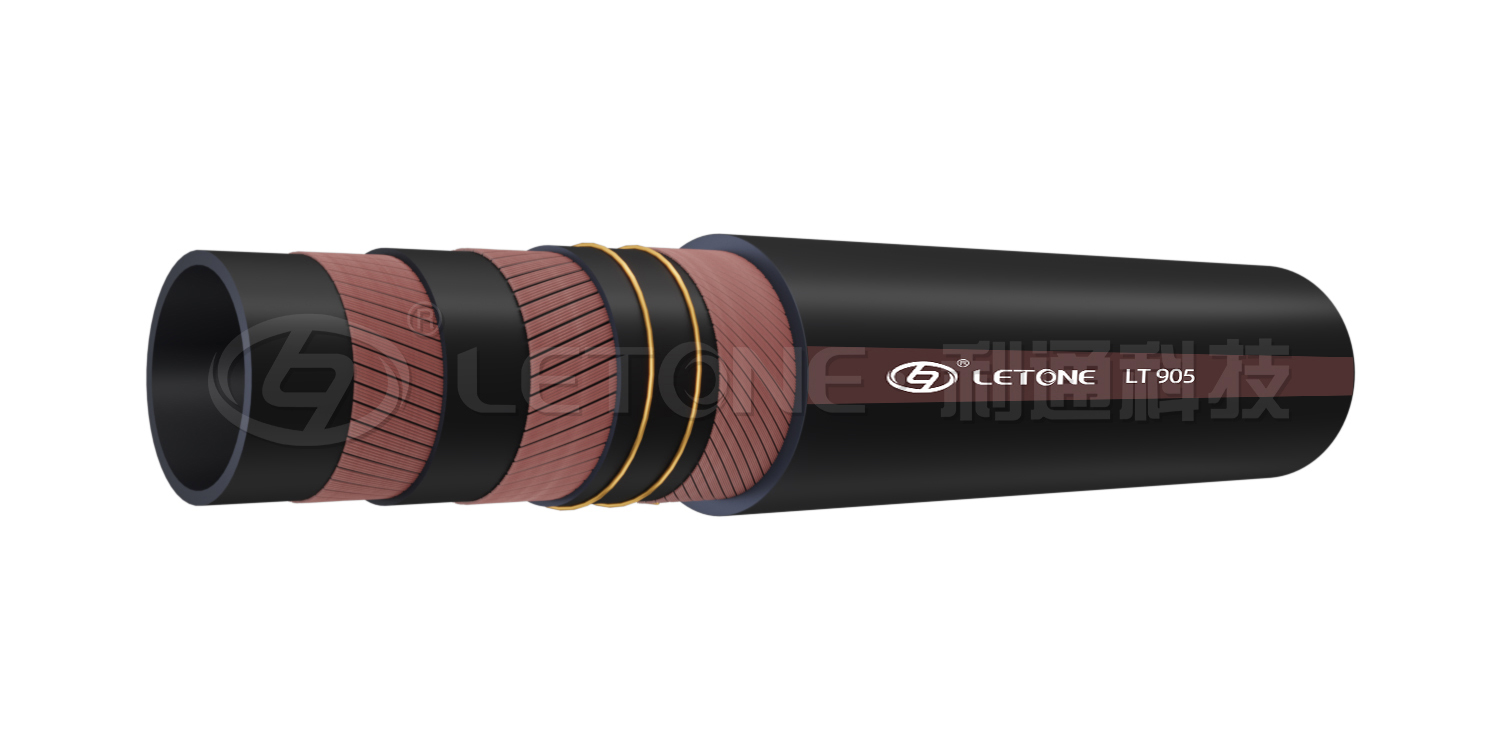

LT905
high pressure suction hose
Application:Heavy duty drains for demanding and high pressure working environments

Tube:Black SBR/NBR hybrid rubber
Reinforcement: high tension textile rope
Cover: Black SBR rubber, wear resistant, oxidation resistant
Working pressure:Constant pressure 20Bar (300PSI)
Temperature range: -30°C (-22°F) to +80°C (+176°F)
high pressure suction hose
Parameter
Series I.D. (in.) I.D. (mm) O.D. (in.) O.D. (mm) MaxRec.W.P. (PSI) Weight (kg/m)
LT905-150 11/2 38 1.97 50 300 1.03
LT905-200 2 51 2.56 65 300 1.32
LT905-250 21/2 63 3.11 79 300 2.29
LT905-300 3 76 3.62 92 300 2.78
LT905-400 4 102 4.65 118 300 3.63
LT905-600 6 152 6.69 170 300 6.16

Note: The actual parameters are subject to the final atlas
