Super Hercules Hose -Letone

Super Hercules Hose

Tube: Nitrile/Neoprene Synthetic Rubber for Biodegradable Hydraulic Fluids.

Reinforcement layer: one layer of steel wire braid (1/2"-3/4"), pulse ≥ 300,000 times; four layers of steel wire winding (1"-2"), pulse ≥ 1 million times.

Cover layer: Standard tube: no-stripping wear-resistant, weather-resistant synthetic rubber; wear-resistant tube: no-stripping high wear-resistant, weather-resistant synthetic rubber; super wear-resistant tube: no-stripping super wear-resistant, weather-resistant UHMWPE.

Temperature range: -40℃~+121℃ (-40℉~+250℉).

Executive standard: Exceed ISO18752-AC/CC standard.

Bending radius: 41% less than ISO18752 standard; 47% less than SAE standard; 60% more pressure than SAE standard.

Super Hercules Series Hose vs Standard

Letone Hercules and Super Hercules hoses have low bending, high pressure, and long life (using Letone's one-piece hose joints, weather resistance for more than 5 years, and a 2-year warranty), leading the industry with one million pulse cycles Under test conditions, (weather resistance for more than three years), the bending radius is 30% lower than the SAE/DIN standard and other characteristics.

Scope of application

Letone Hercules & Super Hercules hoses are suitable for conveying water-based, petroleum-based hydraulic oil and biodegradable hydraulic oil in harsh working environments such as excavators and other construction machinery, construction machinery, mining machinery and agricultural machinery Hydraulic oil is used.

Use and maintenance of the hose

(1) According to the conditions of use, correctly select the variety and size of the hose to prevent misuse and substitution. It is strictly forbidden to use a low-pressure hose instead of a high-pressure hose, or use an ordinary (air or water) hose instead of conveying acid (alkali) or oil, etc. Special hose for corrosive media. (2) For the hose that transports acid (alkali), oil and other media, after each use, the medium in the tube should be removed and cleaned in time to prevent the corrosion of the tube body by the residue. (3) The hoses for seasonal use should be properly stored after being cleaned after use.

Frequently Asked Questions | Use and Maintenance of Hose

1) According to the conditions of use, correctly select the variety and size of the hose to prevent misuse and substitution. It is strictly forbidden to use a low-pressure hose instead of a high-pressure hose, or use an ordinary (air or water) hose instead of an acid (alkali) or oil for corrosion. Special hoses for sexual media are used. (2) For the hose that transports acid (alkali), oil and other media, after each use, the medium in the tube should be removed and cleaned in time to prevent the corrosion of the tube body by the residue. (3) The hoses for seasonal use should be properly stored after being cleaned after use.

Honor

Over the years, Letone has always adhered to the core values of "integrity-based, customer first", and unswervingly promoted the development strategy of "innovative leadership, talent training priority, rooted in lean, and bravely climbing the peak". Closely focus on the upstream and downstream industrial chains of rubber hoses to carry out technical research and development and manufacturing of polymer materials, hydraulic hoses, industrial hoses, oil drilling hoses, food and medicine hoses, rubber seals, and fluid connectors.

Mining Product Safety Mark Certificate

Equipment manufacturing unit registration certificate

Weapon Equipment Quality System Certification

Environmental Management System Certification

Coal Safety Certification

Environmental Management System Certification

Series Products

LT SA5991

Super Artery EXCEEDS ISO18752-BC/CC

Inner rubber layer：Neoprene synthetic rubber, suitable for hydraulic oil that can be degraded
Reinforcement layer：super-strong high-flex steel wire wound in four layers, pulse ≥ 1 million times
outer layer： standard:no-skive abrasion, weather resistant synthetic rubber.
AR cover: no-skive, highly abrasion, weather resistant synthetic rubber.
SAR cover: super abrasion, weather resistant UHMWPE.
Temperature range：-40°C to +121°C (-40°F to +250°F)

Consult now

LT SA5992

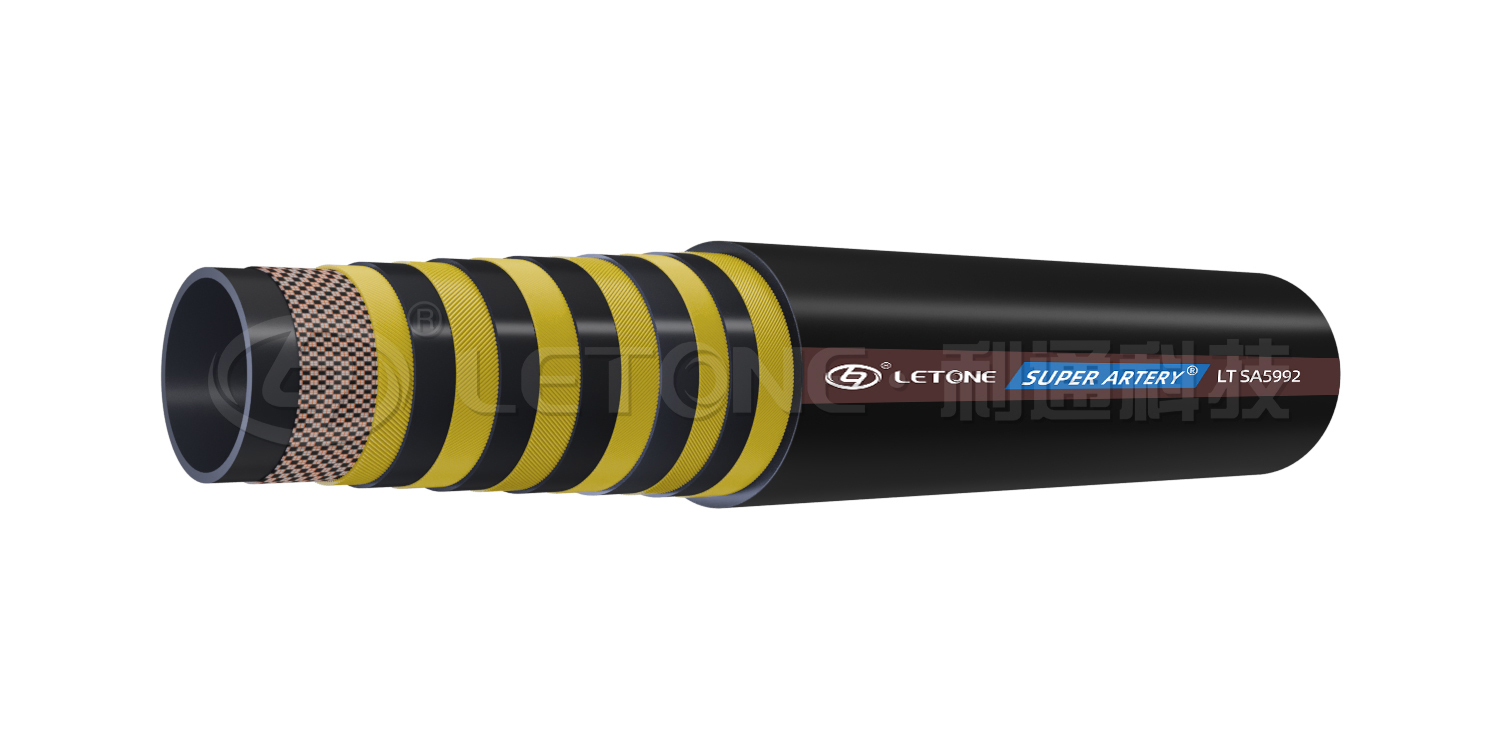

Super Artery EXCEEDS ISO18752-BC/CC/DC

Inner rubber layer：Neoprene synthetic rubber, suitable for hydraulic oil that can be degraded
Reinforcement layer：two braids of high tensile steel wire (1/4"-5/16"), impulse2500,000 cycles.
               four plies of spiraled high tensile steel wire (3/8"-1 1/4"), impulse21,000,000 cycles.
               six plies of spiraled high tensile steel wire (1 1/2"-2"), impulse21,000,000 cycles.
Outer layer：standard:abrasion, weather resistant synthetic rubber.
              AR cover: highly abrasion, weather resistant synthetic rubber.
              SAR cover: super abrasion,weather resistant UHMWPE
Temperature range：-40C-+100C(-40F-+212°F)
              -40°C~+121°C(-40F-+250°F)

Consult now

LT SA5993

Super Artery EXCEEDS ISO18752 DC

Inner rubber layer：Neoprene synthetic rubber, suitable for hydraulic oil that can be degraded
Reinforcement：Four layers of steel wire winding (1/4"‒1"), pulse ≥1 million, six layers of steel wire winding (1 1/4"‒2"), pulse ≥1 million times
Outer layer：standard;abrasion, weather resistant synthetic rubber.
               AR cover: highly abrasion, weather resistant synthetic rubber.
               SAR cover: super abrasion,weather resistant UHMWPE.

Temperature range：-40°C to +121°C (-40°F to +250°F)

Consult now

LT SA6991

Super Artery EXCEEDS ISO18752-BC/CC

Inner rubber layer： NBR or CR synthetic rubber, suitable for biodegradablehydraulic fluids.
Reinforcement layer：one or two layers of steel wire weaving (1/2" ‒3/4"), pulse ≥ 300,000 times, four layers of steel wire winding (1" ‒ 2"), pulse ≥ 1 million times
Outer layer：standard: no-skive abrasion, weather resistant synthetic rubber.
AR cover: no-skive, highly abrasion, weather resistant synthetic rubber.
SAR cover: super abrasion, weather resistant UHMWPE.
Temperature range：-40℃ to +100℃ (-40℉ to +212℉) -40℃ to +121℃ (-40℉ to +250℉)

Consult now

LT SA6992

Super Artery EXCEEDS ISO18752-AC/BC/CC

Inner rubber layer： NBR or CR synthetic rubber, suitable for biodegradablehydraulic fluids.
Reinforcement layer：one or two layers of steel wire weaving (1/4" ‒3/8"), pulse ≥300,000 times four layers of steel wire winding (1/2"‒2"), pulse ≥1 million times
Outer layer：standard: no-skive abrasion, weather resistant synthetic rubber.
AR cover: no-skive, highly abrasion, weather resistant synthetic rubber.
SAR cover: super abrasion, weather resistant UHMWPE.
Temperature range：-40℃ to +100℃ (-40℉ to +212℉) -40℃ to +121℃ (-40℉ to +250℉)

Consult now
