LT797

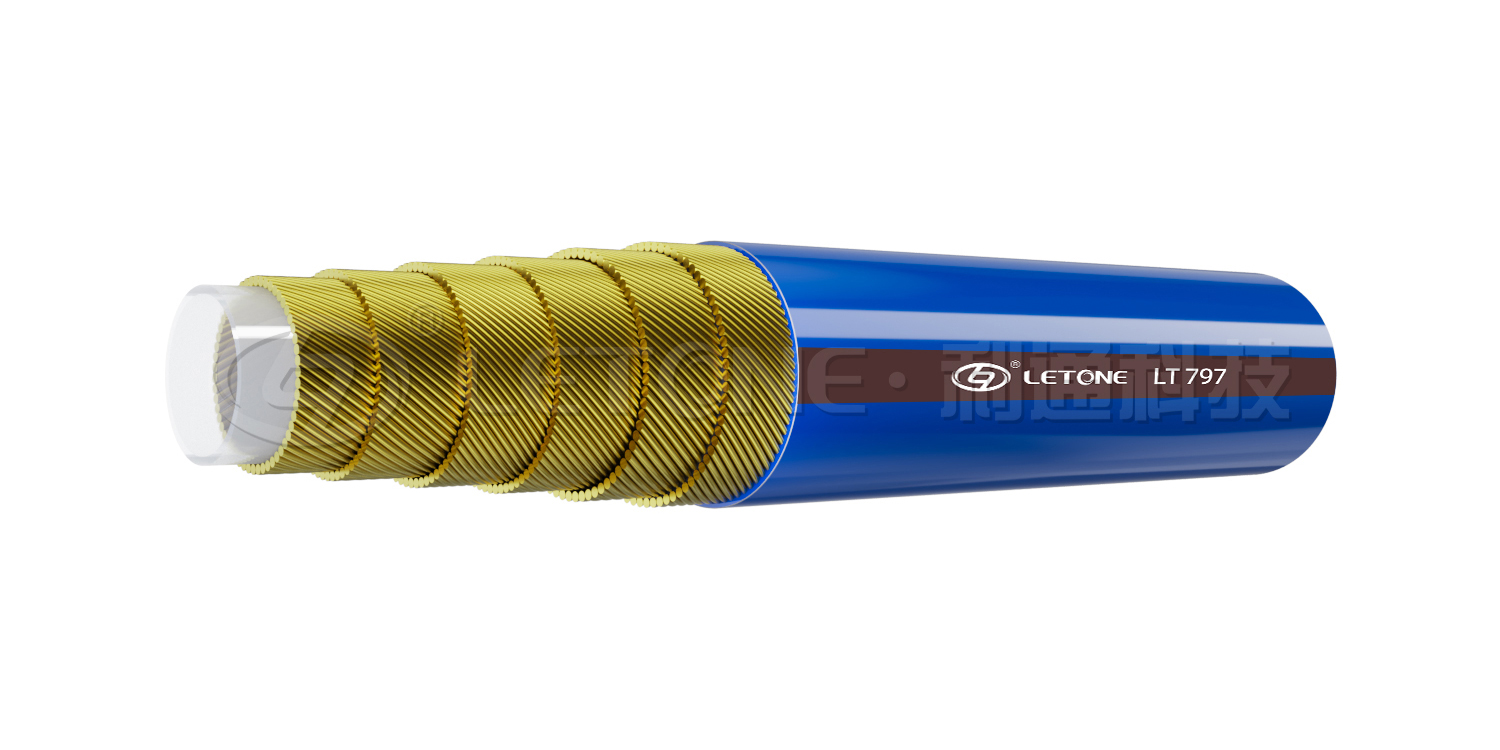

21750PSI ultra high pressure resin hose
Scope of application :suitable for conveying media such as water and hydraulic oil under high pressure, widely used in high-pressure cleaning and other industries

Pressure range:1500bar (21750psi)
Inner rubber layer: Nylon
Reinforcement layer:four or six layers of high-strength super-flexible steel wire winding
Outer layer:black or colored polyurethane
Temperature range:-40℃ to +100℃ (-40℉ to +212℉)
21750PSI ultra high pressure resin hose
Parameter
Hose inner diameter I.D. Outer diameter of hose O.D. Working pressure W.P. Burst pressure W.P. Minimum bending radius MIN.B.P. Reference weight W.T.
Dash In. mm mm MPa psi MPa psi mm g/m
-3 3/16 4.8 13.5 150 21750 450 65250 200 450
-4 1/4 6.3 14.8 150 21750 450 65250 220 530
-5 5/16 7.9 16.4 150 21750 450 65250 250 640
-6 3/8 9.5 20.4 150 21750 450 65250 250 1000
-8 1/2 12.7 23.6 150 21750 450 65250 300 1180

Note: The actual parameters are subject to the final atlas
