LT903

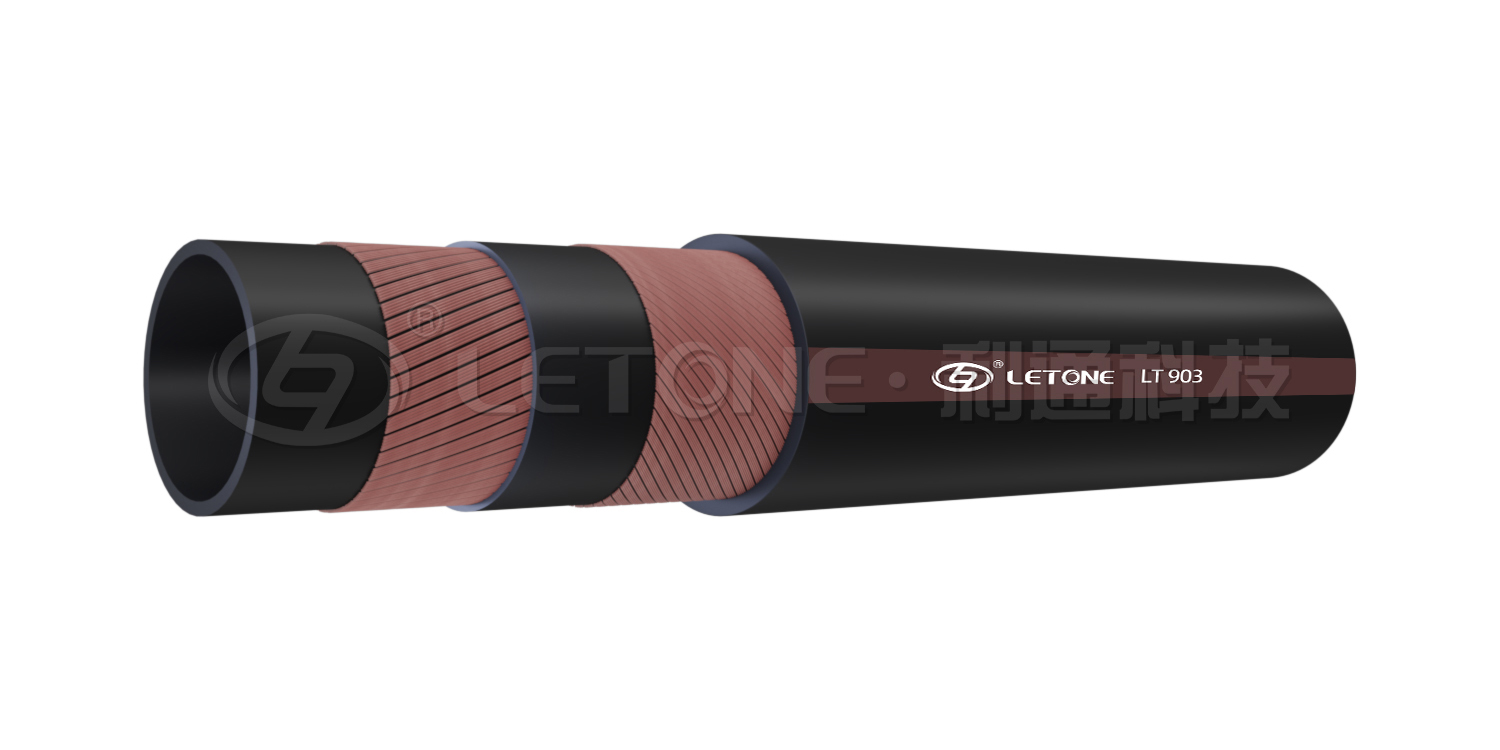

HG/T 3035 WATER DISCHARGE RUBBER HOSE

Application：Designed for the general use of construction, agriculture, and other industrial applications.

Hose Construction：

Inner Tube：black EPDM or NR&SBR synthetic rubber (UPE layer is available)

Reinforcement：multi-spiraled high tensile synthetic fibers

Outer Layer：oil, abrasion resistant, anti-aging black, gray or blue NBR or PVC synthetic rubber

Temperature Range：-30°C~82°C (-22°F~180°F)

*The hose dimension, pressure and color can be customized based on the requirements：

Online

Hotline ：

+86-0371-55157686

Parameter

I.D		O.D		W.P	Min.B.P	W.T
in	mm	in	mm	psi	psi	kg/m
2	51	2.40	61	45	113	1.40
2.5	64	2.91	74	45	113	2.10
3	76	3.43	87	45	113	2.45
4	102	4.57	116	45	113	4.35
5	127	5.51	140	45	113	6.20
6	152	6.46	164	45	113	6.75
8	203	8.82	224	45	113	14.75
10	254	10.94	278	45	113	19.75
2	51	2.40	61	75	188	1.40
2.5	64	2.91	74	75	188	2.10
3	76	3.43	87	75	188	2.45
4	102	4.57	116	75	188	4.35
5	127	5.51	140	75	188	6.20
6	152	6.46	164	75	188	6.75
8	203	8.82	224	75	188	14.75
10	254	10.94	278	75	188	19.75
2	51	2.48	63	150	375	1.50
2.5	64	2.99	76	150	375	2.20
3	76	3.50	89	150	375	2.55
4	102	4.65	118	150	375	4.45
5	127	5.59	142	150	375	6.30
6	152	6.54	166	150	375	6.85
8	203	8.90	226	150	375	14.85
10	254	11.02	280	150	375	19.85

Note: The actual parameters are subject to the final atlas

LT904

150PSI SBR rubber suction hose

Tube：Black SBR rubber
Reinforcement：High tension textile cord
Cover： Black SBR rubber, wear resistant, oxidation resistant
Working pressure：Constant pressure 10Bar (150PSI)
Temperature range：-30°C (-22°F) to +80°C (+176°F)

Inquiry

LT905

high pressure suction hose

Tube：Black SBR/NBR hybrid rubber
Reinforcement： high tension textile rope
Cover： Black SBR rubber, wear resistant, oxidation resistant
Working pressure：Constant pressure 20Bar (300PSI)
Temperature range： -30°C (-22°F) to +80°C (+176°F)

Inquiry

LT902

SBR rubber suction hose

Tube ：black SBR rubber
Reinforcement ：high tension winding thread and high flexibility spiral steel wire
Cover ：Black SBR rubber, wear-resistant and oxidation-resistant
Working pressure ： constant pressure of 5Bar(75PSI)
Temperature range ： - 30 ℃ - 22 ° F) and + 80 ℃ (+ 176 ° F)

Inquiry

LT903

HG/T 3035 WATER DISCHARGE RUBBER HOSE

Hose Construction
Inner Tube：black EPDM or NR&SBR synthetic rubber (UPE layer is available)
Reinforcement：multi-spiraled high tensile synthetic fibers
Outer Layer：oil, abrasion resistant, anti-aging black, gray or blue NBR or PVC synthetic rubber
Temperature Range：-30°C~82°C (-22°F~180°F)
*The hose dimension, pressure and color can be customized based on the requirements
