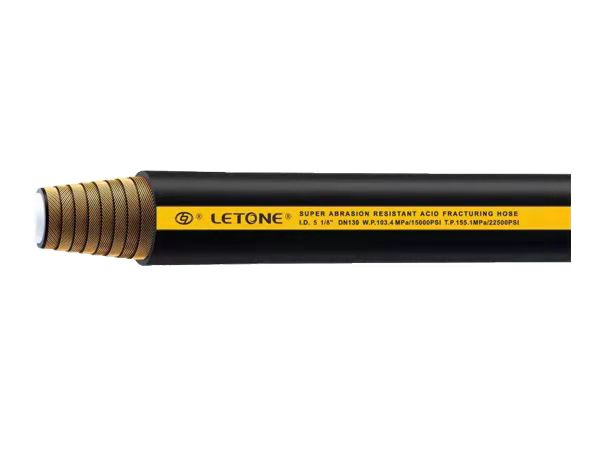

SUPER ABRASION RESISTANT FRAC HOSE -Letone

Parameter

Size	I.D.	O.D.	W.P.	P.P.	Max.S.L	Min.B.R.		W.T		Volume		Connector W.T		Connections
inch	mm	mm	psi	psi	m	m	ft	kg/m	lb/ft	bbl/min	m³/min	kg	lb/set	Connections
2"	32	81	15000	22500	92	1.2	3.94	11.5	7.7	4.5	0.72	30	66	2 "FIG1502 hammer connected by Wang or 2 1/16" 15KAPI flange 2 "FIG 1502 Hammer Union or 2 1/1615K APIfange
	44	95	15000	22500	92	1.4	4.59	18	12	9	1.46	53	117	3 "FIG1502 hammer connected by or 3 1/16" 15KAPI flange 3 "FIG 1502 Hammer Union or 3 1/1615KAPIflange
	51	107	15000	22500	92	1.4	4.59	20	13	12	1.91	55	121
2.5"	58	122	15000	22500	92	1.5	4.92	24	16	15	2.39	57	126
2.5"	64	126	15000	22500	92	1.5	4.92	27	18	18.5	2.90	58	128
3"	69	135	15000	22500	92	1.6	5.25	30	20	21.5	3.42	60	132
3"	76	145	15000	22500	92	1.6	5.25	35	24	26	4.13	65	143
4"	89	164	15000	22500	92	2.0	6.56	52	35	36	5.72	75	165	4 "FIG1502 hammer connected by Wang or 4 1/16" 15KAPI flange 4 "FIG 1502 Hammer Union or 4 1/16" 15KAPIfang
4"	102	179	15000	22500	92	2.0	6.56	60	40	47	7.47	85	187
5"	120	208	15000	22500	92	2.1	6.89	80	54	65	10.34	343	756	5 1/8 "15KAPI flange connection 5 1/815KAPIfange
5"	127	216	15000	22500	92	2.1	6.89	86	58	73	11.61	348	767	5 1/8 "15KAPI flange connection 5 1/815KAPIfange
5.5"	140	243	15000	22500	92	2.2	7.22	110	74	88.5	14.07	560	1235	7 1/16 "15KAPI flange connection 7 1/16 * 15KAPIfange
6"	152	255	15000	22500	92	2.3	7.54	125	84	104.5	16.62	680	1499	7 1/16 "15KAPI flange connection 7 1/16 * 15KAPIfange
2"	51	112	20000	30000	92	1.5	4.92	26	17	12	1.91	65	143	2 "FIG2002 Hammer Hammer Connection by Wang or 3 1/16" 20KAPI Flange 2 "FIG 2002 Hammer Union or 3 1/16" 20KAPIfang
2.5"	64	133	20000	30000	92	1.6	5.25	36	24	18.5	2.90	78	172	3 "FIG2002 hammering due to or 3 1/16" 20KAPI flange connection 3 "EIG2002HammerUnion or 3 1/1620KAPIflange
3"	76	159	20000	30000	92	1.9	6.23	57	38	26	4.13	98	216	3 "FIG2002 Hammer Union or 3 1/16" 20KAPI Flange Connection 3 "FIG 2002 Hammer Union or 3 1/16" 20KAPIflange
4"	102	202	20000	30000	92	2.1	6.89	94	63	47	7.47	400	882	4 1/16 "20KAPI flange connection 4 1/1620KAPIfange
5"	127	230	20000	30000	92	2.3	7.54	111	75	73	11.61	850	1874	7 1/16 "20KAPI flange connection 7 1/1620KAPIfange

Note: The actual parameters are subject to the final atlas

LT303

API 16D——BOP Control Hose

Tube：NBR
Reinforcement：4 layers of high tensile super flexible spiral steel wire
Cover：high temperature and fire resistant synthetic rubber
Protective Layer：stainless steel armor
Temperature Range：-40°C~+100°C (-40°F~+212°F) Fire resistance meets API Spec. 16D, 704°CX5min
Standard：API Spec. 16D | Lloyds

Inquiry

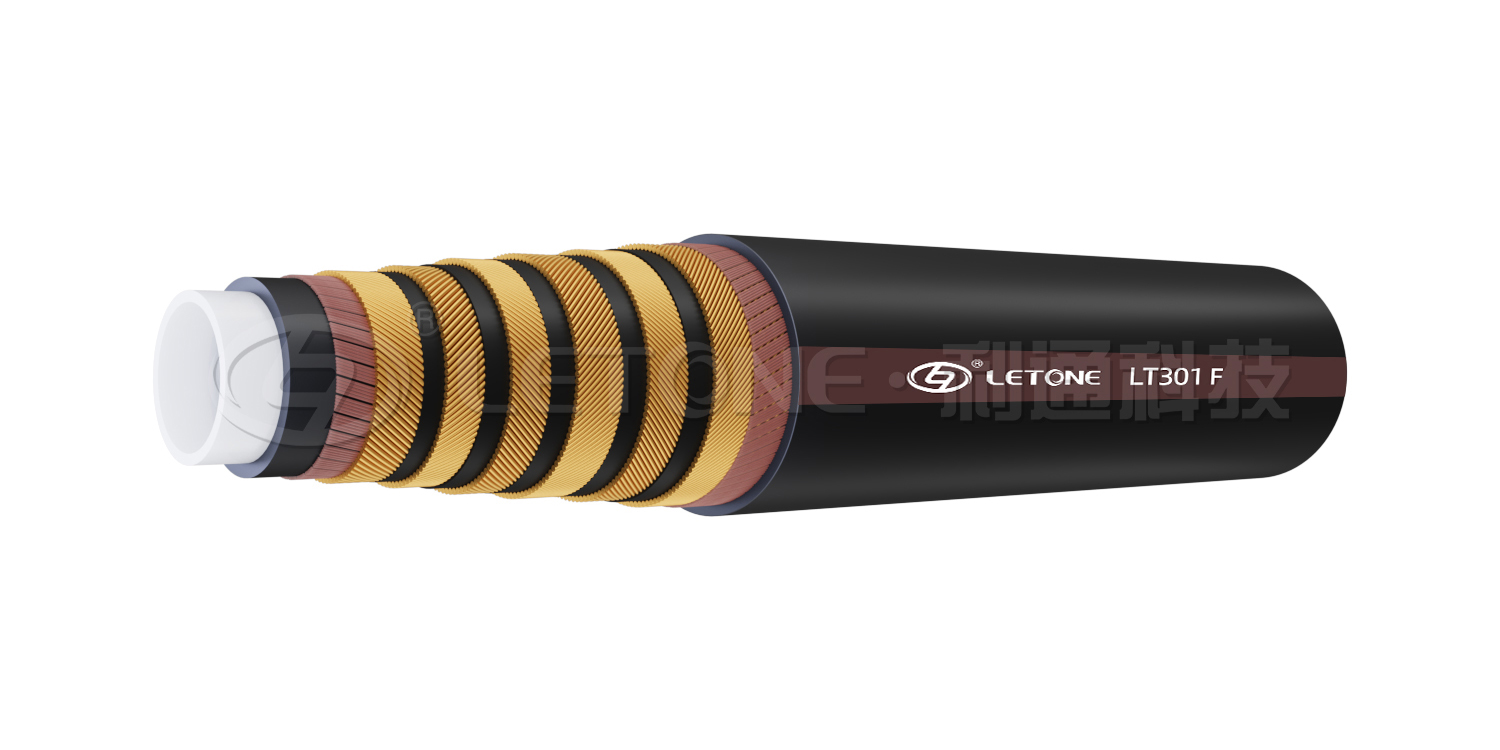

LT301 F

SUPER ABRASION RESISTANT FRAC HOSE

Inner Tube：UPE and sythentic rubber
Reinforcement：multi-spiraled high tensile super flexible steel wire
Outer Laver: abrasion and weather resistant synthetic rubber
Temperature Range:-29°C~+100°C(-20°F~+212°)
Connector: integral union ,integralflange, or other connector types
Max Single Length: 92m

Inquiry

LT301

API 7K——High Pressure Cementing Hose

Tube Type：full flow
Reinforcement：many layers of high tensile super flexible spiral steel wire or steel cable
Outer Layer：abrasionand weather resistant synthetic rubber
Temperature range：-20℃~+121℃（-4℉~+250℉）
Standard：API Spec. 7K FSL0 | ABS
Connectors：integral union or integral flange

Inquiry

LT302

API 16C——Flexible Choke And Kill Hose

Tube：HNBR
Reinforcement：many layers of high tensile super flexible spiral steel wire or steel cable
Cover：high temperature and fire resistant synthetic rubber (resistant to 704 °C open fire for 30 minutes)
Protective Layer：stainless steel armor
Temperature Range：-29℃~+121℃（-20℉~+250℉）
Standard：API Spec. 16C FSL0 FSL1 FSL2 FSL3 | ABS

Inquiry
