LT303

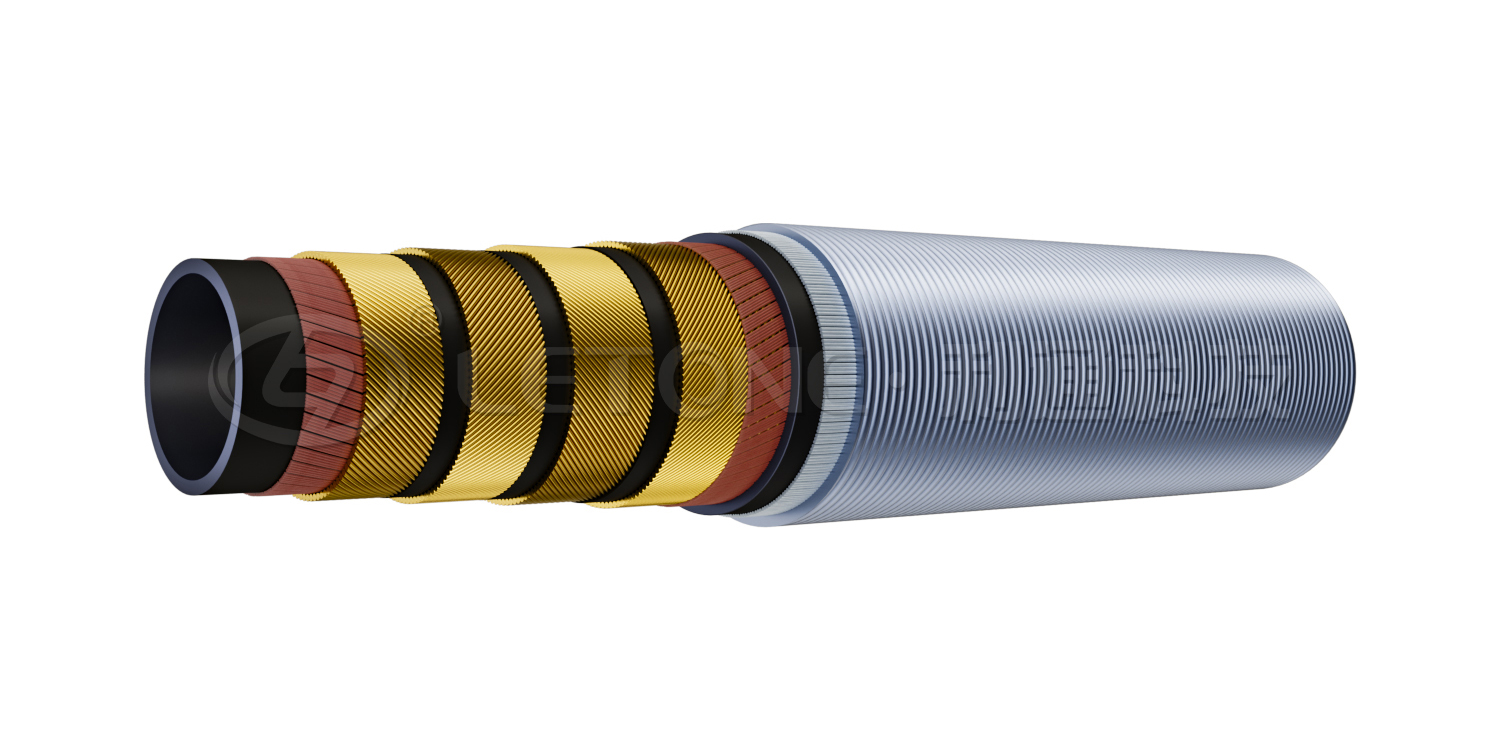

API 16D——BOP Control Hose
Application:hydraulic control line for remotely control the blowout preventer (BOP) at high pressure

Tube:NBR
Reinforcement:4 layers of high tensile super flexible spiral steel wire
Cover:high temperature and fire resistant synthetic rubber
Protective Layer:stainless steel armor
Temperature Range:-40°C~+100°C (-40°F~+212°F) Fire resistance meets API Spec. 16D, 704°CX5min
Standard:API Spec. 16D | Lloyds
API 16D——BOP Control Hose
Parameter
I.D. W.P. P.P. Min. B.P. Min. B.R. Weight
(in.) (psi) (psi) (psi) (mm) (kg/m)
1/2 5000 7500 15000 300 0.9
3/4 5000 7500 15000 400 1.5
1 5000 7500 15000 500 2.1
1 1/2 5000 7500 15000 700 3.6
2 5000 7500 15000 800 5

Note: The actual parameters are subject to the final atlas
