STEEL WIRE BRAID HYDRAULIC HOSE
Lighter and more flexible with longer service life, Letone steel wire braid hydraulic hose has fully meets the needs of high-end hose users like heavy machinery and equipment manufactures.Letone hydraulic hose is guaranteed for use in the construcion, mining, agriculture, oil & gas and other industries with high performance.
-
LT SA6992Super Artery EXCEEDS ISO18752-AC/BC/CC
Inner rubber layer：Nitrile or neoprene synthetic rubber, suitable for biodegradable hydraulic oil
Reinforcement layer：one or two layers of steel wire weaving (1/4" ‒3/8"), pulse ≥300,000 times four layers of steel wire winding (1/2"‒2"), pulse ≥1 million times
Outer layer：standard: no-skive abrasion, weather resistant synthetic rubber.
AR cover: no-skive, highly abrasion, weather resistant synthetic rubber.
SAR cover: super abrasion, weather resistant UHMWPE.
Temperature range：-40℃ to +100℃ (-40℉ to +212℉) -40℃ to +121℃ (-40℉ to +250℉) -

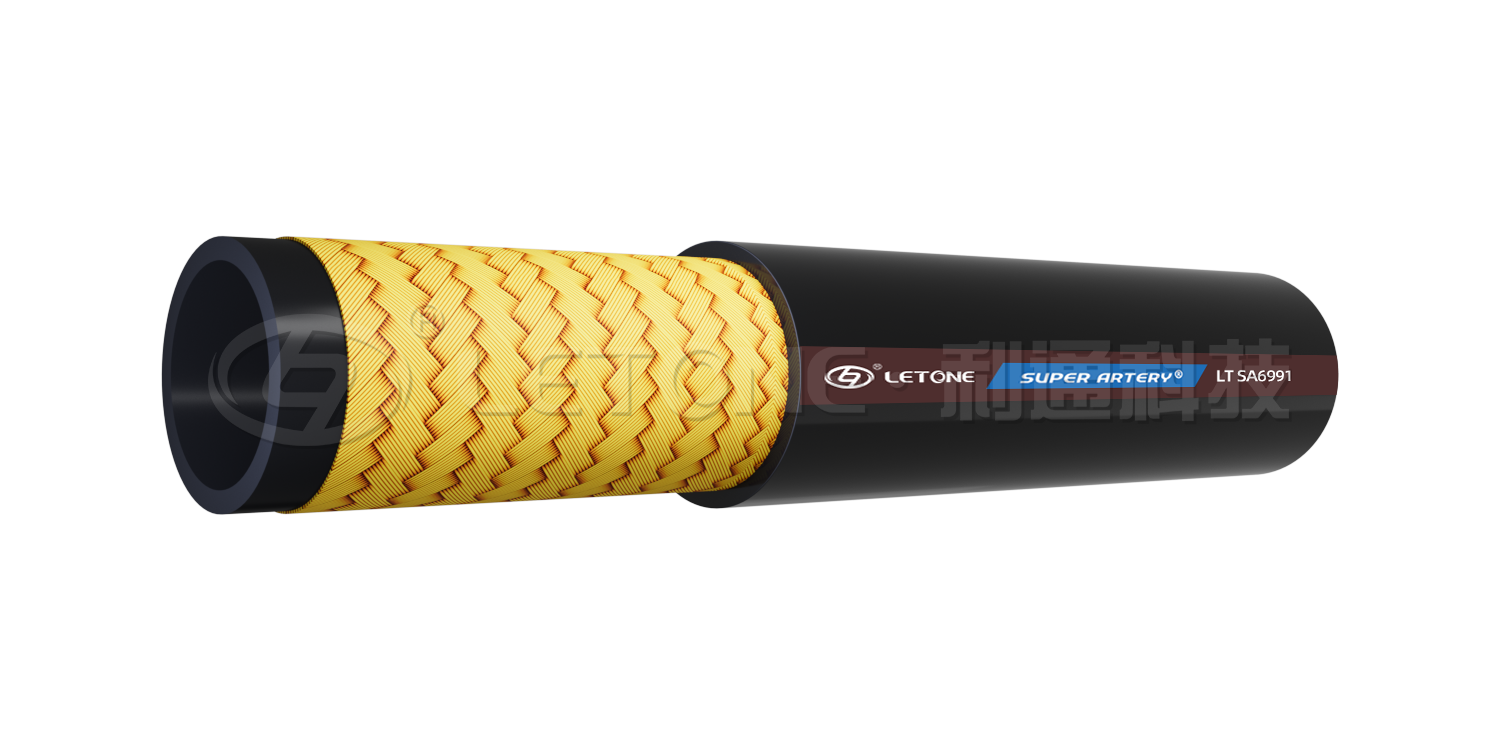

LT SA6991Super Artery EXCEEDS ISO18752-BC/CC
Inner rubber layer：Nitrile or neoprene synthetic rubber, suitable for biodegradable hydraulic oil
Reinforcement layer：one or two layers of steel wire weaving (1/2" ‒3/4"), pulse ≥ 300,000 times, four layers of steel wire winding (1" ‒ 2"), pulse ≥ 1 million times
Outer layer：standard: no-skive abrasion, weather resistant synthetic rubber.
AR cover: no-skive, highly abrasion, weather resistant synthetic rubber.
SAR cover: super abrasion, weather resistant UHMWPE.
Temperature range：-40℃ to +100℃ (-40℉ to +212℉) -40℃ to +121℃ (-40℉ to +250℉) -

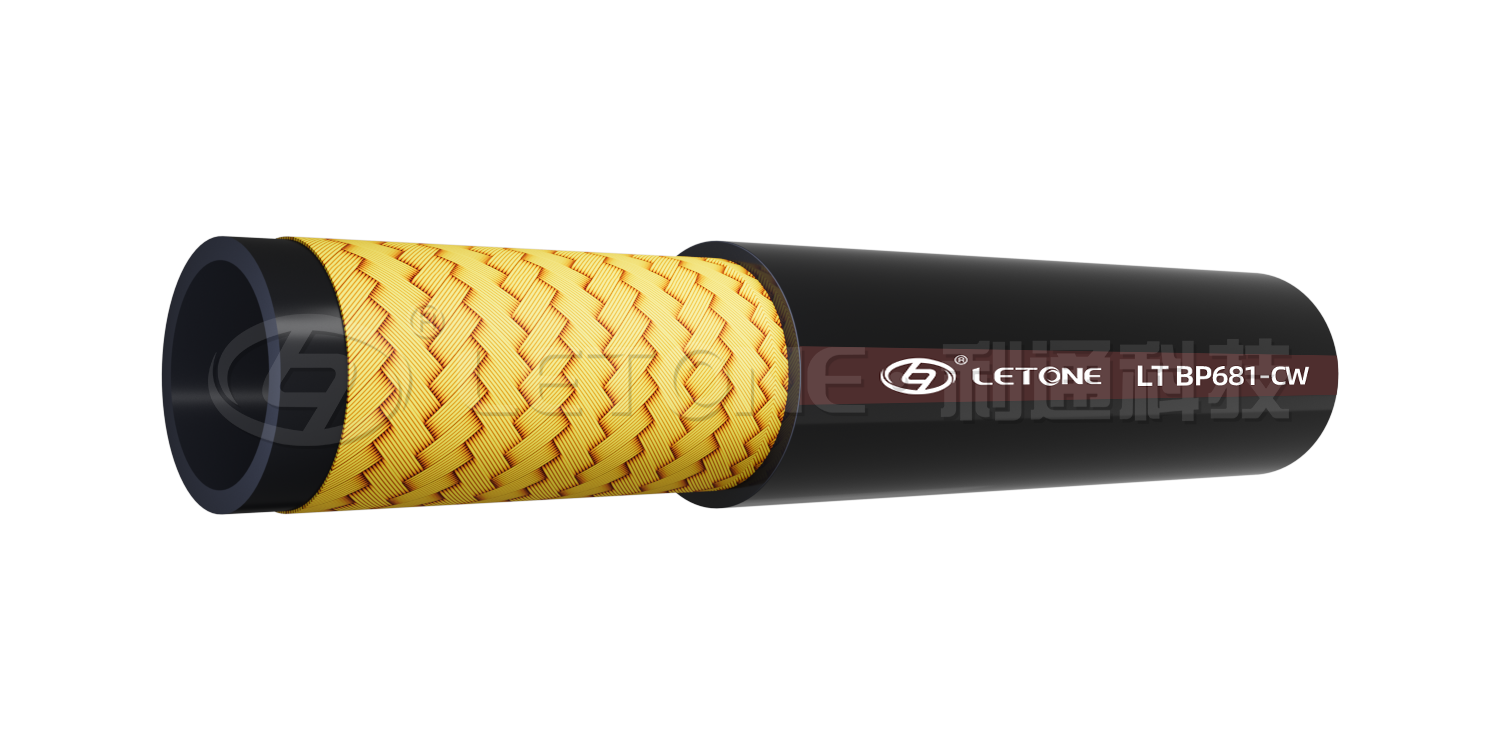

LTBP681-CWCar wash hose
Inner Layer：Synthetic rubber
Reinforcement：One or two layers of steel wire braiding
Outer Layer：Wear resistant synthetic rubber or super wear resistant UPE
Temperaturn Range：- 40 ℃ ~ + 100 ℃ (- 40 ℉ ~ + 212 ℉) -
LT6991S018752-AC/BC ARTERY WIRE BRAID HYDRAULIC HOSE
Inner Tube:NBR synthetic rubber
Reinforcement:one or two braids of high tensile super flexible steel wire,one braid >300,000 impulse cycles,two braids >500,000impulse cycles
Outer Layer:skiving-free oil, abrasion, and weather resistant synthetic rubber.
Temperature Range:-40C~+100C(-40F-+212F)-55C +100C(67+212F）. -
LTSA699ExceedsIS018752-BC SUPER ARTERY WIRE BRAID HYDRAULIC HOSE
Inner Layer： CR/NBR synthetic rubber
Reinforcement： one or two braids of high tensile super flexible steel wireone braid >300,000 impulse cycles, two braids >500,000 impulse cycles
Outer Layer： skiving-free oil, abrasion, and weather resistant synthetic rubber
Temperature Range：-40 C~+121C(-40F~+250F);-55C+100C(-67F~+212F） -
LT692Ultra-High Temperature and Heat Resistant Oil Wire Braided Hydraulic Hose
Tube：special compound rubber with good ultra-high temperature resistance and good oil resistance
Reinforcement：steel wire braid
Cover：high-temperature resistant and has excellent weather resistance good special rubber compound
Temperature range： -40 ℃ ~ + 208 ℃ -
LT691Ultra-Low Temperature Steel Wire Braided Hydraulic Rubber Hose
Tube：Ultra-low-temperature resistance especially good, has good oil resistance special rubber compound
Reinforcement：steel wire braid
Cover：special compound rubber with good weather resistance
Temperature range： -55 ℃ ~ + 100 ℃ -
LT688SAE 100R17 WIRE BRAID HYDRAULIC HOSE
InnerTube：black oilresistantsyntheticrubber
Reinforcement：one or two braids ofhigh tensile super flexible steel wire.
Outer Layer：black oil, weather, and abrasion resistantsynthetic rubber.
Temperature Range：-40-+100C(-40F-+212F). -
LT687SAE 100R16 WIRE BRAID HYDRAULIC HOSE
Inner Tube：blackhot oil resistant synthetic rubber
Reinforcement：one or two braids ofhigh tensile super flexible steelwire
Outer Layer：black oil, weather, and abrasion resistantsynthetic rubber
Temperature Range：-40C-+121C(-40-+250F) -
LT686MT/T98 WIRE BRAID HYDRAULIC HOSE FOR MINING
Inner Tube：black oil resistantsynthetic rubber
Reinforcement：one or two braids ofhigh tensile super flexible steel wire
Outer Layer：black oil, weather, and abrasion resistant synthetic rubber
Temperature Range：-40C-+100C(-40F-+212F) -

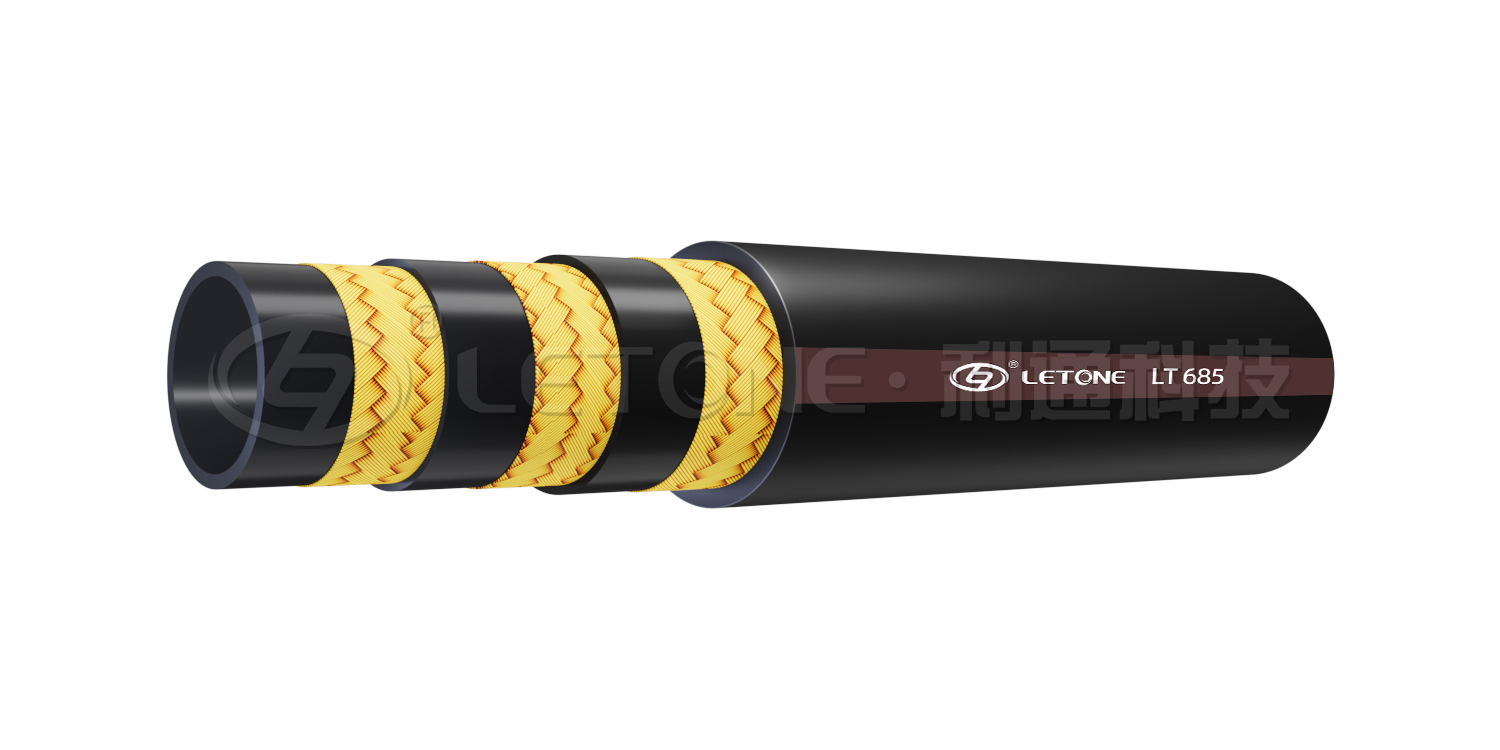

LT685MT/T98 WIRE BRAID HYDRAULIC HOSE FOR MINING
Inner Laver：black oil resistantsynthetic rubber
Reinforcement：one, two, or three braids of high tensile super flexible steel wire
outerLayer：black oil, weather, and abrasion resistantsynthetic rubber
Temperature Range：-40-+100C(40F-+212F) -
LT684Heat Resistant oil wire braided rubber hose
Tube：black heat-resistant oil synthetic rubber
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range： -40 ° C ~ + 135 ° C (-40 ° F ~ + 275 ° F) -

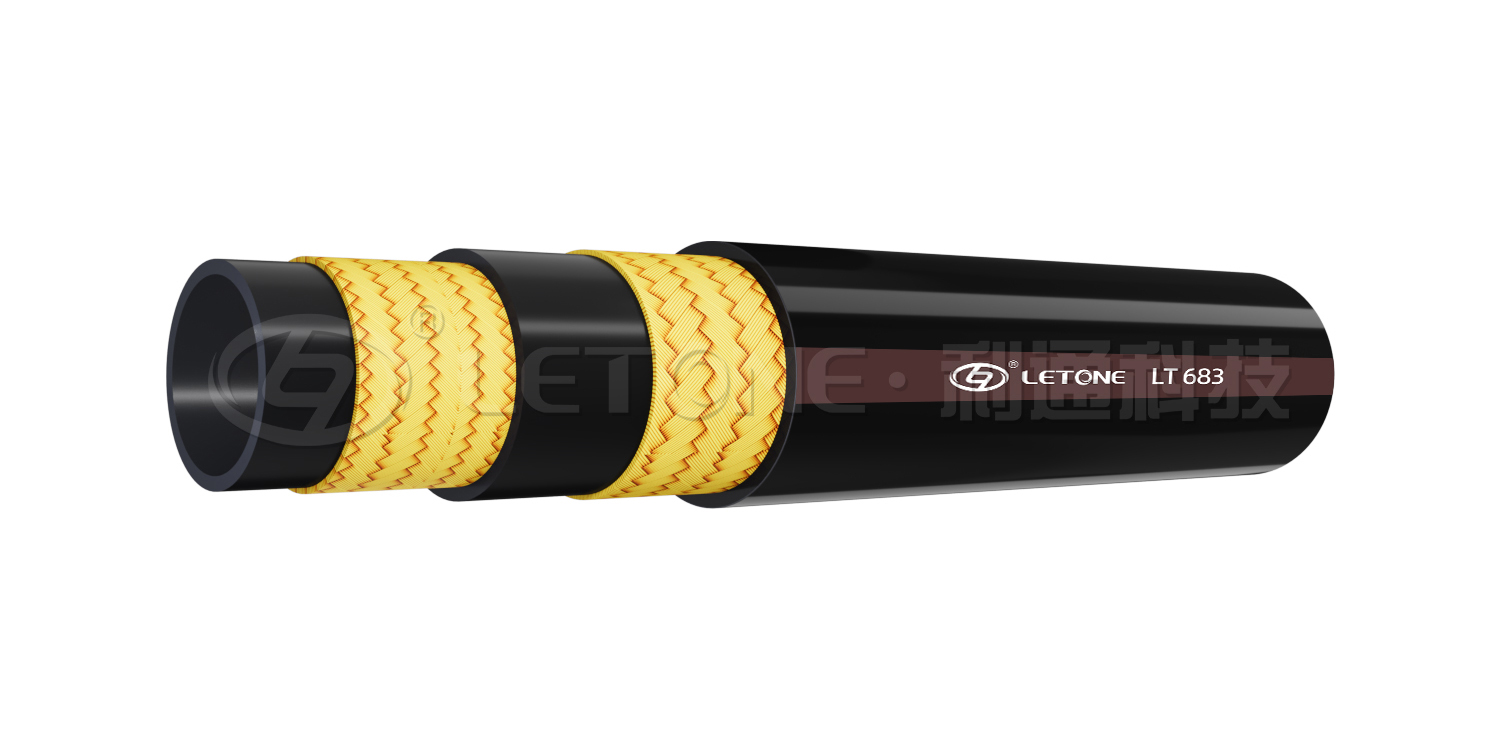

LT683EN857 SC Wire Braid Hydraulic Rubber Hose
Inner Tube：black oil resistantsyntheticrubber
Reinforcement：one or two braids of high tensile super flexible steel wire
Outer Layer：black oil, weather, and abrasion resistantsyntheticrubber
Temperature Range：-40C-+100C(-40F-+212F) -
LT682SAE 100RATIEN853 ST WIRE BRAID HYDRAULIC HOSE
InnerTube：black oil resistantsyntheticrubber
Reinforcement：one or two braids ofhigh tensile super flexible steelwire
Outer Layer：black oil, weather, and abrasion resistantsynthetic rubber
Temperature Range：-40C-+100C(-40F-+212F) -
LT681SAE 100RAT|EN853 SN|DNV WIRE BRAID HYDRAULIC HOSE
Inner Tube：black oil resistantsyntheticrubber
Reinforcement：one or two braids of high tensile super flexible steel wire
Outer Layer：black oil, weather, and abrasion resistantsynthetic rubber
Temperature Range：-40C-+100C(-40F-+212F) -
LT689SAE 100R19 COMPACTWIRE BRAID HYDRAULIC HOSE
InnerTube:blackoilresistantsyntheticrubber.
Reinforcement:one or two braids of high tensile super flexible steel wire.
Outer Layer:black oil, weather, and abrasion resistantsynthetic rubber.
Temperature Range:-40C-+100C(-40F-+212F)
