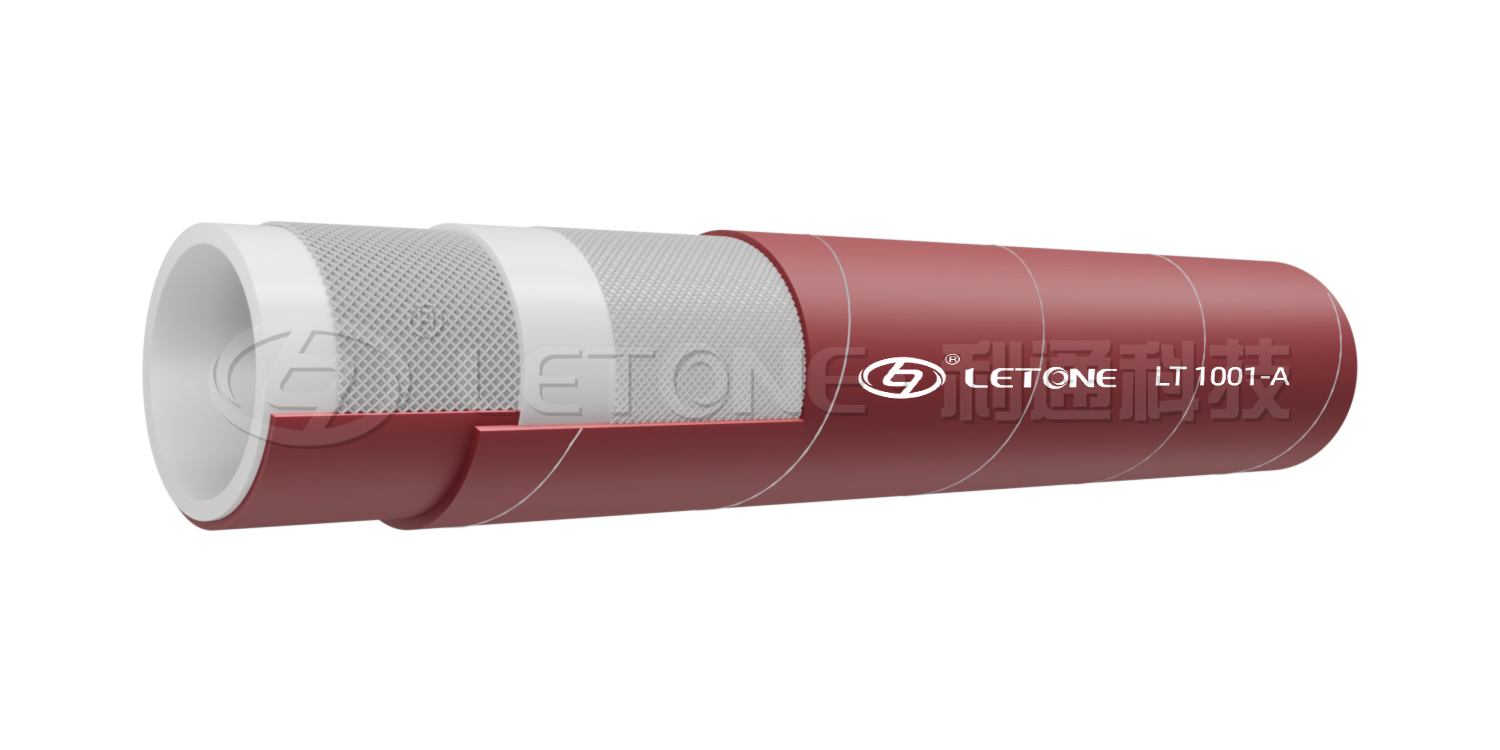

225 PSI Premium PaperMill/ Creamery Wash DownHose

LT1001-A/LT1001-B

225 PSI Premium PaperMill/ Creamery Wash DownHose - No Nozzle

Applications：For general wash down service, using hot water or low pressure saturated steam in processing plants and facilities and in food and dairy plants

Tube：White EPDM

Reinforcement：High tensile textile cords

Cover：Red EPDM-heat, abrasion and ozone resistant. White EPDM-heat, abrasion and ozone resistant

Working Pressure：Constant Pressure-15 Bar (225 PSI)

Temperature Range：-40° F (-40° C) to 356° F(+180° C)

Online

Hotline ：

+86-0371-55157686

225 PSI Premium PaperMill/ Creamery Wash DownHose - No Nozzle

Parameter

Series	I.D. (in.)	I.D. (mm)	O.D. (in.)	O.D. (mm)	Max.W.P.(psi)	W. （kg/m）
LT1001-A-050	1/2	13	0.91	23	225	0.40
LT1001-A-062	5/8	16	1.02	26	225	0.46
LT1001-A-075	3/4	19	1.22	31	225	0.65
LT1001-A-100	1	25	1.46	37	225	0.80
LT1001-B-075	3/4	19	1.22	31	225	0.65
LT1001-B-100	1	25	1.46	37	225	0.80

Note: The actual parameters are subject to the final atlas

LT1005-A/LT1005-B

270 PSI Chlorobutyl Braided Steam Hose

Tube：Black extruded CIIR-heat-resistant
Reinforcement：High tensile steel wire braids
Cover：Red or black EPDM-heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting
Working Pressure：Constant Pressure-18 Bar (270 PSI)
Temperature Range：-40℃（-40°F）to+180℃（+356°F）

Inquiry

LT1001-A/LT1001-B

225 PSI Premium PaperMill/ Creamery Wash DownHose - No Nozzle

Tube：White EPDM
Reinforcement：High tensile textile cords
Cover：Red EPDM-heat, abrasion and ozone resistant. White EPDM-heat, abrasion and ozone resistant
Working Pressure：Constant Pressure-15 Bar (225 PSI)
Temperature Range：-40° F (-40° C) to 356° F(+180° C)

Inquiry

LT1002-A/LT1002-B

150 PSI Premium Paper Mill/Creamery Wash Down Hose With Tapered Nozzle

Tube：White EPDM
Reinforcement：High tensile textile cords
Cover：White or green EPDM-heat, abrasion and ozone resistant
Working Pressure：Constant Pressure-10 Bar (150 PSI)
Temperature Range：-40° F(-40° C) to 356° F(+180° C)

Inquiry

LT1003

75 PSI Radiator Hose

Tube：Black EPDM
Reinforcement：High tensile textile cords
Cover：Black EPDM-heat, abrasion and ozone resistant
Working Pressure：5 Bar (75 PSI)
Temperature Range：-40° F (-40° C) to 356° F(+180° C)
