270 PSI Chlorobutyl Braided Steam Hose -Letone

LT1005-A/LT1005-B

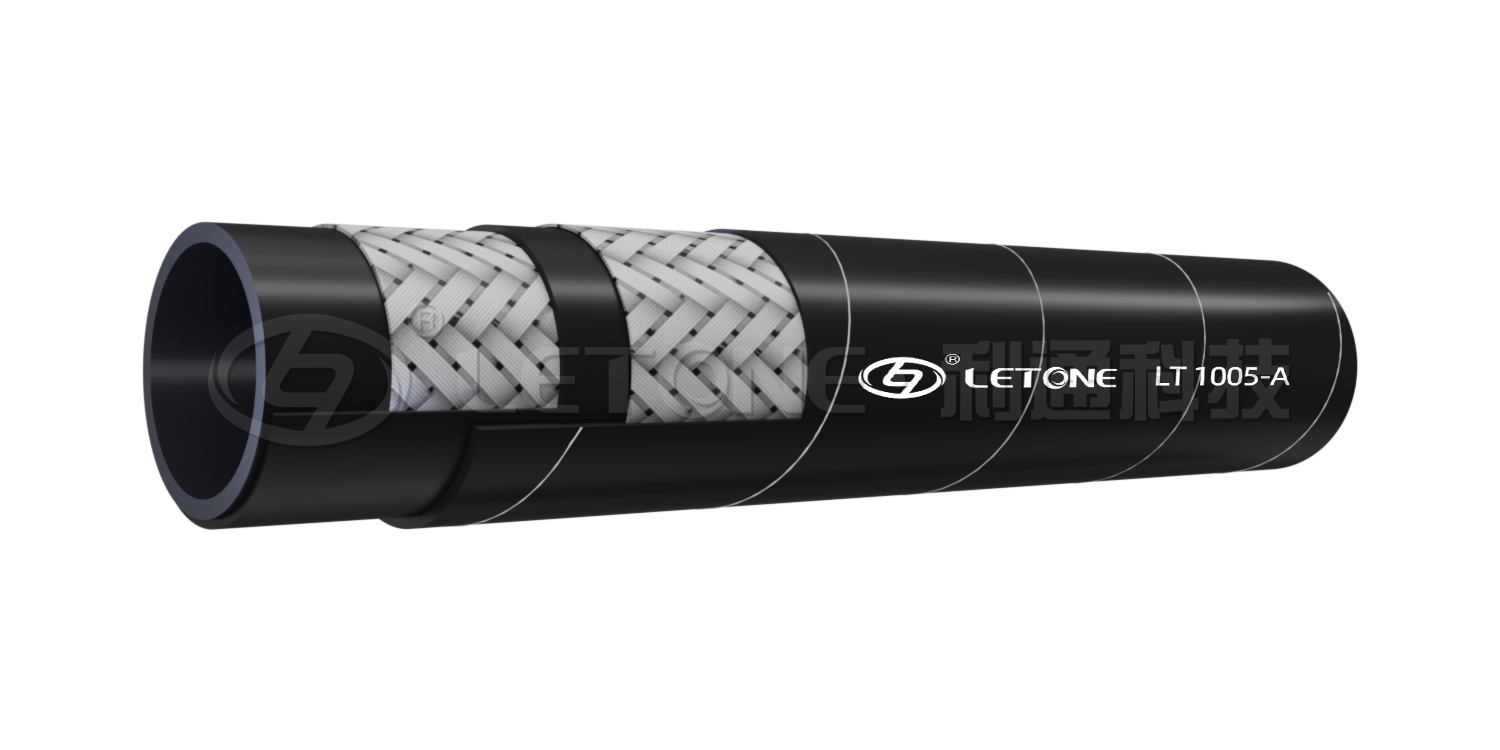

270 PSI Chlorobutyl Braided Steam Hose

Applications：The transfer of saturated and superheated steam up to 270 PSI and max 356° F (+180° C) in shipyards, chemical plants and industrial applications

Tube：Black extruded CIIR-heat-resistant

Reinforcement：High tensile steel wire braids

Cover：Red or black EPDM-heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting

Working Pressure：Constant Pressure-18 Bar (270 PSI)

Temperature Range：-40℃（-40°F）to+180℃（+356°F）

Online

Hotline ：

+86-0371-55157686

Parameter

Series	I.D. (in.)	I.D. (mm)	O.D. (in.)	O.D. (mm)	Max.W.P. (psi)	Min.B.R.	W. （kg/m）
LT1005A/B-050	1/2	13	0.91	23	270	5	0.43
LT1005A/B-075	3/4	19	1.22	31	270	71/2	0.79
LT1005A/B-100	1	25	1.50	38	270	10	0.92
LT1005A/B-125	11/4	32	1.81	46	270	121/2	1.32
LT1005A/B-150	11/2	38	2.05	52	270	15	1.44
LT1005A/B-200	2	51	2.64	67	270	20	2.14

Note: The actual parameters are subject to the final atlas

LT1005-A/LT1005-B

270 PSI Chlorobutyl Braided Steam Hose

Tube：Black extruded CIIR-heat-resistant
Reinforcement：High tensile steel wire braids
Cover：Red or black EPDM-heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting
Working Pressure：Constant Pressure-18 Bar (270 PSI)
Temperature Range：-40℃（-40°F）to+180℃（+356°F）

Inquiry

LT1001-A/LT1001-B

225 PSI Premium PaperMill/ Creamery Wash DownHose - No Nozzle

Tube：White EPDM
Reinforcement：High tensile textile cords
Cover：Red EPDM-heat, abrasion and ozone resistant. White EPDM-heat, abrasion and ozone resistant
Working Pressure：Constant Pressure-15 Bar (225 PSI)
Temperature Range：-40° F (-40° C) to 356° F(+180° C)

Inquiry

LT1002-A/LT1002-B

150 PSI Premium Paper Mill/Creamery Wash Down Hose With Tapered Nozzle

Tube：White EPDM
Reinforcement：High tensile textile cords
Cover：White or green EPDM-heat, abrasion and ozone resistant
Working Pressure：Constant Pressure-10 Bar (150 PSI)
Temperature Range：-40° F(-40° C) to 356° F(+180° C)

Inquiry

LT1003

75 PSI Radiator Hose

Tube：Black EPDM
Reinforcement：High tensile textile cords
Cover：Black EPDM-heat, abrasion and ozone resistant
Working Pressure：5 Bar (75 PSI)
Temperature Range：-40° F (-40° C) to 356° F(+180° C)

Inquiry
