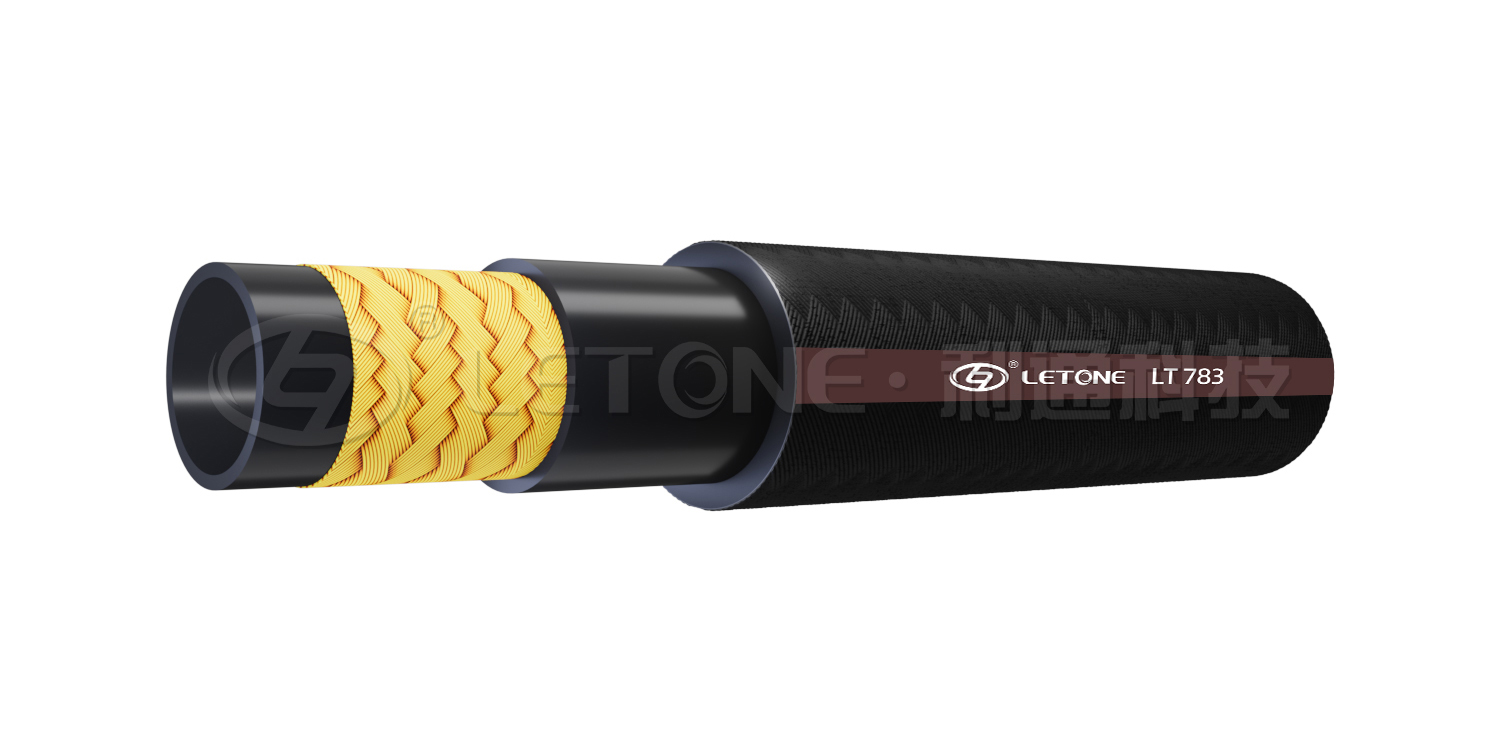

LT783
SAE 100R5 HYDRAULIC HOSE
Applications:Suitable to convey medium like petroleum basedhydraulic oil,lubrication oil, water, and air.

Tube:Black oil-resistant synthetic rubber
Reinforcement:One braid of high tensile steel wire
Cover:Textile braid impregnated with synthetic rubber
Temperature Range:-40 °C to + 100 °C (-40 °F to + 212 °F)
SAE 100R5 HYDRAULIC HOSE
Parameter
SIZE(Dash) SIZE(in.) I.D. (mm) O.D. (mm) Max.W.P. Min.B.P. P.P Min.B.R.* W.T
Min Max Min Max (MPa) (MPa) (MPa) (mm) kg/m
-3 3/16 4.6 5.5 12.5 13.5 21 84 42 75 0.20
-4 1/4 6.1 7.2 14.1 15.1 21 84 42 85 0.25
-5 5/16 7.9 8.7 16.2 17.4 15.7 62.8 31.4 100 0.31
-6 3/8 10.3 11.1 18.4 19.6 14 56 28 115 0.36
-8 1/2 12.7 13.7 22.2 23.8 12.2 48.8 24.4 140 0.45
-10 5/8 15.9 17.0 26.2 27.8 10.5 42 21 165 0.60
-14 7/8 22.2 23.3 30.0 38.8 5.6 22.4 11.2 185 0.70
-18 1 1/8 28.6 29.8 36.3 38.7 4.3 17.2 8.6 230 0.85
-22 1 3/8 34.9 36.1 42.8 45.2 3.5 14.0 7 265 1.00
-28 1 3/4 46.0 47.2 54.3 56.7 2.4 9.6 4.8 335 1.40
-38 2 3/8 60.3 61.9 70.8 73.2 2.4 9.6 4.8 610 2.16
-48 3 76.2 77.8 88.3 90.7 1.4 5.6 2.8 840 2.84
The items added with * are for reference only, and the details are subject to the hose

Note: The actual parameters are subject to the final atlas
