WIRE BRAID STEAM HOSE -Letone

LT786

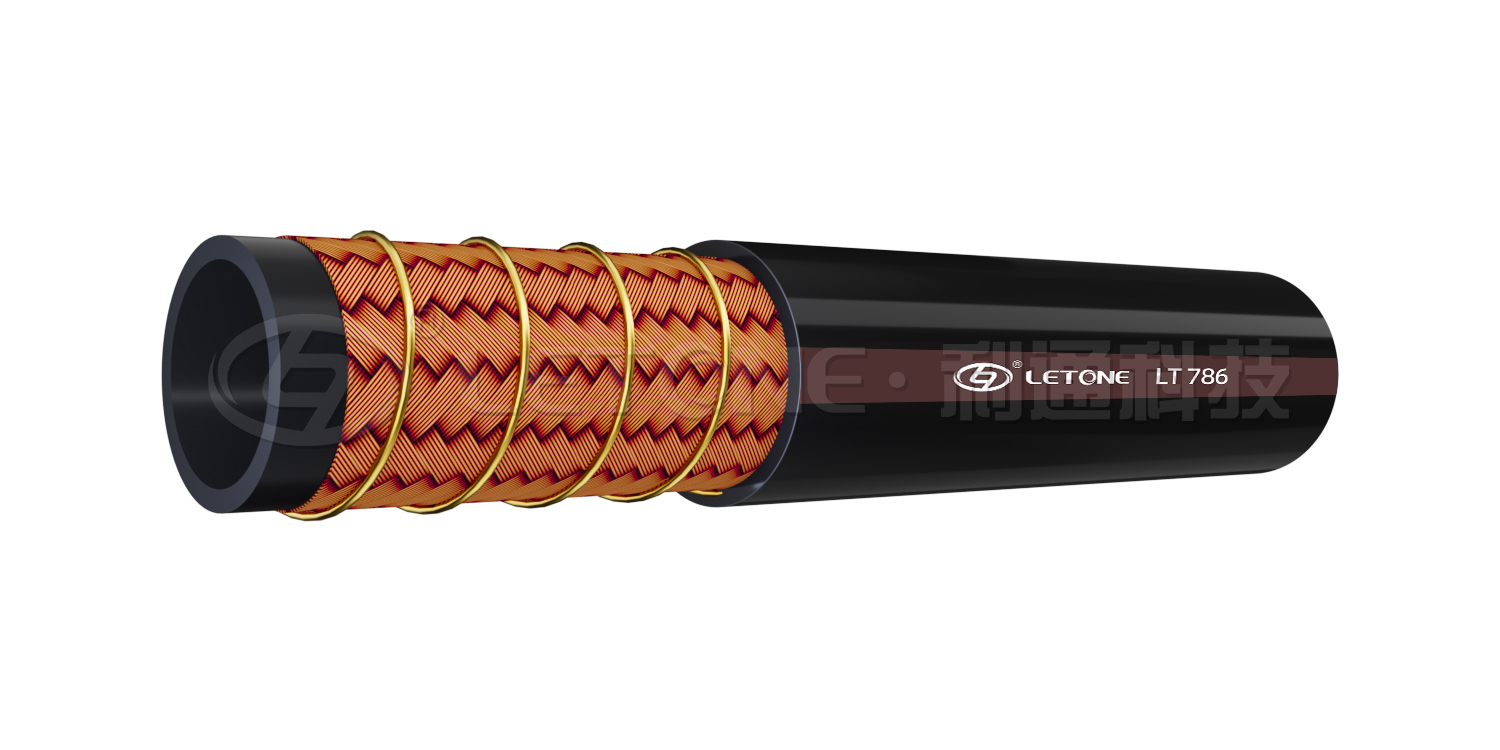

WIRE BRAID STEAM HOSE

Applications：Suitable for continuous delivery of saturated steam and hot water at temperatures below 150 °C or intermittent delivery at temperatures below 160 °C.(Overheated steam will reduce the service life of the product; the vacuum caused by the closed hose assembly ends will cause "popcorn phenomenon" or delamination of the inner glue)

Tube：Black heat-resistant synthetic rubber

Reinforcement：One or two layers of braided fiber or steel wire

Cover：Heat-resistant, weather-resistant, wear-resistant synthetic red rubber, steam pipe body equidistant puncture

Temperature Range：-40℃ to +150℃ (-13℉ to +302℉)

Online

Hotline ：

+86-0371-55157686

Parameter

SIZE(Dash)	SIZE(in.)	I.D. (mm)		O.D.	Max.W.P.	Min.B.P.
SIZE(Dash)	SIZE(in.)	Min	Max	(mm)	(MPa)	(MPa)
-6	3/8—1	9.8	10.8	22	0.4	3
-8	1/2—1	12.7	13.7	24	0.4	3
-10	5/8—1	15.5	16.5	27	0.4	3
-12	3/4—1	18.5	20.0	30	0.4	3
-16	1—1	24.5	26.0	38	0.4	3
-20	1 1/4—1	31.5	33.0	46	0.4	3
-24	1 1/2—1	37.5	39.0	51	0.4	3
-32	2—1	50.0	52.0	64	0.4	3
-6	3/8—2	9.8	10.8	23	0.4	3
-8	1/2—2	12.7	13.7	27	0.4	6
-10	5/8—2	15.5	16.5	29	0.4	6
-12	3/4—2	18.5	20.0	32	0.4	6
-16	1—2	24.5	26.0	39	0.4	6
-20	1 1/4—2	31.5	33.0	47	0.4	6
-24	1 1/2—2	37.5	38.0	52	0.4	6
-32	2—2	50.0	52.0	89	0.4	6

Note: The actual parameters are subject to the final atlas

LT788

SAND BLASTLNG HOSE

Tube：Black abrasion resistant synthetic rubber ( UPE layer is available)
Reinforcement：Braided fiber or steel wire
Cover：Black weather and abrasion resistant synthetic rubber
Temperature range：-40 °C to +70 °C (-40 °F to +158 ° F)

Inquiry

LT786

WIRE BRAID STEAM HOSE

Tube：Black heat-resistant synthetic rubber
Reinforcement：One or two layers of braided fiber or steel wire
Cover：Heat-resistant, weather-resistant, wear-resistant synthetic red rubber, steam pipe body equidistant puncture
Temperature Range：-40℃ to +150℃ (-13℉ to +302℉)

Inquiry

LT789

AUTOMOTIVE A/C HOSE SERIES

Tube：A nylon isolation layer and a layer of black synthetic rubber
Reinforcement：A layer of fiber weave
Cover：Black heat-resistant, ozone-resistant, wear-resistant synthetic rubber
Temperature Range：-40℃ to +125℃ (-40℉ to +257℉)

Inquiry

LT784

SAE100R6 FIBER BRAID HOSE

Tube：Black oil-resistant synthetic rubber
Reinforcement：One braid oftextile
Cover：Black oil, weather, and abrasion resistant synthetic rubber
Temperature Range：-40℃ to +100℃ (-40℉ to +212℉)

Inquiry
