Coolant Hose -Letone

Parameter

SIZE	SIZE	I.DI.D		O.DO.D		Max.W.P	Max.W.PMin.B.P	Min.B.R	>W.T
SIZE	SIZE	Min	Max	Min	Max	Max.W.P	Max.W.PMin.B.P	Min.B.R	>W.T
DASH	IN	Min	Max	Min	Max	MPa	MPa	mm	kg/m
-4	1/4"	6.1	7.2	11.6	12.6	1.38	5.5	24.5	0.13
-5	5/16"	7.7	8.3	14.5	15.5	1.38	5.5	31.5	0.18
-6	3/8"	9.5	10.3	15.4	16.4	1.38	5.5	37	0.19
-8	1/2"	12.5	13.3	19.7	20.7	1	4	69	0.25
-10	5/8"	15.8	16.6	23.5	23.7	1	4	88	0.30
-12	3/4"	18.8	19.6	26.4	27.6	1	4	113	0.35
-16	1"	25.2	26.2	34.4	33.6	1	4	143	0.52
-20	1-1/4"	31.8	32.8	43	44.6	1	4	195	0.70

Note: The actual parameters are subject to the final atlas

无标题文档

Product Description

Note style

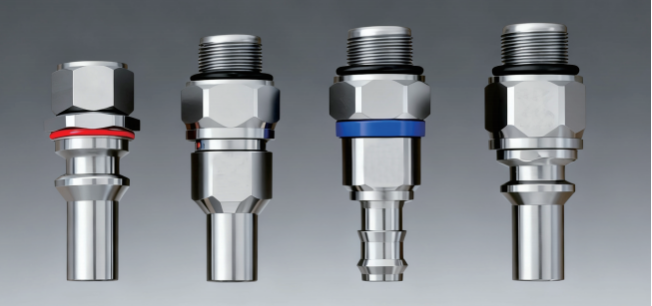

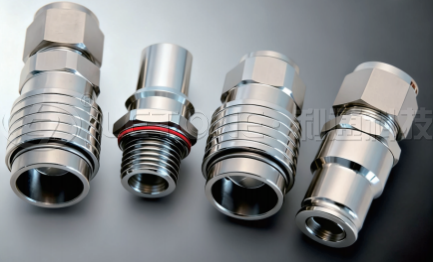

UNIVERSAL QUICK DISCONNECT COUPLING

Universal Quick Disconnect Coupling is a crucial component in the data center liquid cooling system . It is designed with a focus on secure and convenient connections, leak-proof design, high ﬂ ow rate, and resistance to mechanical stress, all of which are essential to meet the stringent requirements of data center liquid cooling systems . Universal Quick Disconnect Coupling is available in four speciﬁcations and two color options, meets OCP standards, and guarantees a 100% pass rate in helium leak detection tests .

UNIVERSAL QUICK DISCONNECT COUPLING (UQD）

UQDB	Seal Ring material	Thread/Size	A		B		ΦC		ΦD		S1Hexagonal
UQDB	EPDM	bsp	mm	in	mm	in	mm	in	mm	in	mm	in
UQD02	EPDM	1/4	46.2	1.82	19.0	0.75	15.5	0.61	23.0	0.91	14.0	0.55
UQD04	EPDM	3/8	49.5	1.95	23.7	0.93	9.00	0.36	24.6	0.97	18.0	0.71
UQD06	EPDM	1/2	61.1	2.41	25.8	1.02	24.0	0.94	31.7	1.25	22.0	0.87
UQD08	EPDM	5/8	68.4	2.69	39.0	1.54	30.0	1.18	35.0	1.38	27.0	1.06

UQDB	Thread/Size	Seal Ring material	ΦE		F		G		H		J		S2Hexagonal
UQDB	BSP	EPDM	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in
UQD02	1/8	EPDM	6.65	0.26	17.32	0.68	8.70	0.34	8.00	0.31	30.40	1.20	15.00	0.59
UQD04	3/8	EPDM	11.07	0.44	25.40	1.00	9.80	0.39	11.20	0.44	37.90	1.49	22.00	0.87
UQD06	3/8	EPDM	14.30	0.56	25.40	1.00	10.0	0.39	11.20	0.44	41.60	1.64	22.00	0.87
UQD08	1/2	EPDM	17.48	0.69	34.64	1.36	12.0	0.47	14.50	0.57	47.60	1.87	30.0	1.18

UQDB	Seal Ring material	Thread/Size	ΦE		F		G		H		J		S2Hexagonal
UQDB	EPDM	BSP	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in
UQD02	EPDM	7/16-20	6.65	0.26	16.17	0.64	8.70	0.34	9.10	0.36	29.8	1.15	14.00	0.55
UQD04	EPDM	9/16-18	11.07	0.44	19.63	0.77	9.80	0.39	9.90	0.39	37.9	1.49	17.00	0.67
UQD06	EPDM	2003/4/16	14.30	0.56	25.40	1.00	10.0	0.39	11.10	0.44	41.6	1.64	22.0	0.87
UQD08	EPDM	2007/8/14	17.48	0.69	31.18	1.23	12.0	0.47	12.70	0.50	41.6	1.87	27.0	1.06

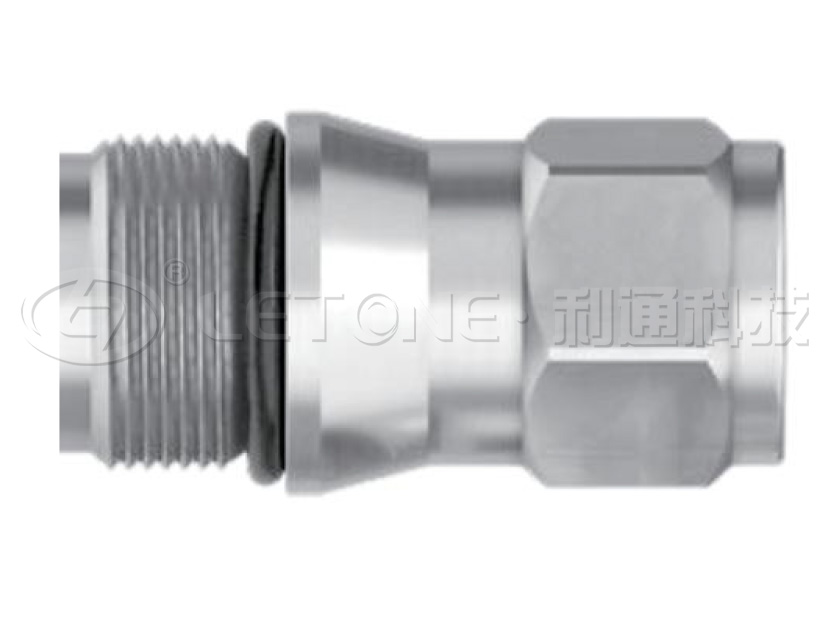

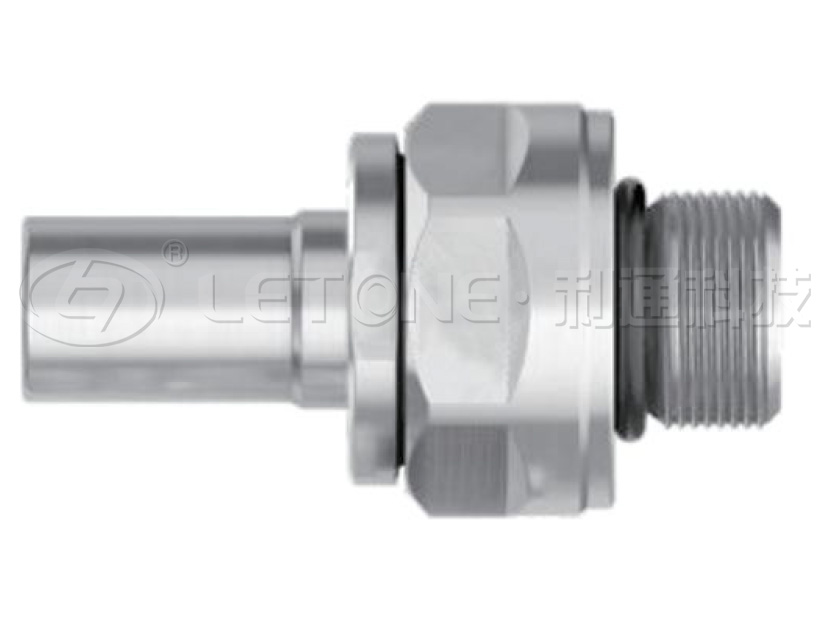

UNIVERSAL QUICK DISCONNECT COUPLING BLIND-MATE（UQDB）

UQDB	Thread/Size	Seal Ring material	A		B		ΦD		SHexagonal
UQDB	ORB	EPDM	mm	in	mm	in	mm	in	mm	in
UQD02	9/16-18	EPDM	33.6	1.32	23.5	0.93	21.0	0.83	16.0	0.63
UQD04	2003/4/16	EPDM	33.9	1.56	28.5	1.12	24.0	0.94	22.0	0.87
UQD06	2007/8/14	EPDM	44.6	1.76	32.0	1.26	29.0	1.14	27.0	1.06
UQD08	11/16-12	EPDM	54.6	2.15	39.5	1.56	37.0	1.46	32.0	1.26

UQDB	Thread/Size	Seal Ring material	A		B		ΦD		SHexagonal
UQDB	ORB	EPDM	mm	in	mm	in	mm	in	mm	in
UQD02	7/16-20	7/EPDM	33.1	1.42	27.0	1.06	21.0	0.83	19.0	0.75
UQD04	9/16-18	EPDM	45.3	1.78	35.3	1.39	24,0	0.94	22.0	0.87
UQD06	2003/4/16	EPDM	50.0	1.97	38.9	1.53	29.0	1.14	27.0	1.06
UQD08	2007/8/14	EPDM	62.7	2.47	50.0	1.97	39.0	1.54	36.0	1.42

LT788

SAND BLASTLNG HOSE

Tube：Black abrasion resistant synthetic rubber ( UPE layer is available)
Reinforcement：Braided fiber or steel wire
Cover：Black weather and abrasion resistant synthetic rubber
Temperature range：-40 °C to +70 °C (-40 °F to +158 ° F)

Inquiry

LT786

WIRE BRAID STEAM HOSE

Tube：Black heat-resistant synthetic rubber
Reinforcement：One or two layers of braided fiber or steel wire
Cover：Heat-resistant, weather-resistant, wear-resistant synthetic red rubber, steam pipe body equidistant puncture
Temperature Range：-40℃ to +150℃ (-13℉ to +302℉)

Inquiry

LT800

Coolant Hose

Inner Tube：Black EPDM synthetic rubber
Reinforcement： One or two layers of synthetic fiber braided reinforcement
Outer Layer： Black weather-resistant, ozone-resistant, UL94 V0 flame-retardant special synthetic rubber
Temperature Range： -40℃~+120℃（-40℉~+248℉）

Inquiry

LT789

AUTOMOTIVE A/C HOSE SERIES

Tube：A nylon isolation layer and a layer of black synthetic rubber
Reinforcement：A layer of fiber weave
Cover：Black heat-resistant, ozone-resistant, wear-resistant synthetic rubber
Temperature Range：-40℃ to +125℃ (-40℉ to +257℉)

Inquiry
