SAE100R4 HYDRAULIC SUCTION AND RETURN LINE -Letone

LT782

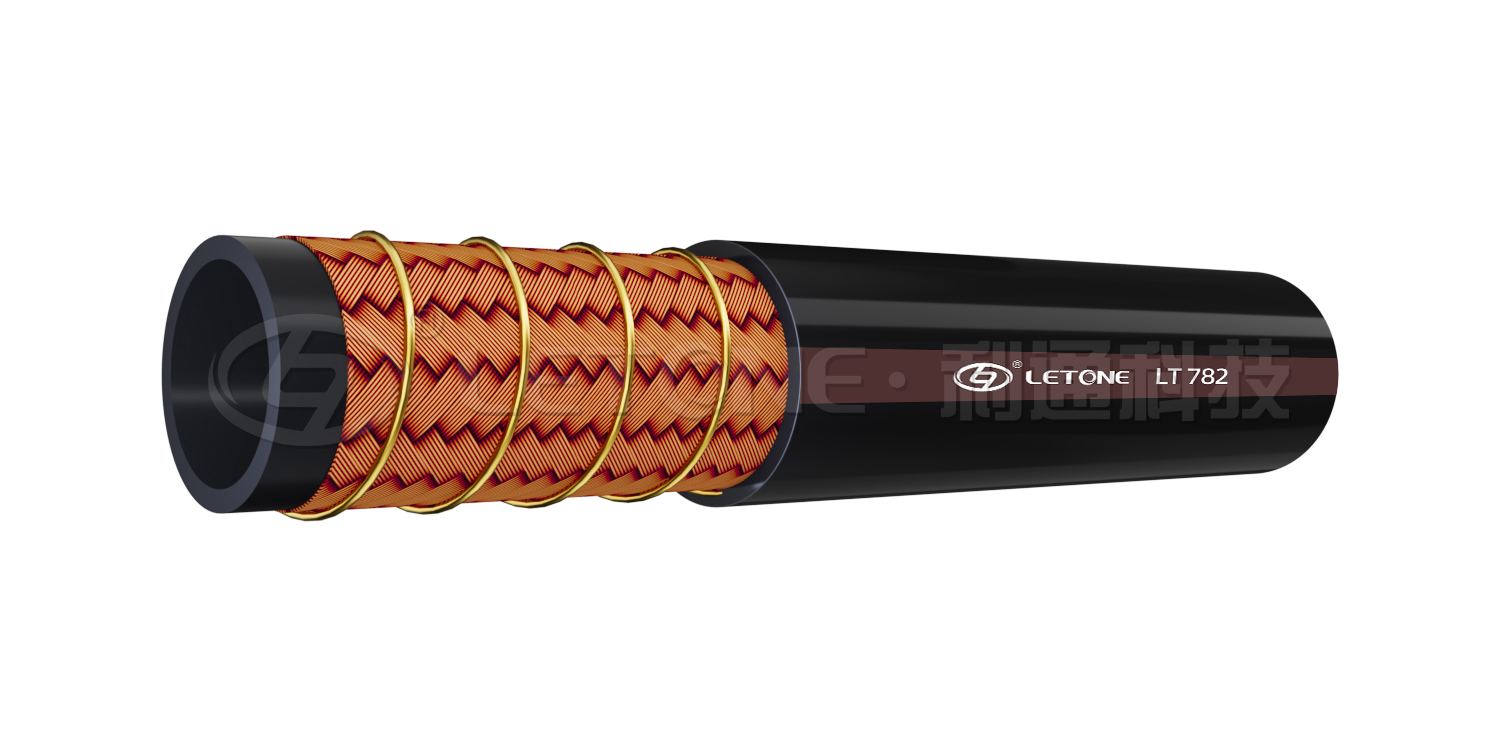

SAE100R4 HYDRAULIC SUCTION AND RETURN LINE

Applications：Suitable to convey medium like petroleum basedhydraulic oil,lubrication oil, water, and air.

Tube：Black oil-resistant synthetic rubber

Reinforcement：One or two braids oftextile and a helicalspiral-wire

Cover：Black oil. weather, and abrasion resistant svnthetic rubber

Temperature Range：-40 °C to + 100 °C (-40 °F to + 212 °F)

Online

Hotline ：

+86-0371-55157686

SAE100R4 HYDRAULIC SUCTION AND RETURN LINE

Parameter

SIZE(Dash)	SIZE(in.)	I.D.(mm)		O.D.(mm)	Max.W.P.		P.P		Min.B.P.		W.T
SIZE(Dash)	SIZE(in.)	Min	Max	Max	(MPa)	psi	MPa	psi	(MPa)	psi	kg/m
-12	3/4	18.2	19.8	34.0	2.1	305	4.2	610	8.4	1210	0.68
-16	1	24.6	26.2	40.0	1.7	250	3.5	510	7	1015	0.84
-20	1 1/4	30.6	33.0	48.0	1.4	200	2.8	410	5.6	810	1.13
-24	1 1/2	36.9	39.3	54.0	1.05	150	2.1	305	4.2	610	1.41
-32	2	49.2	52.4	68.0	0.7	100	1.4	200	2.8	410	1.85
-40	2 1/2	61.9	65.1	81.0	0.4	60	0.85	120	1.7	250	2.28
-48	3	74.6	77.8	93.0	0.4	60	0.8	120	1.6	230	2.64
-56	3 1/2	87.3	90.5	106.0	0.3	40	0.6	90	1.25	180	3.02
-64	4	100.0	103.2	120.0	0.25	40	0.6	70	1.0	145	3.21

Note: The actual parameters are subject to the final atlas

LT788

SAND BLASTLNG HOSE

Tube：Black abrasion resistant synthetic rubber ( UPE layer is available)
Reinforcement：Braided fiber or steel wire
Cover：Black weather and abrasion resistant synthetic rubber
Temperature range：-40 °C to +70 °C (-40 °F to +158 ° F)

Inquiry

LT786

WIRE BRAID STEAM HOSE

Tube：Black heat-resistant synthetic rubber
Reinforcement：One or two layers of braided fiber or steel wire
Cover：Heat-resistant, weather-resistant, wear-resistant synthetic red rubber, steam pipe body equidistant puncture
Temperature Range：-40℃ to +150℃ (-13℉ to +302℉)

Inquiry

LT789

AUTOMOTIVE A/C HOSE SERIES

Tube：A nylon isolation layer and a layer of black synthetic rubber
Reinforcement：A layer of fiber weave
Cover：Black heat-resistant, ozone-resistant, wear-resistant synthetic rubber
Temperature Range：-40℃ to +125℃ (-40℉ to +257℉)

Inquiry

LT784

SAE100R6 FIBER BRAID HOSE

Tube：Black oil-resistant synthetic rubber
Reinforcement：One braid oftextile
Cover：Black oil, weather, and abrasion resistant synthetic rubber
Temperature Range：-40℃ to +100℃ (-40℉ to +212℉)

Inquiry
