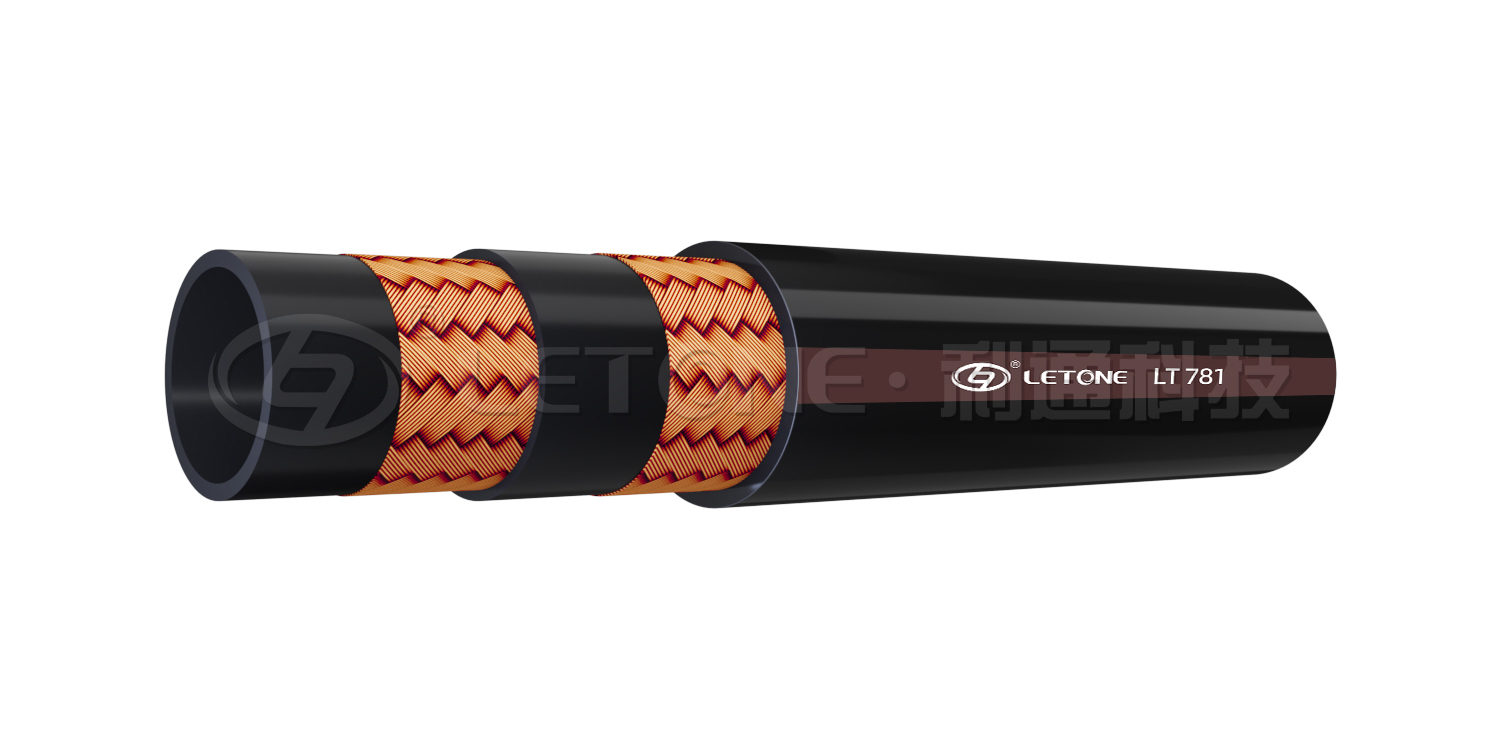

LT781
SAE 100R3 FIBER BRAIDED HOSE
Applications: Suitable to convey medium like petroleum basedhydraulic oil, lubrication oil, water, and air

Tube:Black oil-resistant synthetic rubber
Reinforcement:Two braids oftextile
Cover:Black oil, weather, and abrasion resistantsynthetic rubber
Temperature Range:-40°C~+100°C(40°F~+212°F)
SAE 100R3 FIBER BRAIDED HOSE
Parameter
SIZE(Dash) SIZE(in.)   I.D.(mm) O.D.(mm) Max.W.P. Min.B.P. Min.B.R. W.T
Min Max
Min
Max (MPa) (MPa) (mm)
kg/m
1bft
-3 3/16 4.6 5.5
11.9
13.6 10.5 42 75
0.15
0.14
-4 1/4 6.1 7.0
13.4
15.1 8.7 34.8 75
0.16
0.16
-5 5/16 7.4 8.5
16.7
18.3 8.4 33.6 100
0 .25
0.21
-6 3/8 9.3 10.1
18.3
19.8 7.8 31.2 100
0.31
0.26
-8 1/2 12.3 13.5
22.8
24.6 7 28 125
0.40
0.38
-10 5/8 15.5 16.7
26.2
27.8 6.1 24.4 140
0.51
0.42
-12 3/4 18.5 19.8
30.7
32.5 5.2 20.8 150
0.61
0.58
-16 1 25.1 26.2
36.8
39.2 3.9 15.6 205
0.91
0.74
-20 1 1/4 31.4 32.9
42.8
45.2 2.6 10.4 250
1.10
0.77

Note: The actual parameters are subject to the final atlas
