LT405

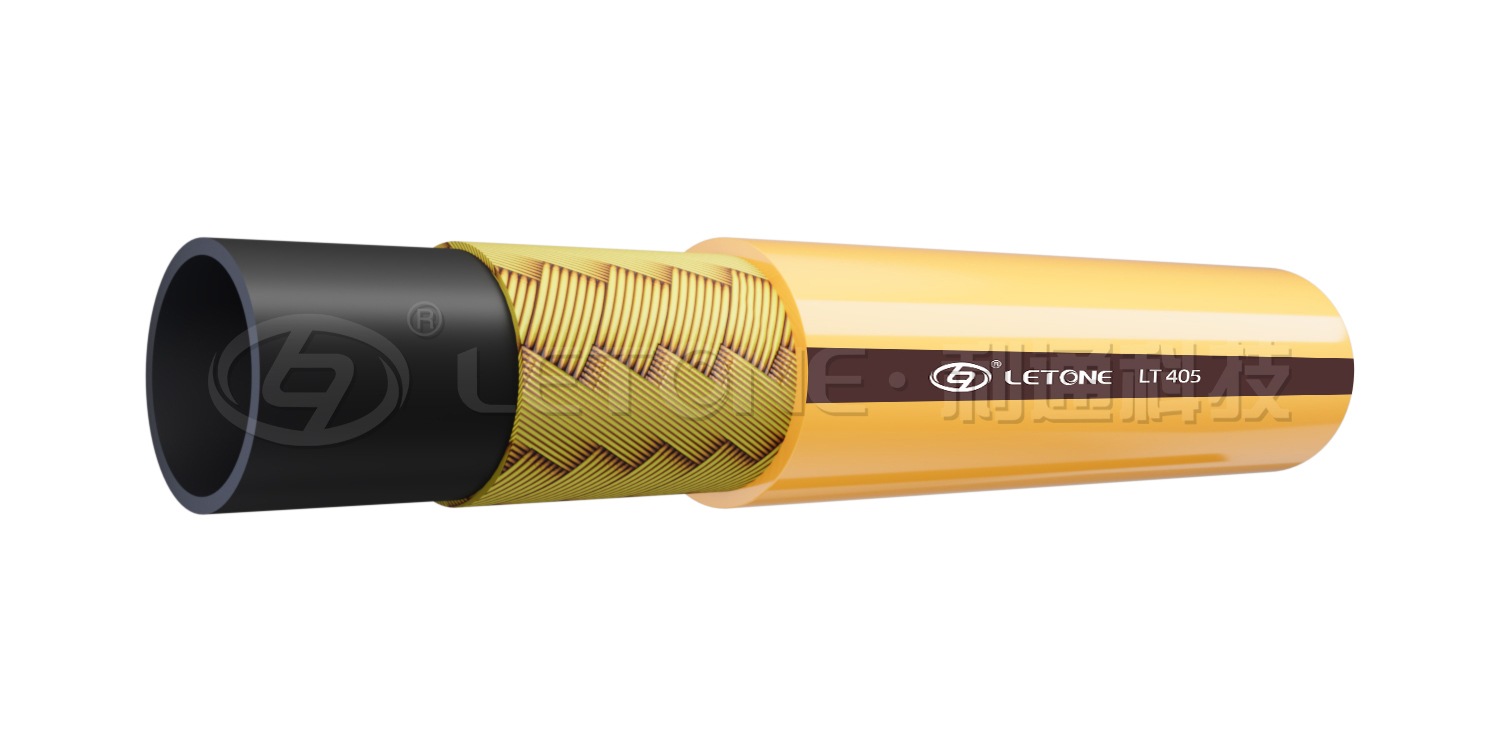

Gel Explosives hose
Application:A specially designed hard rock mining for conveying gel explosives. is a durable hose that handles the toughest mining conditions.

Tube: conductive HDPE, very good conductivity
Cover: Polyurethane, Pu:
Reinforcement: Aramid (Kevlar)
Temperature: -30 ℃ to 100 ℃. Considering the ambient temperature in Russia, low temperature in winter.
Working pressure: 1000PSI. 70kg.
Burst pressure: 4000PSI. 280kg.
Gel Explosives hose
Parameter
Internal Diameter Outside Diameter Wall Thickness Weigth Working Pressure Tube Wall Thickness Min Bend Radius Resistivity
I.D.(mm) O.D.(mm) W.T.(mm) weight(kg/mtr) W.P(psi) I.W.T(mm) Min.B.R.(mm) Resistivity
19 28 4.5 0.6 1000 2.5 600 ≤106

Note: The actual parameters are subject to the final atlas
