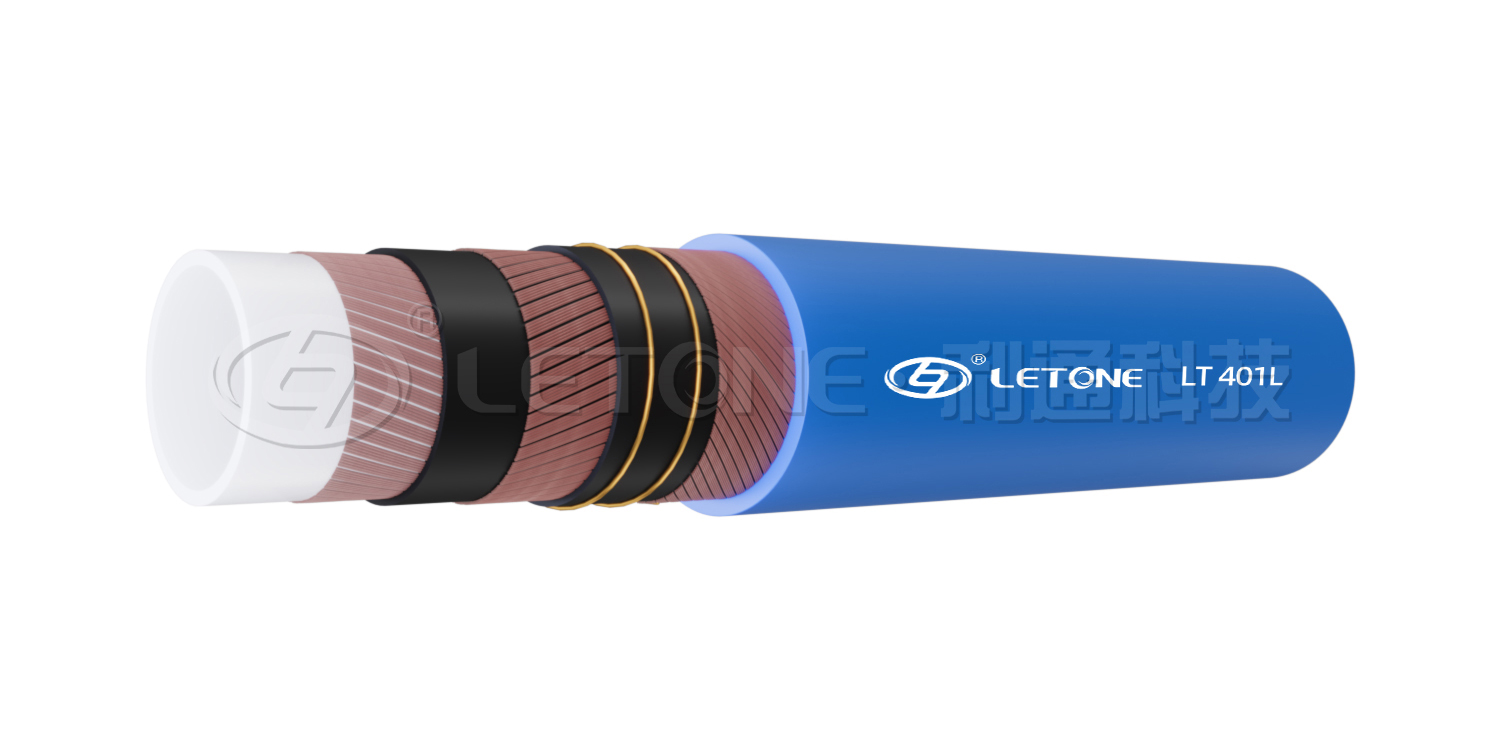

LT401L
PTFE low-pressure multifunctional industrial hose
Application:Widely used in chemical, steel, construction, food, medicine and other fields. The product is suitable for high temperature working environment. Its super corrosion resistance makes it free from various corrosive liquid chemicals (sulfuric acid, Hydrochloric acid, sulfur reactants, etc.) erosion. The fully saturated nature of PTFE / PFA also makes it a good choice for tubes in the food and pharmaceutical industries

Inner layer:PTFE and EPDM synthetic rubber
Reinforcement:multi-spiraled high tensile synthetic fibers and helical spiral-wire
Outer layer:black or blue EPDM or FKM synthetic rubber (UPE layer is available)
Temperature range:-55°C~220°C (-67°F~428°F)
Reference standard:EN12115
PTFE low-pressure multifunctional industrial hose
Parameter
I.D O.D W.P B.P. W.T
in mm in mm psi psi kg/m
3/8 10 0.7 19 5075 20300 0.58
1/2 13 0.9 22.2 4060 16240 0.61
5/8 16 1.07 27.2 3625 14500 0.73
3/4 19 1.2 30.5 3190 12760 0.95
1 25 1.5 38.4 2465 9860 1.42
1-1/4 32 1.8 45.5 1885 7540 1.72
1-1/2 38 2.0 51.5 1305 5220 1.9
2 51 2.80 71 300 750 2.05
3 76 3.86 98 300 750 3.50
4 102 5.00 127 300 750 5.50
