Hydraulic Hose

Letone Technology's hydraulic hoses and fittings conform to various general standards such as SAE, DIN, ISO, GB, MSHA, and MT. Its various high, medium, and low-pressure products are suitable for the manufacturing and maintenance of excavators and other construction machinery, agricultural machinery, mining machinery, high-speed trains, etc., meeting the needs of high-performance hose users. Letone Technology's steel wire braided rubber hose LT681 (SAE 100RAT/EN853 SN) has obtained ABS product design approval, meeting the design and usage requirements of ships and other marine equipment.
  • LT588

    EN 856-4SH | MSHA | MA Wire Spiral Hydraulic Hose

    • Hose Construction
    • Inner Tube: Black oil resistant synthetic rubber
    • Reinforcement: Four plies of spiraled high tensile steel wire
    • Outer Cover: Black oil and weather resistant synthetic rubber
    • Temperature Range: -40°C to +100°C (-40°F to +212°F)
    • Application:Suitable to convey water-based, petroleum-based, and biodegradable hydraulic oil.
  • LT583

    EN856-4SP|Msha Wire Spiral Hydraulic Hose

    • Hose Construction
    • Inner Tube: black oil resistant synthetic rubber
    • Reinforcement: four plies of spiraled high tensile steel wire
    • Outer Cover:black oil and weather resistant synthetic rubber
    • Temperature Range: -40°C to +100°C (-40°F to +212°F)
    • Application:Suitable to convey water-based,petroleum-based,and biodegradable hydraulic oil.

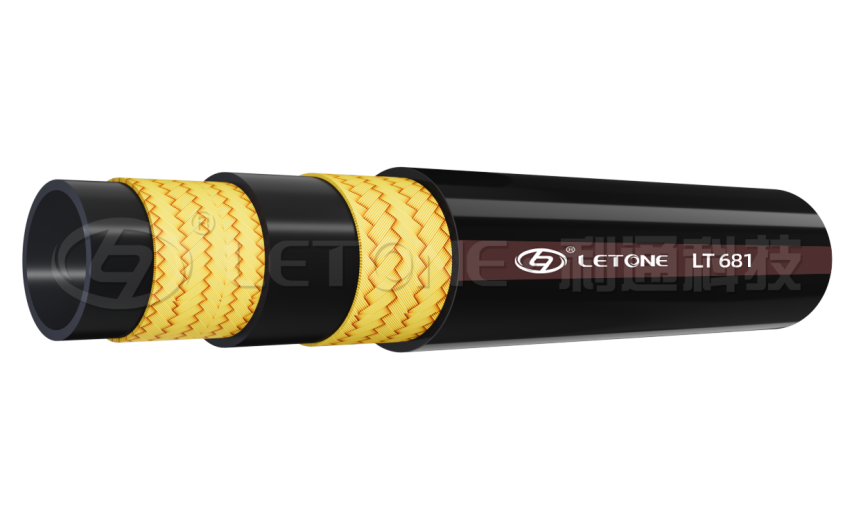

  • LT681

    SAE 100RAT|EN853 SN Wire Braid Hydraulic Hose

    • Hose Construction
    • Inner Tubeblack oil resistant synthetic rubber
    • Reinforcement:one or two braids of high tensile super flexible steel wire
    • Outer Layer:black oil,weather,and abrasion resistant synthetic rubber
    • Temperature Range: -40°C to +100°C (-40°F to +212°F)
    • Application: Suitable to convey water-based,petroleum-based,and  biodegradable  hydraulic  oil.
  • LT682

    SAE 100 RAT|EN 853 ST Wire Braid Hydraulic Hose

    • Hose Construction
    • Inner Tube:black oil resistant synthetic rubber
    • Reinforcement:one or two braids of high tensile super flexible steel wire
    • Outer Layer: black oil,weather,and abrasion resistant synthetic rubbe
    • Temperature Range: -40°C to +100°C (-40°F to +212°F)
    • Application:Suitable to convey water-based,petroleum-based,and biodegradable hydraulic oil.
  • LT699

    ISO 18752-AC/BC Artery Wire Braid Hydraulic Hose

    • Hose Construction
    • Inner Tube:NBR synthetic rubber
    • Reinforcement:one or two braids of high tensile super flexible steel wire,one braid≥300,000 impulse cycles,two braids≥500,000 impulse cycles
    • Outer Layer:skiving-free oil,abrasion,and weather resistant synthetic rubber
    • Temperature Range:-40℃~+100℃(-40°F~+212°F);-55℃~+100℃(-67°F~+212°F)
    • Application:Remarkable performance on high pressure and high impulse.Widely apply to excavator and other heavy duty construction machinery.
  • LT799

    Ultra-High Pressure Thermoplastic Hose

    • Hose Construction
    • Inner Layer: nylon
    • Reinforcement: 4~8 plies of spiraled steel wire
    • Outer Layer: super abrasion resistant polyurethane
    • Temperature Range: -30°C~+80°C(-22°F~+176°F)
    • Application: Suitable to transfer water,oil and other medium under high pressure,widely apply to the industries like high pressure spraying,high pressure cleaning,sandblasting,engineering machinery, agricultural machinery,forestry machinery,petrochemical,etc.
  • LT581

    SAE 100R12|MSHA Wire Spiral Hydraulic Hose

    • Hose Construction
    • Inner Tube: black hot oil resistant synthetic rubber
    • Reinforcement: four plies of spiraled high tensile steel wire
    • Outer Layer: black oil and weather resistant synthetic rubber
    • Temperature Range: -40°C ~ +121°C (-40°F ~ +250°F)
    • Application:Suitable to convey water-based, petroleum-based, and biodegradable hydraulic oil under harsh working conditions.
  • LT582

    SAE 100R13|MSHA Wire Spiral Hydraulic Hose

    • Hose Construction
    • Inner Tube: black hot oil resistant synthetic rubber
    • Reinforcement:four or six plies of spiraled high tensile steel wire
    • Outer Layer: black oil and weather resistant synthetic rubber
    • Temperature Range: -40°C ~ +121°C (-40°F ~ +250°F)
    • Application: Suitable to convey water-based, petroleum-based, and biodegradable hydraulic oil under harsh working conditions.
  • LT585

    MT/T98|MSHA Wire Spiral Hydraulic Hose For Mining

    • Hose Construction:
    • Inner Tube:black oil resistant synthetic rubber
    • Reinforcement:four or six plies of spiraled high tensile steel wire
    • Outer Layer:black oil,weather, and abrasion resistant synthetic rubber
    • Temperature Range: -40°C ~ +100°C (-40°F ~ +212°F)
    • Application: Suitable to convey medium like mineral oil, water-based hydraulic oil, or water in coal mining machinery such as coal mining hydraulic support and coal shearer.
