Equipment Plate
-
LTU600-612L
Production Equipment
- Type: Elevated-horizontal
Flat-horizontal
- High Pressure Chamber Effective Volume: ≥600L
- High Pressure Chamber Inner Diameter: Φ380 mm×5600 mm
Φ390 mm×5000 mm
- Working Pressure: 600MPa
- High Pressure Source Groups: 10-12 groups
-

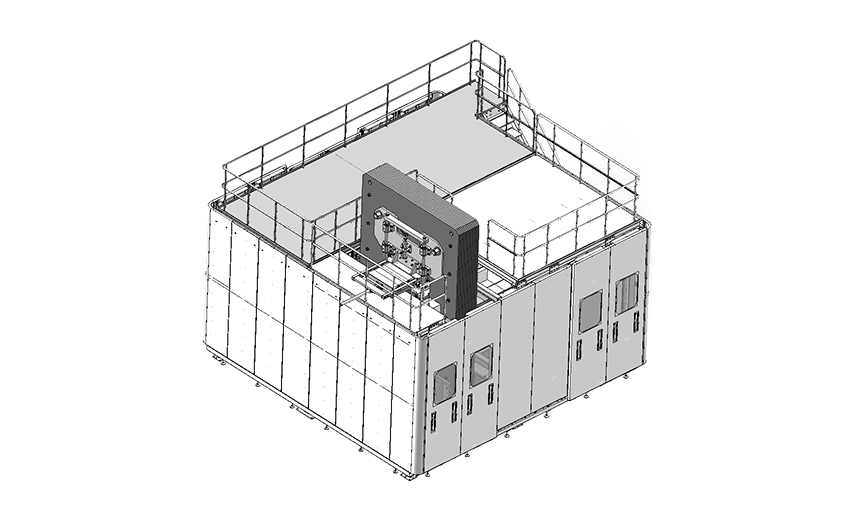

LTUH-600-56L
Warm Isostatic Pressing Equipment
- Ultra High Pressure Chamber Inner Diameter: Φ300 mm
- Ultra High Pressure Chamber Volume: 56L
- Ultra High Pressure Chamber Length: 800 mm
- Working Pressure: 600 MPa
- Design Pressure: 700 MPa
-

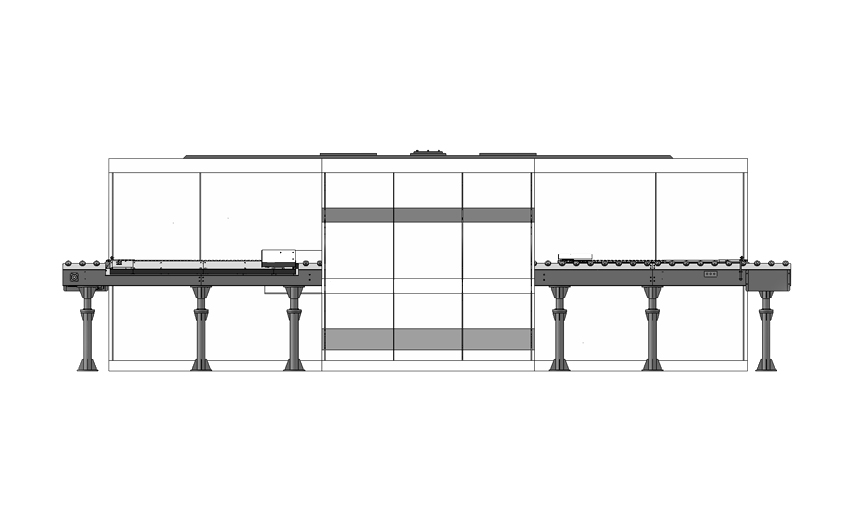

LTUH-600-169L
Warm Isostatic Pressing Equipment
- Ultra High Pressure Chamber Inner Diameter: Φ300 mm
- Ultra High Pressure Chamber Volume: 169 L
- Ultra High Pressure Chamber Length: 2400 mm
- Working Pressure: 600 MPa
- Design Pressure: 700 MPa
-
LTUH-600-326L
Warm Isostatic Pressing Equipment
- Ultra High Pressure Chamber Inner Diameter: Φ400mm
- Ultra High Pressure Chamber Volume: 326L
- Ultra High Pressure Chamber Length: 2600mm
- Working Pressure: 600MPa
- Design Pressure: 700 MPa
-
LTU600-2L
Experimental Equipment
- Type: Vertical
- High Pressure Chamber Effective Volume: ≥2L
- High Pressure Chamber Inner Diameter: Φ100 mm×260 mm
- Working Pressure: 600 MPa
- High Pressure Source Groups: 1 group
-
LTU700-4L
Experimental Equipment
- Form: Vertical
- High Pressure Chamber Effective Volume: ≥4 L
- High Pressure Chamber Inner Diameter: Φ100 mm×520 mm
- Working Pressure: 700 MPa
- High Pressure Source Groups: 1 group
-
LTU600-5L
Experimental Equipment
- Type: Vertical
- High Pressure Chamber Effective Volume: ≥5 L
- High Pressure Chamber Inner Diameter: Φ100 mm×520 mm
- Working Pressure: 600 MPa
- High Pressure Source Groups: 1 group
-
LTU700-40L
Pilot-scale Equipment
- Type: Horizontal
- High Pressure Chamber Effective Volume: ≥40 L
- High Pressure Chamber Inner Diameter: Φ200 mm×1800 mm
- Working Pressure: 700 MPa
- High Pressure Source Groups: 1-2 groups
-
LTU600-50L
Pilot-scale Equipment
- Form: Horizontal
- High Pressure Chamber Effective Volume: ≥50 L
- High Pressure Chamber Inner Diameter: Φ200 mm×1800 mm
- Working Pressure: 600 MPa
- High Pressure Source Groups: 1-2 groups
