LT699

ISO 18752-AC/BC Artery Wire Braid Hydraulic Hose

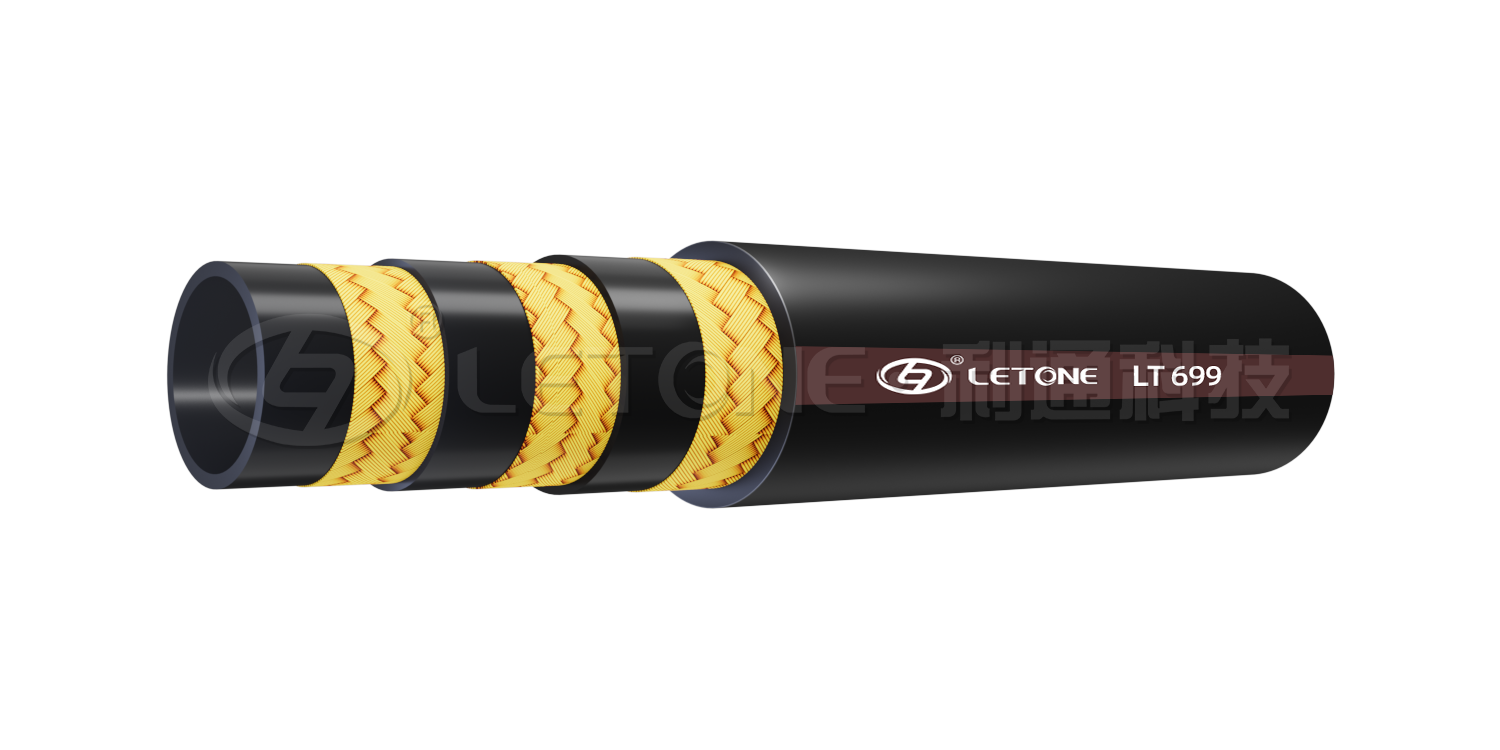

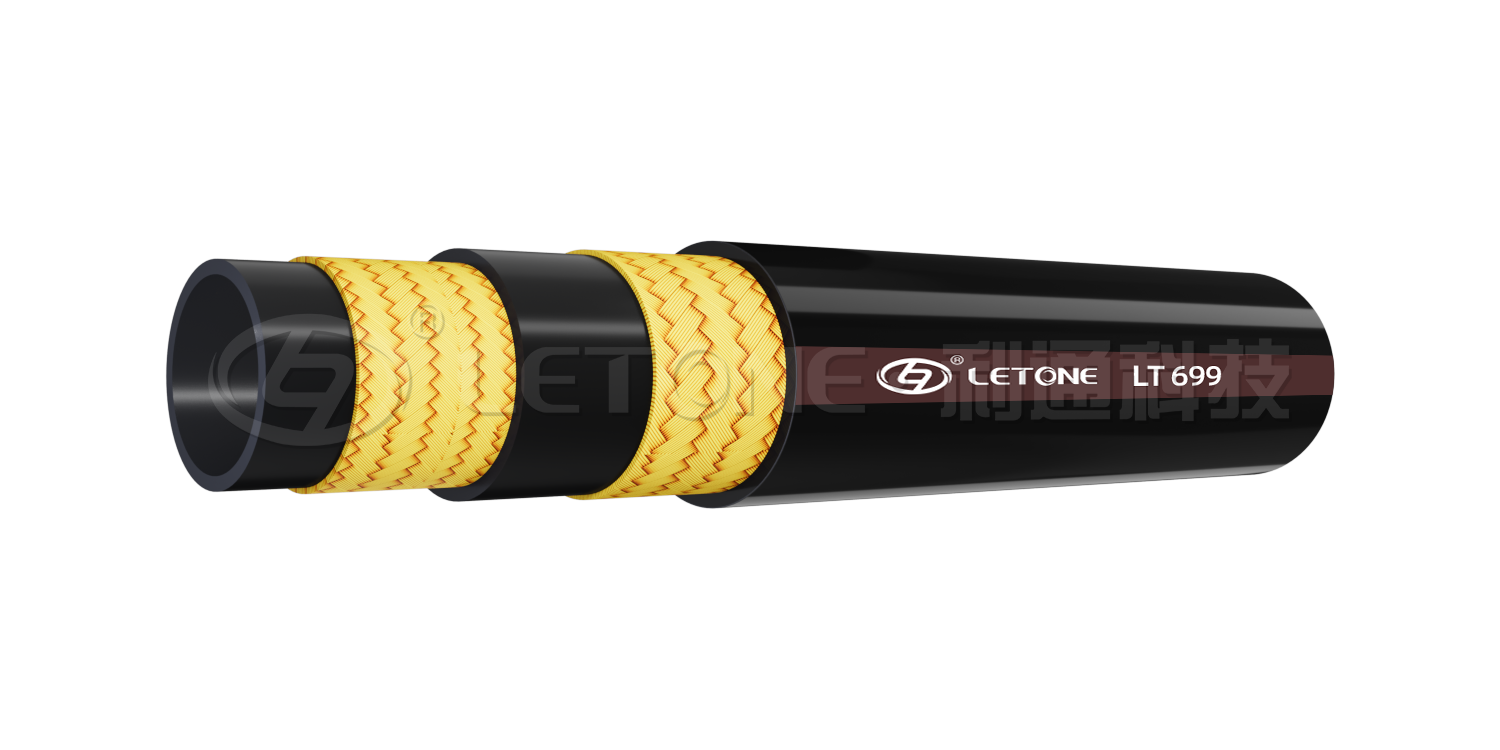

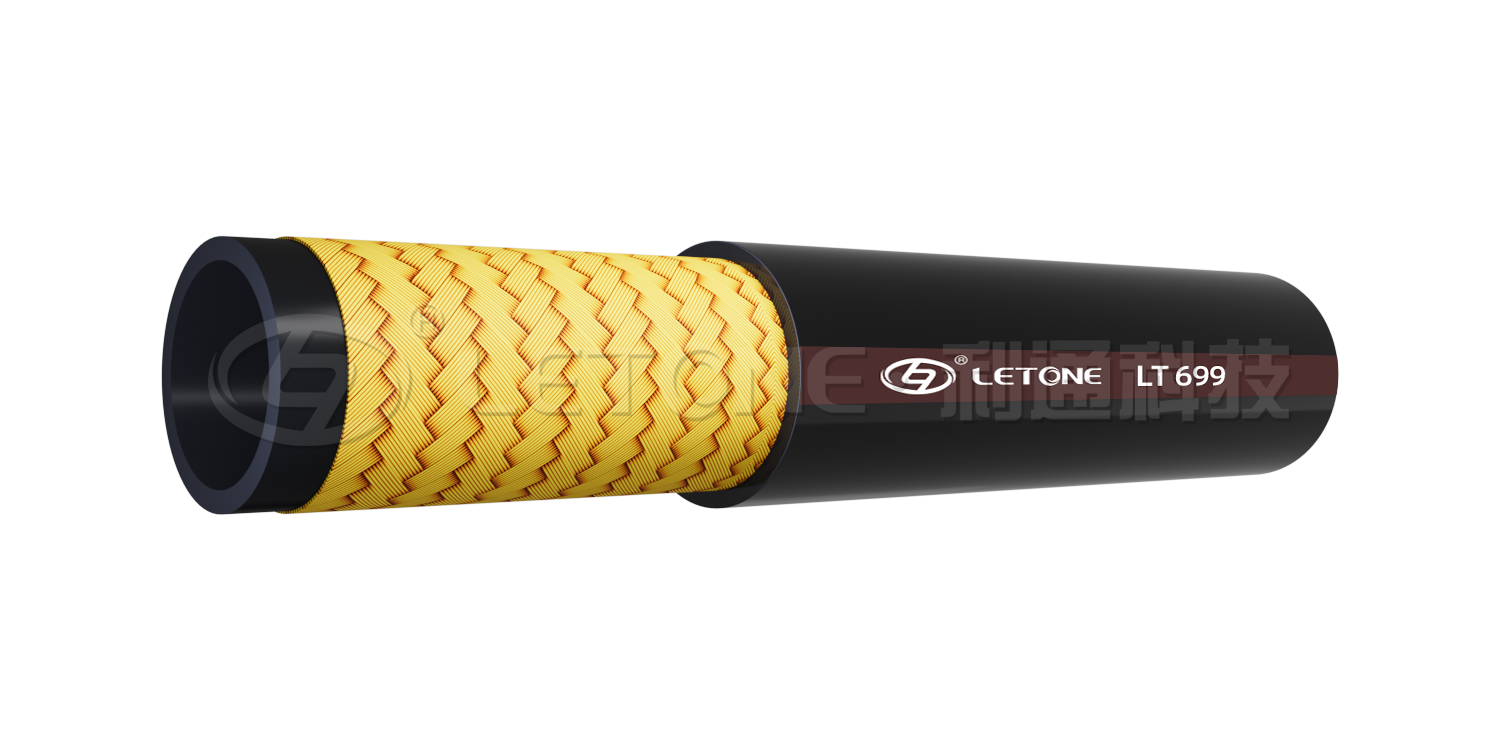

Hose Construction
Inner Tube:NBR synthetic rubber
Reinforcement:one or two braids of high tensile super flexible steel wire,one braid≥300,000 impulse cycles,two braids≥500,000 impulse cycles
Outer Layer:skiving-free oil,abrasion,and weather resistant synthetic rubber
Temperature Range:-40℃~+100℃(-40°F~+212°F);-55℃~+100℃(-67°F~+212°F)
Application:Remarkable performance on high pressure and high impulse.Widely apply to excavator and other heavy duty construction machinery.

Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Parameter

SIZE	Specification	I.D		W.D		O.D		Max.W.P	P.P	Min.B.P	Min.Impulse	Min.B.R	W.T
	Specification	I.D		W.D		O.D					10K
	SIZE	Min	Max	Min	Max	Min	Max				10K
	IN	mm	mm	mm	mm	mm	mm	MPa	MPa	MPa	CYCLES	mm	kg/m
-4	1/4-1	5.8	6.5	10.7	11.7	12.9	13.9	25	50	100	30	80	0.20
-5	5/16-1	7.7	8.5	12.5	13.5	14.7	15.7	25	50	100	30	92	0.25
-6	3/8-1	9.8	10.5	14.5	15.5	16.9	17.9	21	42	84	30	104	0.32
-8	1/2-1	12.8	13.5	17.7	18.7	20.2	21.2	18	36	72	30	144	0.40
-10	5/8-1	15.8	16.6	20.7	21.7	23.5	24.5	14	28	56	30	160	0.50
-12	3/4-1	18.8	19.8	24.4	25.4	27.0	29.0	14	28	56	30	192	0.67
-16	1-1	24.8	25.8	32	33	35.4	36.6	9	18	36	30	240	0.91
-20	11/4-1	31.4	33	39.3	40.7	42.7	44.3	6.3	13	25	30	400	1.19
-24	11/2-1	37.7	39.3	45	46.4	48.4	50	5	10	20	30	480	1.33
-32	2-1	50.4	52	58.8	60.2	62.2	63.8	4	8	16	30	560	1.87
-4	1/4-2	5.8	6.5	12.6	13.6	14.5	15.5	42	84	168	50	80	0.35
-5	5/16-2	7.7	8.5	14	15	15.8	16.8	35	84	140	50	92	0.40
-6	3/8-2	9.8	10.5	16.4	17.4	18.2	19.2	35	70	140	50	104	0.52
-8	1/2-2	12.8	13.5	19.5	20.5	21.7	22.7	28	56	112	50	144	0.63
-10	5/8-2	15.8	16.6	22.5	23.5	24.9	25.9	28	56	112	50	160	0.76
-12	3/4-2	18.8	19.8	26.5	27.5	29	30.2	25	50	100	50	192	0.94
-16	1-2	24.8	25.8	33.5	34.5	36.5	37.7	21	42	84	50	240	1.37
-20	11/4-2	31.4	33.0	43.5	44.9	46.7	48.3	14	28	56	50	400	2.00
-24	11/2-2	37.7	39.3	49.8	51.2	53.2	54.8	9.0	18	36	50	480	2.30
-32	2-2	50.4	52.0	62.5	63.9	66	67.6	8.0	16	32	50	610	3.02
