LT800C
Grid-Connected Pipeline
- Hose Construction
- Inner Tube: EPDM rubber cured with peroxide
- Reinforcement:Multi-layer high-strength fiber braiding reinforced with spiralsteel wire
- Outer Layer: Corrugated black synthetic rubber(UL94VO flame-retardant)
- Temperature Range: -40℃~+93℃(-40°F~+200°F)
- Color:black
- Application: Suitable for conveyingfluid media such as air,water,water-glycol, oil-water emulsion, antifreeze fluid,phosphate esterhydraulicoil,etc.
-
LT800B
Grid-Connected Pipeline
- Hose Construction
- Inner Tube: EPDM rubber cured with peroxide
- Reinforcement: One-layer high-strength fiber braiding reinforced
- OuterLayer:black synthetic rubber(UL94VO flame-retardant)
- Temperature Range: -40℃~+99℃(-40°F~+210°F)
- Color:black
- Application: Suitable for conveying fluid media such as air,water,water-glycol,oil-water emulsion, antifreeze fluid,phosphate esterhydraulic oil,etc.
-
LT305
17K Jumper Hose
- Inner Tube: UPE or PTFE (thickness 4.0mm)
- Reinforcement: Synthetic rubber, polyester fiber braiding and high-strength ultra-flexible copper-coated steel wire
- Outer Cover: Wear-resistant weather-resistant synthetic rubber + stainless steel armor
- Temperature Range: -30°C~+100°C (-22°F~+212°F)
- Compliance Standard: API 17K Third Edition
- Application: Features high pressure, lightweight, and long life characteristics, with superior corrosion resistance compared to traditional steel hose, can replace steel hose for deep-sea oil and gas transportation.
-
LT401L
EN12115 PTFE Low Pressure Multipurpose Hose
- Application: Widely apply to various industries like chemical, petroleum, iron and steel smelting, F&B and medication etc.The productis suitable to work under high temperature environment. Depending on its feature of super corrosion-resistant,even strong corrosion chemicals like sulfuric acid, hydrochloric acid and sulfur reactant could not react with it. It is alsoone of the best choices for food and medical industries.
- Hose Construction
- Inner Tube: PTFE and EPDM synthetic rubber
- Reinforcement:Multi-spiral high tensile synthetic fibers and helix spiral-wire
- Outer Layer: Black or blue EPDM or FKM synthetic rubber (UPE layer is available)
- Temperature Range: -55°C to 220°C (-67°F to 428°F)
- *The hose dimension, pressure and color can be customized based on the requirements.
-
LT800A
LCP-Water Manifold Jumper Hose
- Hose Construction
- Inner Tube: EPDM rubber cured with peroxide
- Reinforcement: One layers of braided synthetic fiber
- Outer Cover: Black weather-resistant, ozone-resistant, UL94V0 flame-retardant special synthetic rubber
- Temperature Range: -40°C~+120°C (-40°F~+248°F)
- Color:red、black、blue
- Application: Suitable for medium fluids such as air, water, water glycol, oil-water emulsion, antifreeze, phosphate ester hydraulic oil, etc.
-
LT401H
EN12115 PTFE High Pressure Multipurpose Hose
- Application: Widely apply to various industries like chemical, petroleum, iron and steel smelting, F&B and medication etc.The productis suitable to workunder high temperature environment. Dependingon its feature of super corrosion-resistant,even strong corrosion chemicals like sulfuric acid, hydrochloric acid and sulfur reactant could not react with it. It is alsoone of the best choices for food and medicalindustries.
- Hose Construction
- Inner Tube: PTFE and EPDM synthetic rubber
- Reinforcement:Two steel wire braids or four-ply of spiral steel wire
- Outer Layer: Black /red/yellow/blue oxygen, UV, and abrasion resistant NV or EPDM synthetic rubber (UPE layer is available)
- Temperature Range: -55°C to 220°C (-67°F to 428°F)
- *The hose dimension, pressure and color can be customized based on the requirements.
-

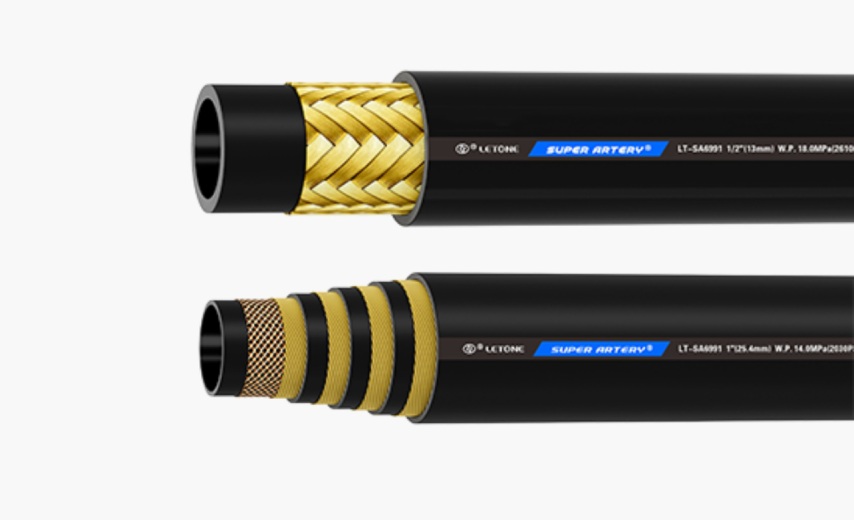

LTSA5991
EXCEEDS ISO18752-BC/CC Super Artery Low Bend Series
- Hose Construction
- Inner Tube: NBR or CR synthetic rubber, suitable for biodegradable hydraulic fluids.
- Reinforcement: four plies of spiraled high tensile steel wire, impulse≥1,000,000 cycles.
- Cover: Standard:no-skive abrasion, weather resistant synthetic rubber.
AR cover: no-skive, highly abrasion, weather resistant synthetic rubber.
SAR cover: super abrasion, weather resistant UHMWPE.
- Temperature Range: -40°C to +121°C (-40°F to +250°F) -55°C to +100°C (-67°F to +212°F)
- Hose Features:
- Low Bend Radius: The average bend radius is 23% less than the ISO 18752 BC/CC standard, 24% less than the SAE standard.
- High Pressure: The average pressure is 22% higher than the SAE standard.
- Long service Life: guarantee for two years by using with Letone one-piece or swaged fittings and HNBR seals.
- Application: Suitable for heavy duty construction machineries such as excavators or harsh environment use.
-
LT SA5992
EXCEEDS ISO18752-BC/CC/DC Super Artery Low Bend Series
- Hose Construction
- Inner Tube: NBR or CR synthetic rubber, suitable forbiodegradable hydraulic fluids.
- Reinforcement: Two braids of high tensile steel wire (1/4"-5/16"), impulse≥500,000 cycles.
Four plies of spiraled high tensile steel wire (3/8"-1 1/4"),impulse≥1,000,000 cycles.
Six plies of spiraled high tensile steel wire (1 1/2"-2"), impulse≥1,000,000 cycles.
- Cover: Standard:abrasion, weather resistant synthetic rubber.
AR cover: highly abrasion, weather resistant synthetic rubber.
SAR cover: super abrasion, weather resistant UHMWPE.
- Temperature Range: -40°C to +121°C (-40°F to +250°F) -55°C to +100°C (-67°F to +212°F)
- Hose Features:
- Low Bend Radius: The average bend radius is 48% less than the ISO 18752 BC/CC/DC standard, 50% less than the SAE standard.
- High Pressure: Comply with ISO 18752 BC/CC/DC standard.
- Long service Life: Guarantee for two years by using with Letone one-piece or swaged fittings and HNBR seals
- Application: Suitable for heavy duty construction machineries such as excavators or harsh environment use.
-
LT SA5993
EXCEEDS ISO18752 DC Super Artery Low Bend Series
- Hose Construction
- Inner Tube: NBR or CR synthetic rubber, suitable forbiodegradable hydraulic fluids.
- Reinforcement: Four plies of spiraled high tensile steel wire (1/4"-1"), impulse≥1,000,000 cycles.
Six plies of spiraled high tensile steel wire (1 1/4"-2"), impulse≥1,000,000 cycles.
- Cover: Standard:abrasion, weather resistant synthetic rubber.
AR cover: highly abrasion, weather resistant synthetic rubber.
SAR cover: super abrasion, weather resistant UHMWPE.
- Temperature Range: -40°C to +121°C (-40°F to +250°F) -55°C to +100°C (-67°F to +212°F)
- Hose Features:
- Low Bend Radius: The average bend radius is 27% less than the ISO 18752 DC standard, 37% less than theSAE standard.
- High Pressure: Comply with ISO 18752 BC/CC/DC standard.
- Long service Life: Guarantee for two years by using with Letone one-piece or swaged fittings and HNBR seals.
- Application: Suitable for heavy duty construction machineries such as excavators or harsh environment use.
