Industrial Hose
Letone industrial hoses offer flexible options in terms of hose inner diameter, working pressure, and temperature range. Based on customer needs, Letone industrial hoses can be customized with features such as large diameter (14"), ultra-wear resistance, high/low temperature resistance, and corrosion resistance.
-
LT401L
EN12115 PTFE Low Pressure Multipurpose Hose
- Application: Widely apply to various industries like chemical, petroleum, iron and steel smelting, F&B and medication etc.The productis suitable to work under high temperature environment. Depending on its feature of super corrosion-resistant,even strong corrosion chemicals like sulfuric acid, hydrochloric acid and sulfur reactant could not react with it. It is alsoone of the best choices for food and medical industries.
- Hose Construction
- Inner Tube: PTFE and EPDM synthetic rubber
- Reinforcement:Multi-spiral high tensile synthetic fibers and helix spiral-wire
- Outer Layer: Black or blue EPDM or FKM synthetic rubber (UPE layer is available)
- Temperature Range: -55°C to 220°C (-67°F to 428°F)
- *The hose dimension, pressure and color can be customized based on the requirements.
-
LT401H
EN12115 PTFE High Pressure Multipurpose Hose
- Application: Widely apply to various industries like chemical, petroleum, iron and steel smelting, F&B and medication etc.The productis suitable to workunder high temperature environment. Dependingon its feature of super corrosion-resistant,even strong corrosion chemicals like sulfuric acid, hydrochloric acid and sulfur reactant could not react with it. It is alsoone of the best choices for food and medicalindustries.
- Hose Construction
- Inner Tube: PTFE and EPDM synthetic rubber
- Reinforcement:Two steel wire braids or four-ply of spiral steel wire
- Outer Layer: Black /red/yellow/blue oxygen, UV, and abrasion resistant NV or EPDM synthetic rubber (UPE layer is available)
- Temperature Range: -55°C to 220°C (-67°F to 428°F)
- *The hose dimension, pressure and color can be customized based on the requirements.
-
LT1202L
En 12115 Upe Low Pressure Multipurpose Hose
- Application: widely apply to industries like chemical,iron and steel smelting,construction,F&B,and medication etc.It is rarely reacting with any substance(oil,fats,corrosion chemicals etc.)because of its highly saturation materials.Its neutral taste and odor illustrates that it is safe to use in the F&B and medication industries.
- Hose Construction
- Inner Tube: UPE and EPDM synthetic rubber
- Reinforcement:multi-spiral high tensile synthetic fibers and helix spiral-wire
- Outer Layer: Black or blue EPDM synthetic rubber (UPE layeris available)
- Temperature Range: -30°C to 82°C (-22°F to 180°F)
- *The hose dimension,pressure and color can be customized based on the requirements.
-
LT1202H
EN12115 UPE High Pressure Multipurpose Hose
- Application:Widely apply to industries like chemical,iron and steel smelting,construction,F&B,and medication etc.It is rarely reacting with any substance (oil,fats,corrosion chemicals etc.)because of its highly saturation materials.Its neutral taste and odor illustrates that it is safe to use in the F&B and medical industries.
- Hose Construction
- Inner Tube:UPE and EPDM synthetic rubber
- Reinforcement:two steel wire braids or four-ply of spiral steel wire
- Outer Layer: black/red/yellow/blue oxygen,UV,and abrasion resistant NV or EPDM synthetic rubber(UPE layer is available)
- Temperature Range: 30°℃~82℃(-22°F~180°F)
- *The hose dimension,pressure and color can be customized based on the requirements.
-
LT1306
GB/T 27571 UPE Super Abrasion Resistant Concrete Hose
- Application:Apply to construction machinery like pump truck to delivery concretes.Its service life is several times more than average products in the market,and the high saturation characteristic of UPE means that this product will not react with the alkaline substance in the concrete.
- Hose Construction
- Inner Tube:UPE and NR&SBR synthetic rubber
- Reinforcement: 2~4 plies of sprial steel cord
- Outer Layer:black NR&SBR synthetic rubber(UPE layer is available)
- Temperature Range: -30°C~+82°C (-22°F~+180°F)
- *The hose dimension,pressure and color can be customized based on the requirements.
-

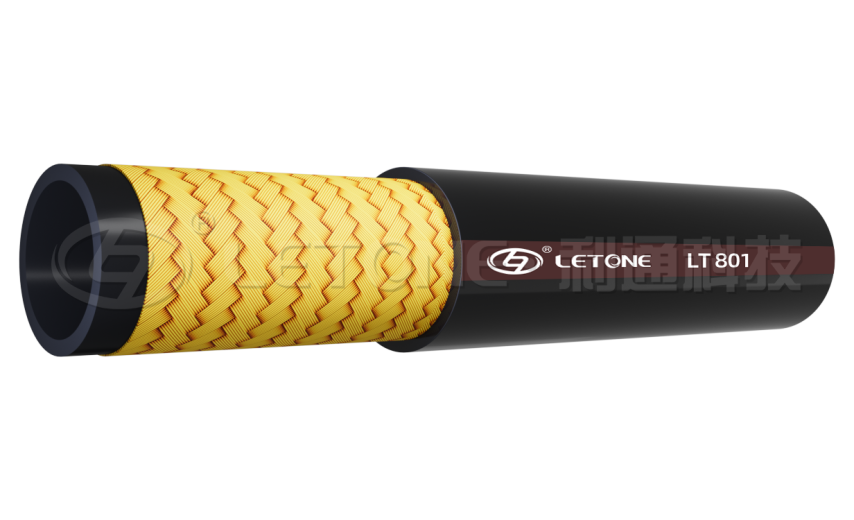

LT801
Wire Braid Air Hose
- Application: Designed for higher pressure air transfer services in construction and mining industries,suitable for extremely environment because of its abrasion resistant characteristic
- Hose Construction
- Inner Tube: Black NR&SBR synthetic rubber
- Reinforcement:One braid of high tensile super flexible steel wire
- Outer Layer: Black or yellow NR&SBR synthetic rubber
- Temperature Range: -30℃~82℃(-22°F~180°F)
- *The hose dimension,pressure and color can be customized based on the requirements
-
LT803
GB/T 1186 Fiber Spiral Compressed Air Hose
- Application:Designed for compressed air transfer in construction and mining industries,suitable for extremely environment because of its abrasion resistant characteristic
- Hose Construction
- Inner Tube: Black NR&SBR synthetic rubber
- Reinforcement: Multi-spiral high tensile synthetic fibers and helix spiral-wire
- Outer Layer: Black NR&SBR or CR synthetic rubber
- Temperature Range: -30℃~82℃(-22°F~180°F)
- *The hose dimension,pressure and color can be customized based on the requirements.
-

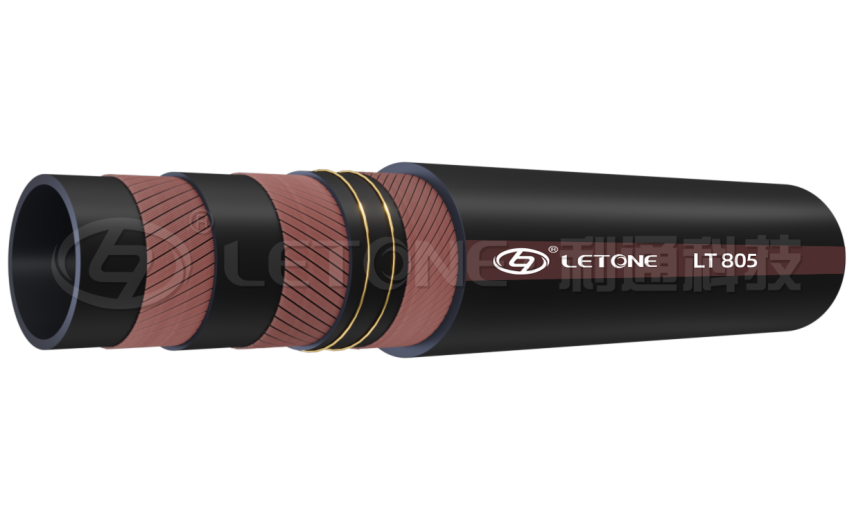

LT805
GB/T 1186 Fiber Spiral High-Temp Compressed Air Hose
- Application:Designed for compressed air transfer in construction and mining industries,suitable for the relatively high-temperature environment.
- Hose Construction
- Inner Tube: Black high-temp resistant synthetic rubber
- Reinforcement:Multi-spiral high tensile synthetic fibers and helix spiral-wire
- Outer Layer: Black high-temp resistant synthetic rubber
- Temperature Range:-30℃~150℃(-22°F~302°F)
- *The hose dimension,pressure and color can be customized based on there quirements.
-

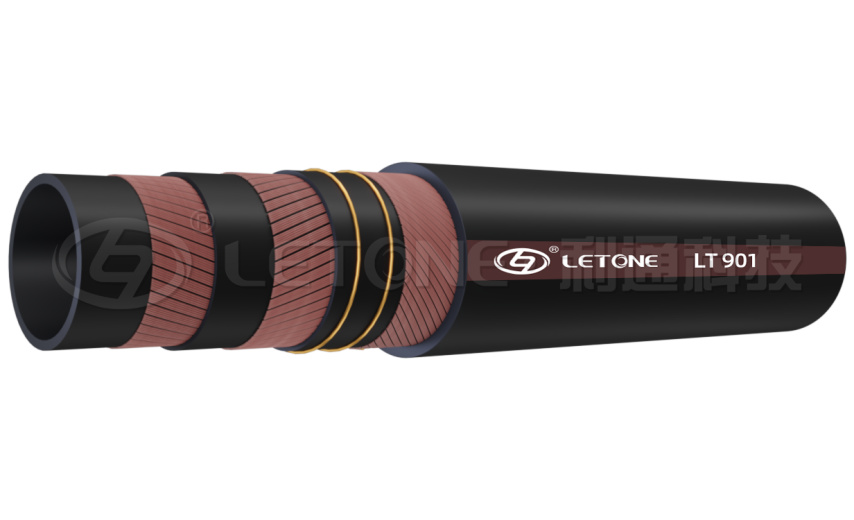

LT901
HG/T 3035 General Purpose Water Suction&Discharge Rubber Hose
- Application:Designed for the general use of construction,agriculture,and other industrial applications.
- Hose Construction
- Inner Tube: Black EPDM or NR&SBR synthetic rubber(UPE layer is available)
- Reinforcement: Multi-spiral high tensile synthetic fibers and helix spiral-wire
- Outer Layer: Black EPDM or NR&SBR synthetic rubber
- Temperature Range: -30°℃~100℃(-22°F~212°F)
- *The hose dimension,pressure and color can be customized based on the requirements.
