LT681

SAE 100RAT|EN853 SN Wire Braid Hydraulic Hose

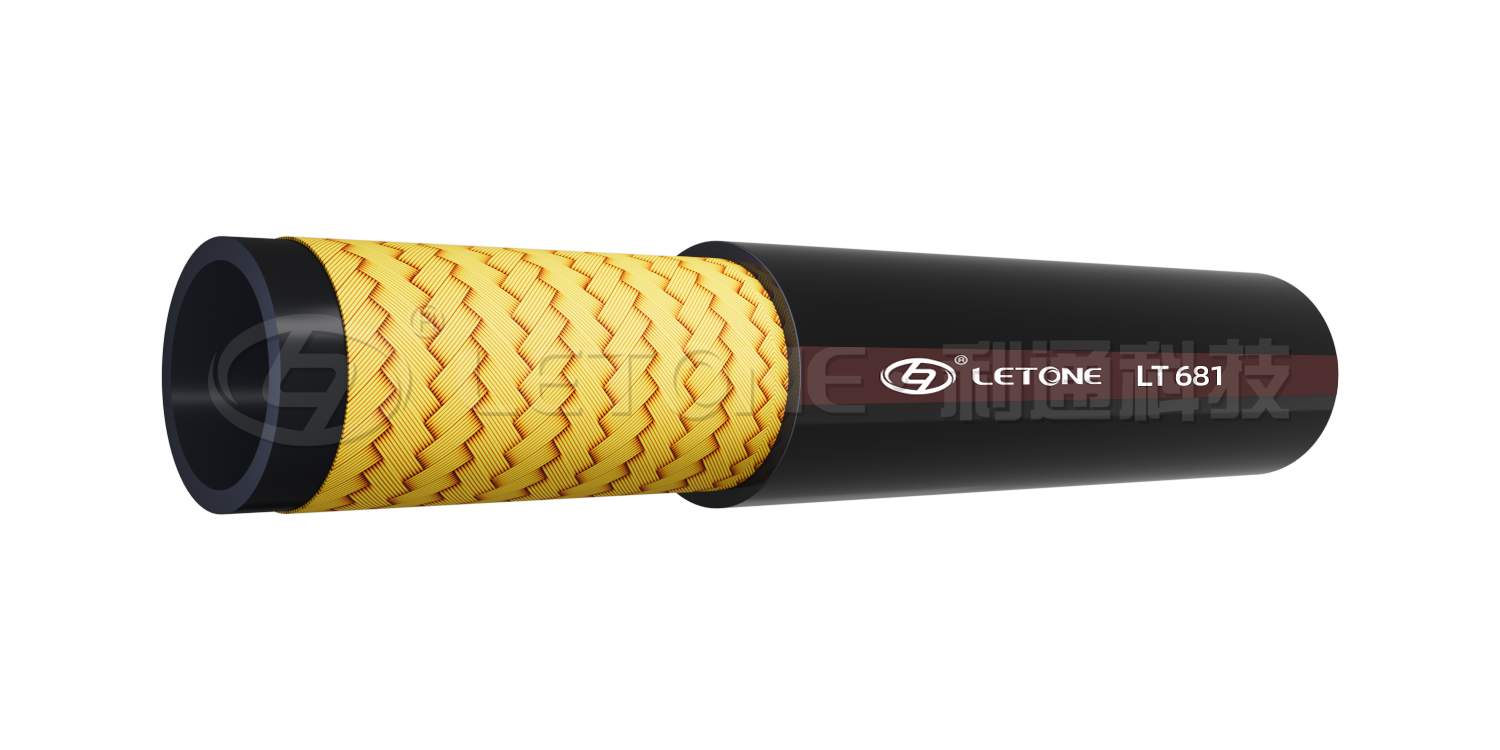

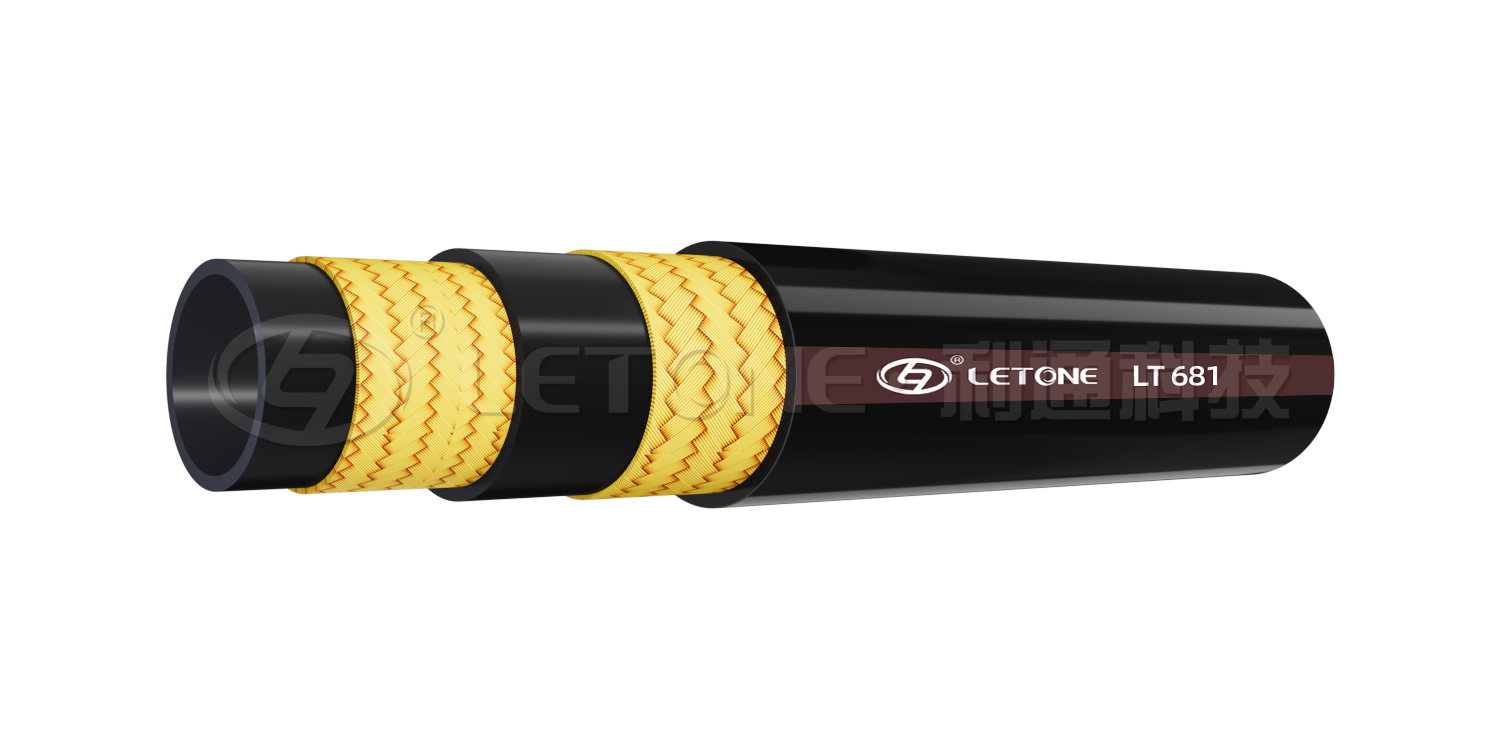

Hose Construction
Inner Tubeblack oil resistant synthetic rubber
Reinforcement:one or two braids of high tensile super flexible steel wire
Outer Layer:black oil,weather,and abrasion resistant synthetic rubber
Temperature Range: -40°C to +100°C (-40°F to +212°F)
Application: Suitable to convey water-based,petroleum-based,and biodegradable hydraulic oil.

Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Parameter

SIZE	I.D		W.D		0.D		Max.W.P	P.P	Min.B.P	Min.B.R	W.T
	Min	Max	Min	Max	Min	Max
IN	mm	mm	mm	mm	mm	mm	MPa	MPa	MPa	mm	kg/m
3/16-1	4.6	5.4	9.0	10.0	11.0	12.2	25.0	50.0	100.0	90	0.17
1/4-1	6.2	7.0	10.6	11.6	12.8	14.0	22.5	45.0	90.0	100	0.22
5/16-1	7.7	8.5	12.5	13.5	14.6	15.8	21.5	43.0	85.0	115	0.28
3/8-1	9.3	10.3	14.5	15.7	16.8	18.0	18.0	36.0	72.0	130	0.34
1/2-1	12.3	13.5	17.5	19.0	20.1	21.3	16.0	32.0	64.0	180	0.42
5/8-1	15.5	16.7	20.6	22.2	23.2	24.8	13.0	26.0	52.0	200	0.51
3/4-1	18.6	19.8	24.3	25.5	27.0	29.0	10.5	21.0	42.0	240	0.68
1-1	25.0	26.4	31.9	33.1	35.2	36.8	8.8	17.5	35.0	300	0.96
11/4-1	31.4	33.0	39.2	40.8	42.3	44.7	6.3	13.0	25.0	420	1.19
11/2-1	37.7	39.3	44.9	46.5	48.0	50.4	5.0	10.0	20.0	500	1.34
2-1	50.4	52.0	58.7	60.3	61.8	64.2	4.0	8.0	16.0	630	1.89
3/16-2	4.6	5.4	10.6	11.6	12.7	13.9	41.5	83.0	166.0	90	0.27
1/4-2	6.1	7.0	12.6	13.6	14.4	15.6	40.0	80.0	160.0	100	0.35
5/16-2	7.7	8.5	14.1	15.1	15.7	16.9	35.0	70.0	140.0	115	0.40
3/8-2	9.3	10.3	16.3	17.5	18.1	19.3	33.0	66.0	132.0	130	0.51
1/2-2	12.3	13.5	19.4	20.6	21.6	22.8	27.5	55.0	110.0	180	0.63
5/8-2	15.5	16.7	22.2	23.8	24.6	26.2	25.0	50.0	100.0	200	0.74
3/4-2	18.6	19.8	26.2	27.8	28.8	30.4	21.5	43.0	86.0	240	0.92
1-2	25.0	26.4	33.6	34.8	36.3	37.9	16.5	32.5	66.0	300	1.33
11/4-2	31.4	33.0	43.6	45.0	46.3	48.7	12.5	25.0	50.0	420	1.97
11/2-2	37.7	39.3	49.6	51.4	52.8	55.2	9.0	18.0	36.0	500	2.33
2-2	50.4	52.0	62.3	64.7	65.6	68.0	8.0	16.0	32.0	630	2.88
