Steel Wire Braided Hydraulic Hose
Letone steel wire braided hydraulic hoses use high-strength, ultra-flexible steel wire as the reinforcing layer, making the hose lighter and more flexible. The outer rubber layer generally uses wear-resistant and weather-resistant synthetic rubber, resulting in a longer service life and fully meeting the needs of high-end hose users in machinery and equipment manufacturing.
-
LT681
SAE 100RAT|EN853 SN Wire Braid Hydraulic Hose
- Hose Construction
- Inner Tubeblack oil resistant synthetic rubber
- Reinforcement:one or two braids of high tensile super flexible steel wire
- Outer Layer:black oil,weather,and abrasion resistant synthetic rubber
- Temperature Range: -40°C to +100°C (-40°F to +212°F)
- Application: Suitable to convey water-based,petroleum-based,and biodegradable hydraulic oil.
-
LT682
SAE 100 RAT|EN 853 ST Wire Braid Hydraulic Hose
- Hose Construction
- Inner Tube:black oil resistant synthetic rubber
- Reinforcement:one or two braids of high tensile super flexible steel wire
- Outer Layer: black oil,weather,and abrasion resistant synthetic rubbe
- Temperature Range: -40°C to +100°C (-40°F to +212°F)
- Application:Suitable to convey water-based,petroleum-based,and biodegradable hydraulic oil.
-
LT699
ISO 18752-AC/BC Artery Wire Braid Hydraulic Hose
- Hose Construction
- Inner Tube:NBR synthetic rubber
- Reinforcement:one or two braids of high tensile super flexible steel wire,one braid≥300,000 impulse cycles,two braids≥500,000 impulse cycles
- Outer Layer:skiving-free oil,abrasion,and weather resistant synthetic rubber
- Temperature Range:-40℃~+100℃(-40°F~+212°F);-55℃~+100℃(-67°F~+212°F)
- Application:Remarkable performance on high pressure and high impulse.Widely apply to excavator and other heavy duty construction machinery.
-
LT683
EN857 SC Wire Braid Hydraulic Hose
- Hose Construction
- Inner Tube: Black oil resistant synthetic rubber
- Reinforcement:one or two braids of high tensile super flexible steel wire
- Outer Layer:black oil, weather, and abrasion resistant synthetic rubber
- Temperature Range: -40°C ~ +100°C (-40°F ~ +212°F)
- Application: Suitable to convey water-based, petroleum-based, and biodegradable hydraulic oil.
-
LT685
MT/T98 Wire Braid Hydraulic Hose For Mining
- Hose Construction
- Inner Layer:black oil resistant synthetic rubber
- Reinforcement:one, two, or three braids of high tensile super flexible steel wire
- Outer Layer:black oil, weather,and abrasion resistant synthetic rubber
- Temperature Range: -40°C ~ +100°C (-40°F ~ +212°F)
- Application: Suitable to convey medium like mineral oil, water-based hydraulic oil, or water in coal mining machinery such as coal mining hydraulic support and coal shearer.
-
LT686
MT/T98 Wire Braid Hydraulic Hose For Mining
- Hose Construction
- Inner Tube:black oil resistant synthetic rubber
- Reinforcement:one or two braids of high tensile super flexible steel wire
- Outer Layer:oil,weather,and abrasion resistant synthetic rubber
- Temperature Range: -40°C ~ +100°C (-40°F ~ +212°F)
- Application:Suitable to convey medium like mineral oil,water-based hydraulic oil,or water in coal mining machinery such as coal mining hydraulic support and coal shearer.
-
LT687
SAE 100R16 Wire Braid Hydraulic Hose
- Hose Construction
- Inner Tube:black hot oil resistant synthetic rubber
- Reinforcement:one or two braids of high tensile super flexible steel wire
- Outer Layer:black oil,weather,and abrasion resistant synthetic rubber
- Temperature Range:-40°C ~ +121°C (-40°F ~ +250°F)
- Application:Suitable to convey water-based,petroleum-based,and biodegradable hydraulic oil.
-

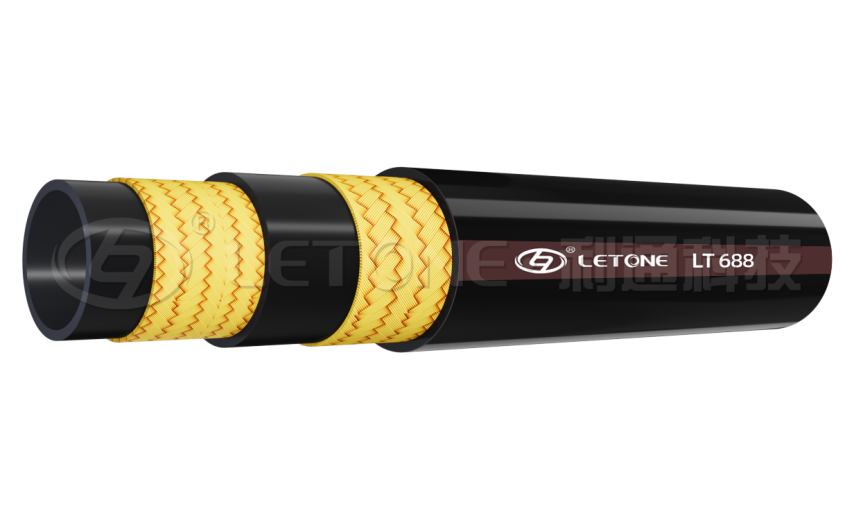

LT688
SAE 100R17 Wire Braid Hydraulic Hose
- Hose Construction
- Inner Tube:black oil resistant synthetic rubber
- Reinforcement:one or two braids of high tensile super flexible steel wire
- Outer Layer:black oil,weather,and abrasion resistant synthetic rubber
- Temperature Range: -40°C ~ +100°C (-40°F ~ +212°F)
- Application:Suitable to convey water-based,petroleum-based,and biodegradable hydraulic oil.
-
LT689
SAE 100R19 Compact Wire Braid Hydraulic Hose
- Hose Construction
- Inner Tube:black oil resistant synthetic rubber
- Reinforcement:one or two braids of high tensile super flexible steel wire
- Outer Layer:black oil,weather,and abrasion resistant synthetic rubber
- Temperature Range:-40°C ~ +100°C (-40°F ~ +212°F)
- Application:Suitable to convey water-based,petroleum-based,and biodegradable hydraulic oil.
