ISO18752-CC hydraulic hoses, hydraulic hoses for mining machinery

LTSA599-FH

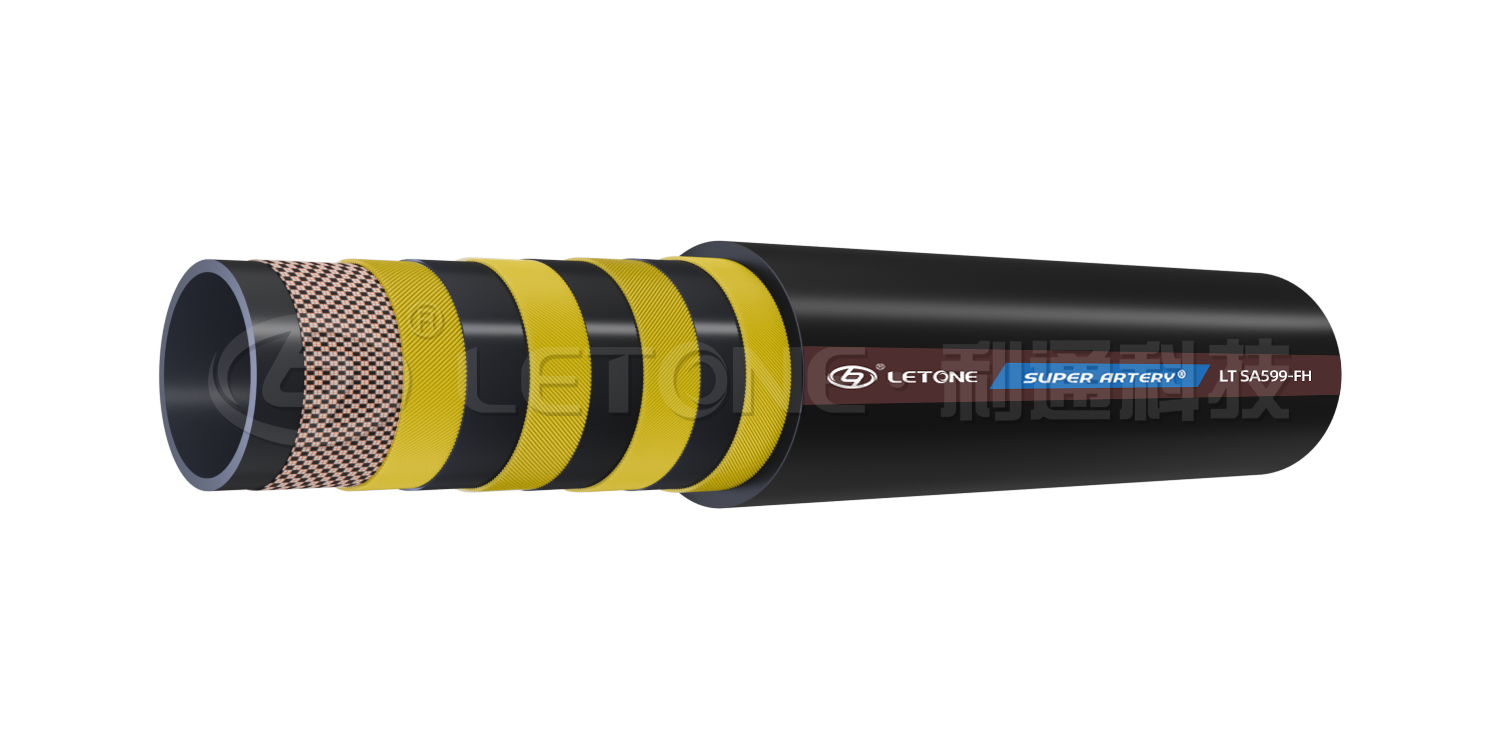

Super Artery Ultra-Soft Hose Assembly

Hose Construction
Inner Tube: Oil-resistant synthetic rubber
Reinforcement: Four layers of wound high-strength ultra-flexible steel wire
Outer Cover: Wear-resistant, weather-resistant synthetic rubber (weather-resistant for 5 years, 3-year warranty)
Features: Low Bend Radius – bending radius reduced by 50% compared to DIN EN853 standard; High Pressure – pressure increased by 30%~40% compared to DIN EN853 standard; Long Life.
Hose Fittings: Made of high-quality carbon structural steel, core material is 45# steel, nut material is 35# steel, sleeve is 20# steel, compliant with metric, imperial and American national standards. Hose fitting seals use hydrogenated nitrile rubber (aging-resistant for over 10 years). When used with LETONE dedicated one-piece hose fittings, pulse >= 1,000,000 cycles.
Temperature Range: -40°C to +100°C (-40°F to +212°F)
Compliance Standard: ISO 18752-CC
Application: Suitable for excavators and other various construction machinery, construction equipment, mining machinery and agricultural machinery operating under harsh working conditions to convey water-based, petroleum-based hydraulic oil and biodegradable hydraulic oil

Data Display
