LT682

SAE 100 RAT|EN 853 ST Wire Braid Hydraulic Hose

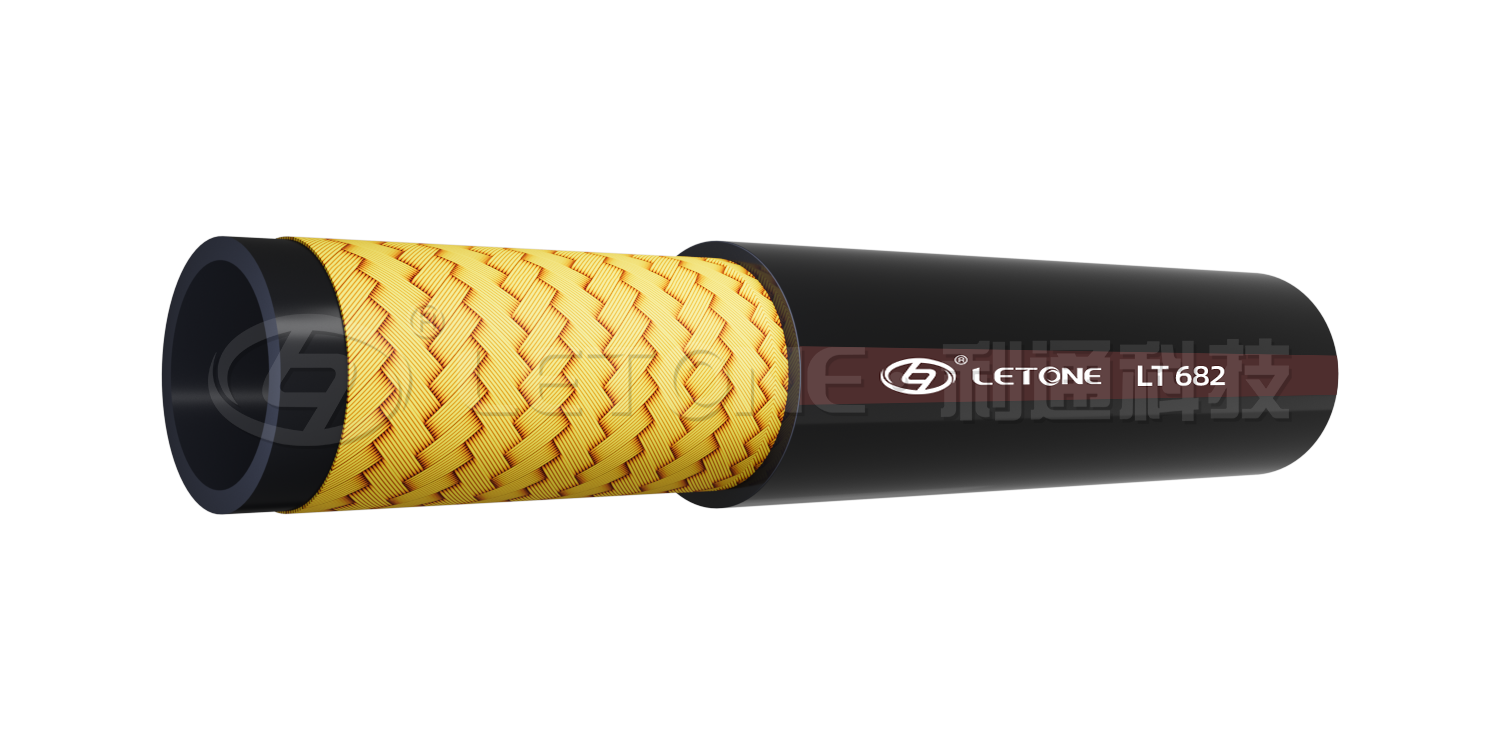

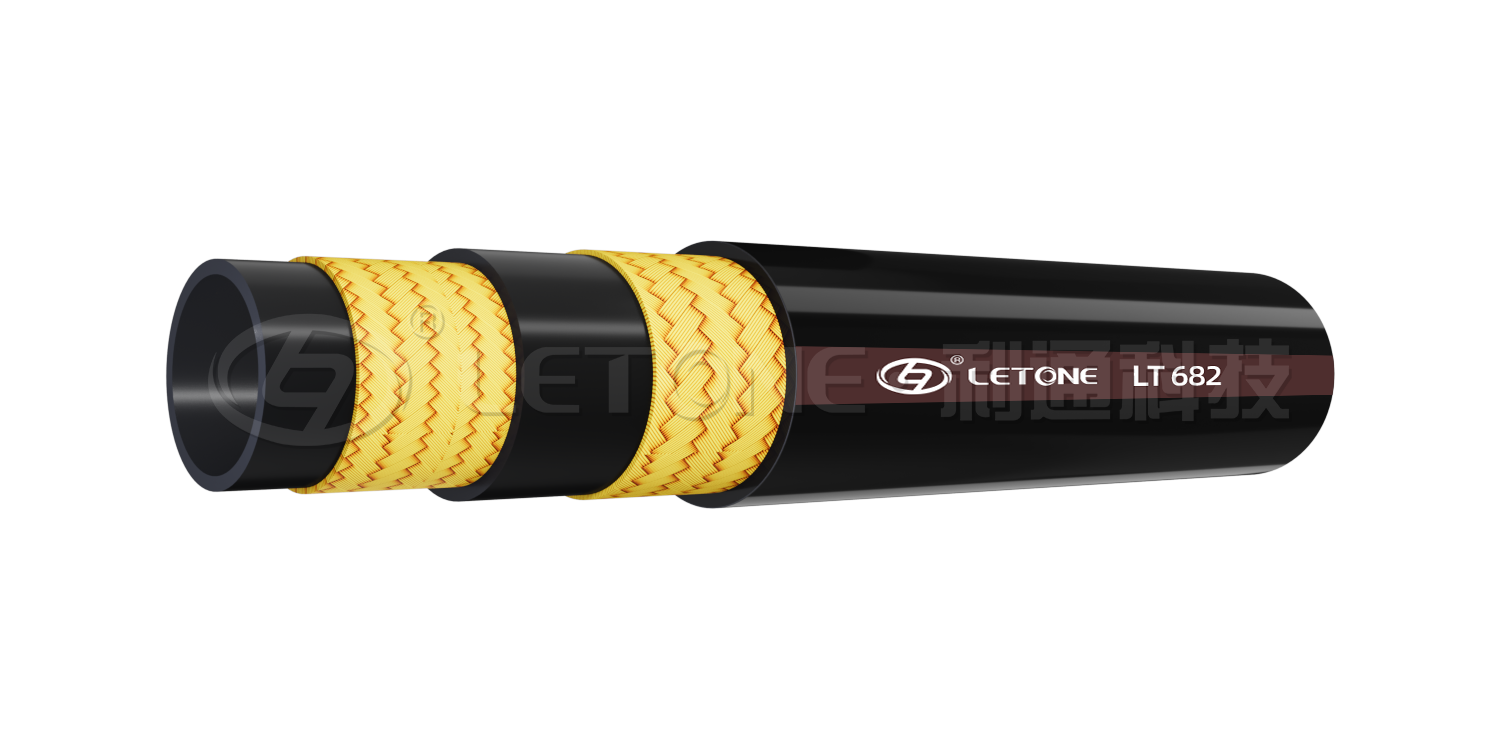

Hose Construction
Inner Tube:black oil resistant synthetic rubber
Reinforcement:one or two braids of high tensile super flexible steel wire
Outer Layer: black oil,weather,and abrasion resistant synthetic rubbe
Temperature Range: -40°C to +100°C (-40°F to +212°F)
Application:Suitable to convey water-based,petroleum-based,and biodegradable hydraulic oil.

Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Parameter

SIZE	I.D		W.D		0.D		Max.W.P	P.P	Min.B.P	Min.B.R	W.T
	Min	Max	Min	Max	Min	Max
IN	mm	mm	mm	mm	mm	mm	MPa	MPa	MPa	mm	kg/m
3/16-1	4.6	5.4	9.0	10.0	11.5	12.9	25.0	50.5	100.0	90	0.18
1/4-1	6.2	7.0	10.6	11.6	14.6	16.0	22.5	45.0	90.0	100	0.27
5/16-1	7.7	8.5	12.5	13.5	16.2	17.6	21.5	43.0	85.0	115	0.33
3/8-1	9.3	10.3	14.5	15.7	18.5	19.9	18.0	36.0	72.0	130	0.40
1/2-1	12.3	13.5	17.5	19.0	21.8	23.4	16.0	32.0	64.0	180	0.50
5/8-1	15.5	16.7	20.6	22.2	24.7	26.3	13.0	26.0	52.0	200	0.58
3/4-1	18.6	19.8	24.3	25.5	28.7	30.3	10.5	21.0	42.0	240	0.73
1-1	25.0	26.4	31.9	33.1	36.3	37.9	8.8	17.5	35.0	300	1.04
11/4-1	31.4	33.0	39.2	40.8	43.3	45.7	6.3	15.0	25.0	420	1.28
11/2-1	37.7	39.3	44.9	46.5	49.8	52.2	5.0	10.0	20.0	500	1.51
2-1	50.4	52.0	58.7	60.3	64.3	66.7	4.0	8.0	16.0	630	2.20
3/16-2	4.6	5.4	10.6	11.6	14.6	16.0	41.5	83.0	165.0	90	0.33
1/4-2	6.1	7.0	12.6	13.6	16.3	17.7	40.0	80.0	160.0	100	0.42
5/16-2	7.7	8.5	14.1	15.1	18	19.4	35.0	70.0	140.0	115	0.47
3/8-2	9.3	10.3	16.3	17.5	20.3	21.7	33.0	66.0	132.0	130	0.60
1/2-2	12.3	13.5	19.4	20.6	23.4	25.0	27.5	55.0	110.0	180	0.73
5/8-2	15.5	16.7	22.2	23.8	26.6	28.2	25.0	50.0	100.0	200	0.85
3/4-2	18.6	19.8	26.2	27.8	30.6	32.2	21.5	43.0	85.0	240	1.03
1-2	25.0	26.4	33.6	34.8	37.7	39.3	16.5	32.5	65.0	300	1.44
11/4-2	31.4	33.0	43.6	45.0	48.0	50.4	12.5	25.0	50.0	420	2.14
11/2-2	37.7	39.3	49.6	51.4	54.4	56.8	9.0	18.0	36.0	500	2.50
2-2	50.4	52.0	62.3	64.7	67.0	69.4	8.0	16.0	32.0	630	3.07
