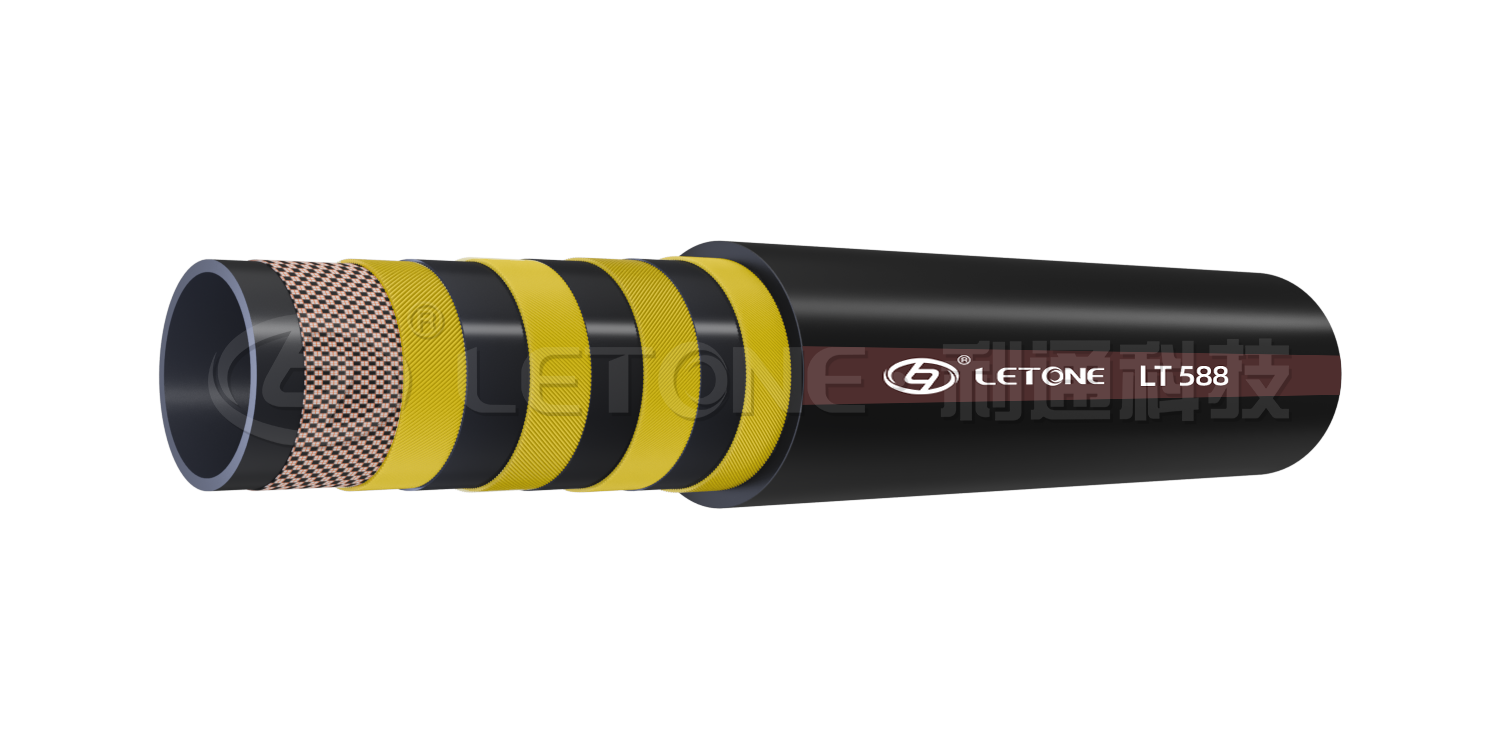

EN 856-4SH | MSHA | MA Wire Spiral Hydraulic Hose
24 Hours Service Hotline
+86-0371-55157686
| Specification | Specification | I.D | W.D | O.D | Max.W.P | P.P | Min.B.P | Min.B.R | W.T | |||
| SIZE | SIZE | Min | Max | Min | Max | Min | Max | |||||
| DASH | IN | mm | mm | mm | mm | mm | mm | MPa | MPa | MPa | mm | kg/m |
| -10 | 5/8 | 15.5 | 16.7 | 23.9 | 25.1 | 26.0 | 28.0 | 45 | 90 | 180 | 250 | 1.15 |
| -12 | 3/4 | 18.6 | 19.8 | 27.6 | 29.2 | 30.0 | 32.0 | 42 | 84 | 168 | 280 | 1.54 |
| -16 | 1 | 25.0 | 26.4 | 34.4 | 36.0 | 37.0 | 39.0 | 38 | 76 | 152 | 340 | 2.02 |
| -20 | 1 1/4 | 31.4 | 33.0 | 40.9 | 42.9 | 43.8 | 46.2 | 32.5 | 65 | 130 | 460 | 2.48 |
| -24 | 1 1/2 | 37.7 | 39.3 | 48.1 | 50.1 | 51.3 | 53.7 | 29 | 58 | 116 | 560 | 3.18 |
| -32 | 2 | 50.4 | 52.0 | 62.2 | 64.2 | 65.3 | 67.7 | 25 | 50 | 100 | 700 | 4.46 |
The items marked with * are for reference only; the actual specifications are subject to the hose body.
