LT599

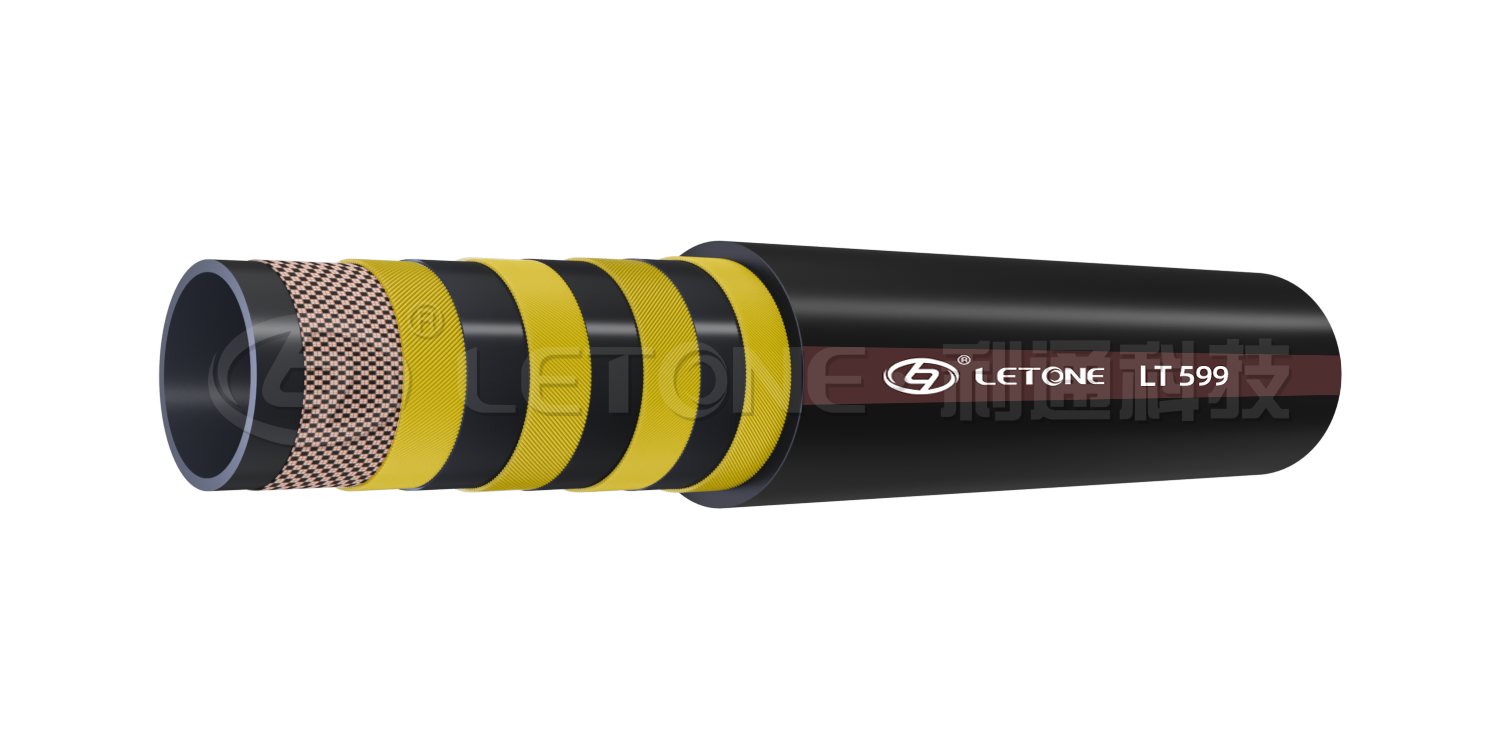

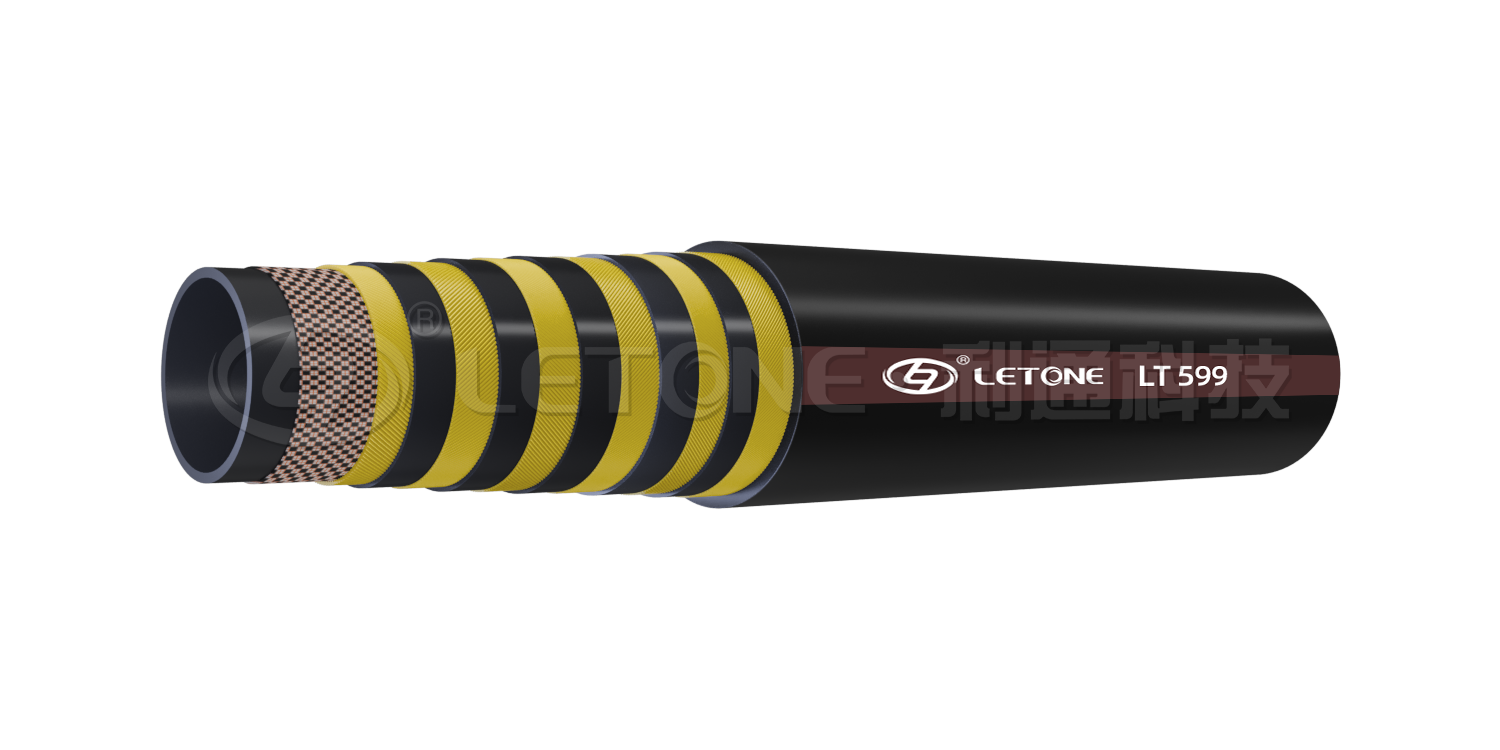

ISO18752-CC Artery Wire Spiral Hydraulic Hose

Hose Construction
Inner Tube: NBR synthetic rubber
Reinforcement: Four or six plies of spiraled high tensile steel wire,tested with 800,000 impulse cycles without leakage
Outer Cover: Skiving-free abrasion and weather resistant synthetic rubber
Temperature Range: -40°C to +121°C (-40°F to +250°F)
-55°C to +100°C (-67°F to +212°F)
Application: Remarkable performance on high pressure and highimpulse. Widely apply to excavator and other heavy duty construction machinery.

Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Data Display

TYPE	ImperialStandard	Metric Specifications	I.D		W.D		O.D		MAX.W.P	P.P	MIN.B.P	MIN.Impulse	MIN.B.R	W.T
	SIZE	SIZE	MIN	MAX	MIN	MAX	MIN	MAX	MAX.W.P	P.P	MIN.B.P	10k	MIN.B.R	W.T
	IN	MM	MIN	MAX	MIN	MAX	MIN	MAX	MPA	MPA	MPA	CYCLES	MM	Kg/m
-4	1/4-4S	6.2	6.0	6.8	15.0	16.2	18.0	20.0	69	138	276	50	120	0.60
-6	3/8-4S	10	9.5	10.5	17.8	19.0	20.5	22.5	56	112	224	50	150	0.71
-8	1/2-4S	12.5	12.8	13.5	19.8	21.0	21.8	23.8	42	84	168	80	190	0.82
-10	5/8-4S	16	15.9	16.6	23.9	25.1	26.0	28.0	42	84	168	80	200	1.15
-12	3/4-4S	19	18.8	19.6	27.9	29.1	30.0	32.0	42	84	168	80	224	1.56
-16	1-4S	25	25.0	25.8	34.4	36.4	36.8	39.2	42	84	168	80	272	2.13
-20	1 1/4-4S	31.5	31.6	32.6	40.9	42.9	43.3	45.7	35	70	140	80	370	2.56
-24	1 1/2-4S	38	37.8	38.8	48.1	50.1	51.3	53.7	32	64	128	80	540	3.18
-32	2-4S	51	50.7	52	62.6	63.8	65.6	67.4	25	50	100	80	660	4.46
-20	1 1/4-6S	31.5	31.6	32.6	46.0	48.0	48.8	51.2	42	84	168	80	420	4.07
-24	1 1/2-6S	38	37.7	38.8	52.0	54.0	54.8	57.2	42	84	168	80	500	4.63
-32	2-6S	51.5	51.6	51.8	66.4	67.6	69.1	70.9	42	84	168	80	650	6.32

The items marked with * are for reference only; the actual specifications are subject to the hose body.
