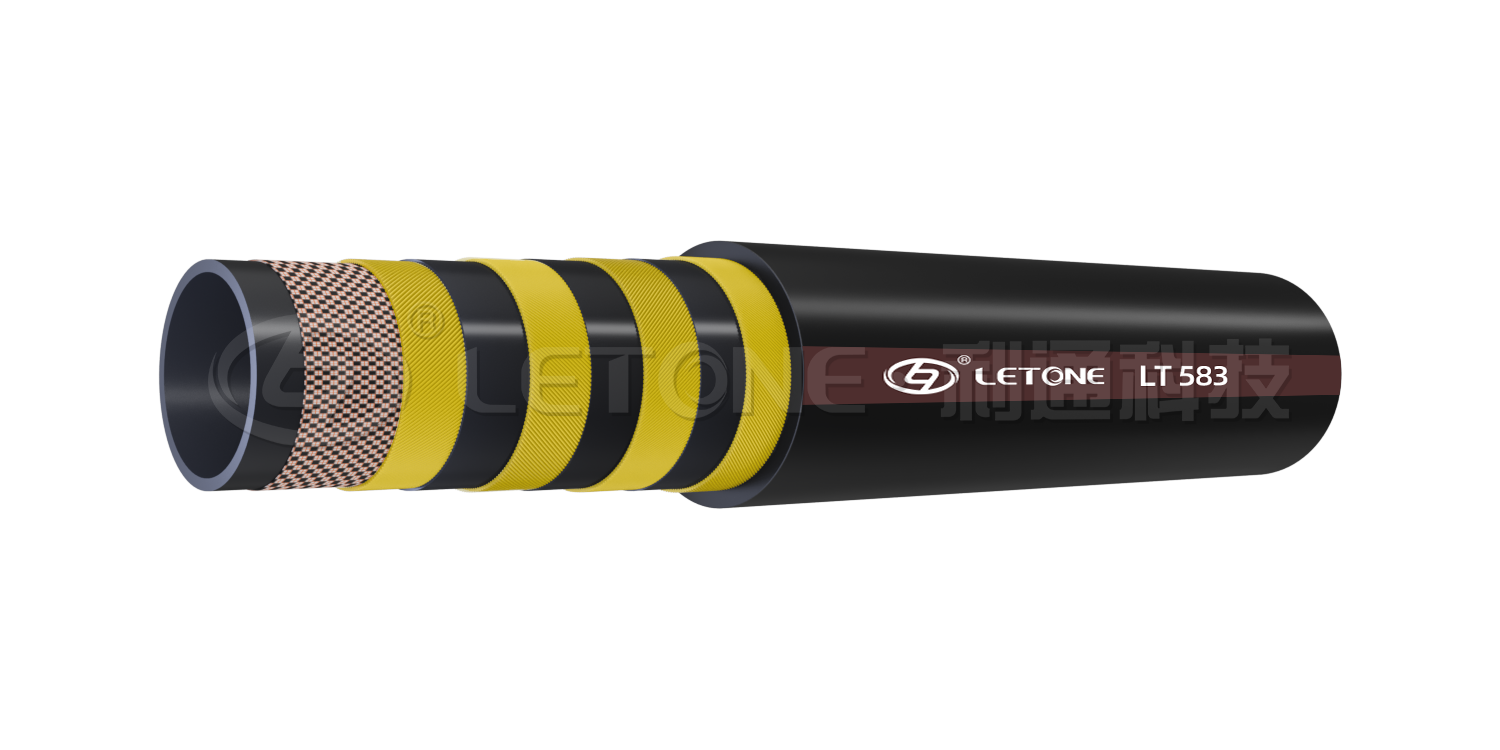

EN856-4SP|Msha Wire Spiral Hydraulic Hose
24 Hours Service Hotline
+86-0371-55157686
| SIZE | I.D | W.D | 0.D | Max.W.P | P.P | Min.B.P | Min.B.R | W.T | ||||
| Min | Max | Min | Max | Min | Max | |||||||
| DASH | IN | mm | mm | mm | mm | mm | mm | MPa | MPa | MPa | mm | kg/m |
| -4 | 1/4 | 6.2 | 7.0 | 14.3 | 15.5 | 16.6 | 18.6 | 45 | 90 | 180 | 150 | 0.60 |
| -6 | 3/8 | 9.5 | 10.5 | 16.9 | 18.1 | 19.1 | 21.1 | 44.5 | 89 | 178 | 180 | 0.71 |
| -8 | 1/2 | 12.5 | 13.5 | 19.8 | 21.0 | 21.8 | 23.8 | 41.5 | 83 | 166 | 230 | 0.82 |
| -10 | 5/8 | 15.5 | 16.7 | 23.0 | 24.6 | 25.4 | 27.4 | 35 | 70 | 140 | 250 | 1.01 |
| -12 | 3/4 | 18.6 | 19.8 | 27.4 | 29.0 | 30.0 | 32.0 | 35 | 70 | 140 | 300 | 1.43 |
| -16 | 1 | 25.0 | 26.4 | 34.5 | 36.1 | 37.0 | 39.0 | 32 | 64 | 128 | 340 | 1.97 |
| -20 | 11/4 | 31.4 | 33.0 | 45.0 | 46.4 | 47.4 | 49.8 | 21 | 42 | 84 | 460 | 2.96 |
| -24 | 11/2 | 37.7 | 39.3 | 50.9 | 52.3 | 53.8 | 56.2 | 18.5 | 37 | 74 | 560 | 3.42 |
| -32 | 2 | 50.4 | 52.0 | 64.3 | 66.3 | 66.9 | 69.3 | 16.5 | 33 | 66 | 660 | 4.77 |
