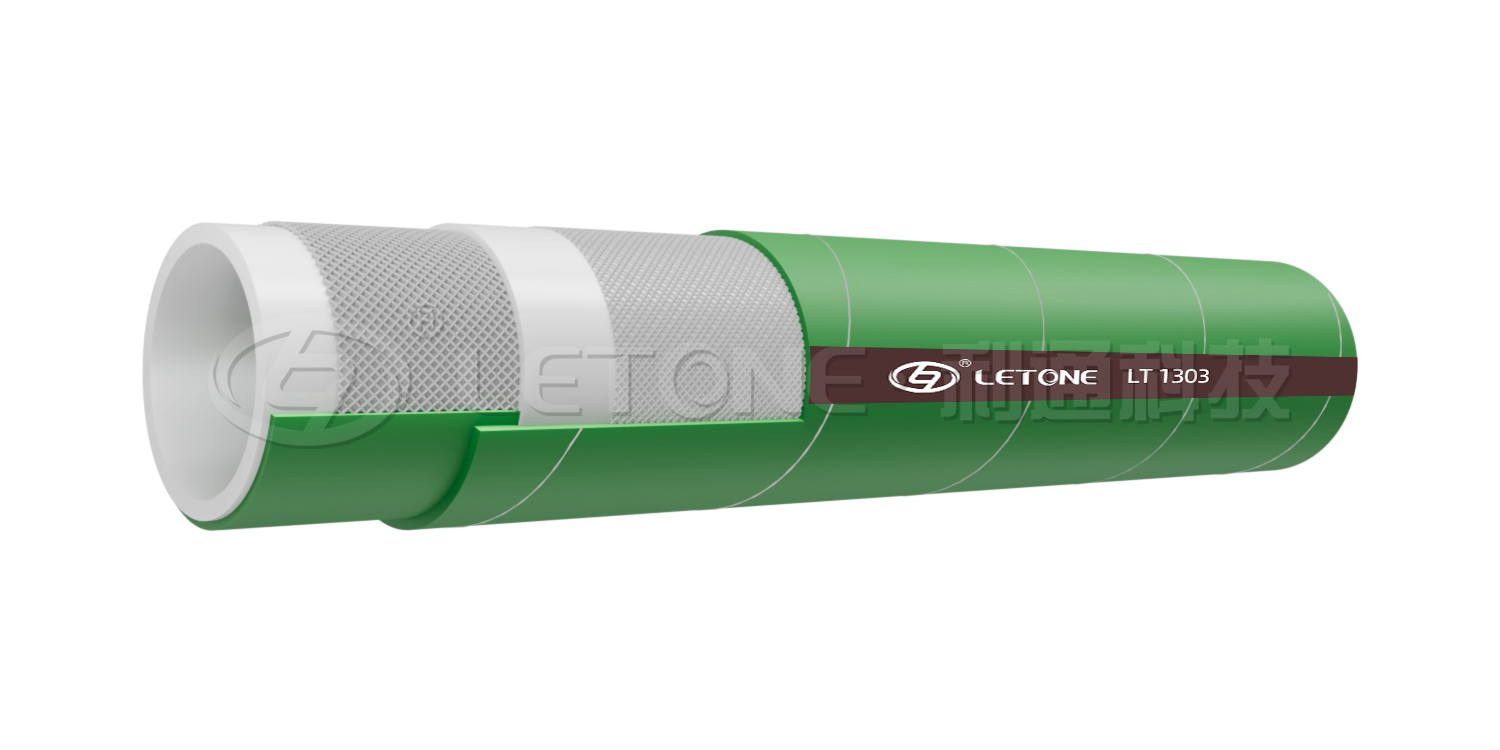

LT1303
Bulk Food S&D Hose-FDA
Applications:Suction and discharge of wet or dry abrasives. For the transfer of cereals, flour, and globular foods

Inner Tube:white NR-abrasion resistant
Reinforcement:Spiralled high tensile textile cords and high flexibility spiral steel wire and static wire
Outer Layer:Green SBR/EPDM blend rubber, abrasion-resistant, oxidation-resistant
Working pressure:10Bar(150PSI)for2",3",4"; 5Bar(75PSI)for5",6",8"
Temperature Range:-30℃(-22°F)~+80℃(+176°F)
Bulk Food S&D Hose-FDA
Parameter
Specifications
Series ID(in.) ID(mm) OD(in.) OD(mm) MaxRec.WP(PSI) Vacuum HG(in.) Min.B.R Weight(kg/m)
LT1303-200 2 51 2.64 67 150 30 6 1.83
LT1303-300 3 76 3.62 92 150 27 9 2.84
LT1303-400 4 102 4.65 118 150 27 12 3.91
LT1303-500 5 127 5.71 145 75 24 20 5.67
LT1303-600 6 152 6.69 170 75 24 24 7.02
LT1303-800 8 203 8.78 223 75 21 32 10.43
Note: Proper electrostatic grounding wire will prolong the hose life.

Note: The actual parameters are subject to the final atlas
