LT1302-A/LT1302-B

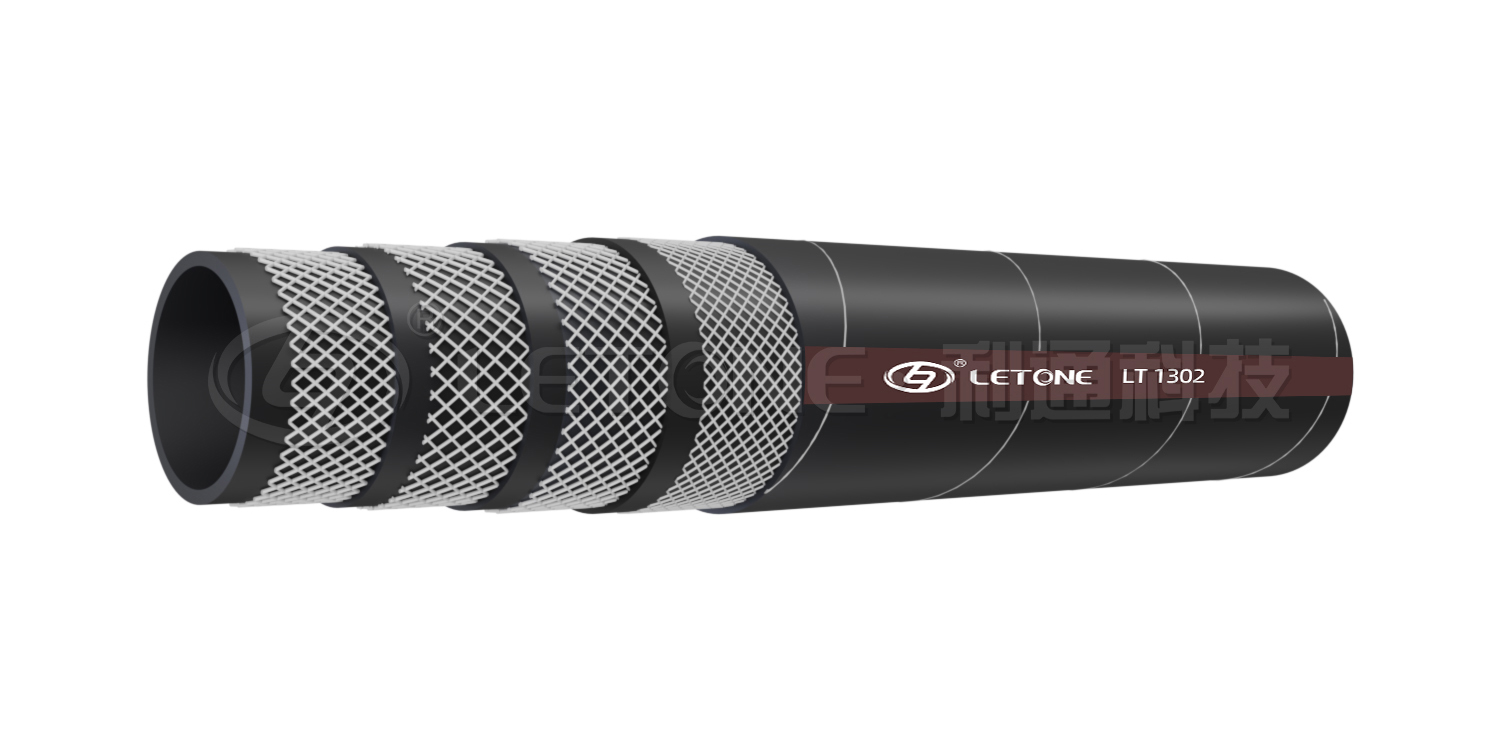

150PSI 4-Ply Abrasive Material Blast Hose
Application:Designed to transport abrasive, sandblasting and shot-blasting materials

Inner Tube:Black static conducting natural rubber-offering escellent abrasion resistance
Reinforcement:High tensile textile cords-4-ply construction
Outer Layer:Black or green SBR/NR mixed conductive rubber, abrasion resistant, ozone resistant-pin pricked
Working Pressure:10Bar(150PSI)
Temperature Range:-30℃(-22°F)~+80℃(+176°F)
150PSI 4-Ply Abrasive Material Blast Hose
Parameter
Specifications
Series ID(in.) ID(mm) OD(in.) OD(mm) Wall Thickness(mm) MaxRec.WP(PSI) Weight(kg/m)
LT1302A/B-075 3/4 19 1.50 38 0.236 150 1.01
LT1302A/B-100 1 25 1.89 48 0.283 150 1.55
LT1302A/B-125 11/4 32 2.17 55 0.283 150 1.83
LT1302A/B-150 11/2 38 2.36 60 0.260 150 2.08
LT1302A-300 2 51 2.87 73 0.260 150 2.63
  Note: Errors should be based on RMA-Class 311-A standard
HOSE ID(in.) HOSE ENDS NOZZLE HOLDERS THEEADED FEMALE ADAPTER GASKETS
3/4 Q-1AL,Q-1BR,Q-1P1 NH-1AL,NH-1BR - SBG
1 Q-2AL,Q-2BR,Q-2PI NH-2AL,NH-2BR - SBG
1 1/4 Q-3AL,Q-3BR,Q-3PI NH-3AL,NH-3BR SB-1AL,SB-1BR SBG
1 1/2 Q-4AL,Q-4BR,Q-4PI NH-4AL,NH-4BR SB-2AL,SB-2BR SBG


Note: The actual parameters are subject to the final atlas
