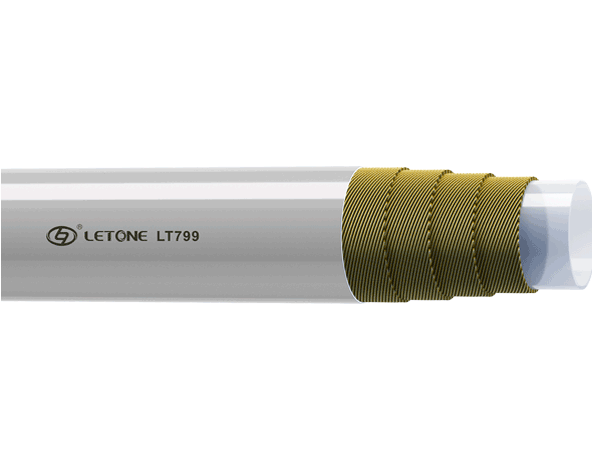

LT799 4SH
Ultra high pressure resin hose
Scope of application:water jet industry, especially suitable for water guns

Pressure range: 760 ~ 1400 bar (15000 ~ 31900psi)
Features:high wear resistance
Features:hydraulic breaking and removal of dirt deposited on the surface
Features:hydraulic breaking and removal of dirt deposited on the surface
Features: small volume expansion under pressure
Nut size::special size for bolt fastening industry
Ultra high pressure resin hose
Parameter
Part number Hose size ID OD WP
dash inch DN mm inch mm inch bar psi
4SH-4-2200 - 5/32 4 4.0 0.157 9.90 0.390 2200 31900
4SH-5-1800 -3 3/16 5 5.1 0.201 11.8 0.465 1800 26100
4SH-6-1640 -4 1/4 6 6.3 0.248 13.3 0.524 1640 23700
4SH-8-1500 -5 5/16 8 8.2 0.323 15.6 0.614 1500 21700
4SH-10-1400 -6 3/8 10 9.9 0.390 18.8 0.740 1400 20300
4SH-12-1300 -8 1/2 12 12.8 0.504 21.6 0.850 1300 18800
4SH-20-1040 -12 3/4 20 18.8 0.740 30.0 1.181 1040 15000
4SH-25-1040 -16 1 25 24.8 0.976 38.3 1.508 1040 15000

Note: The actual parameters are subject to the final atlas
