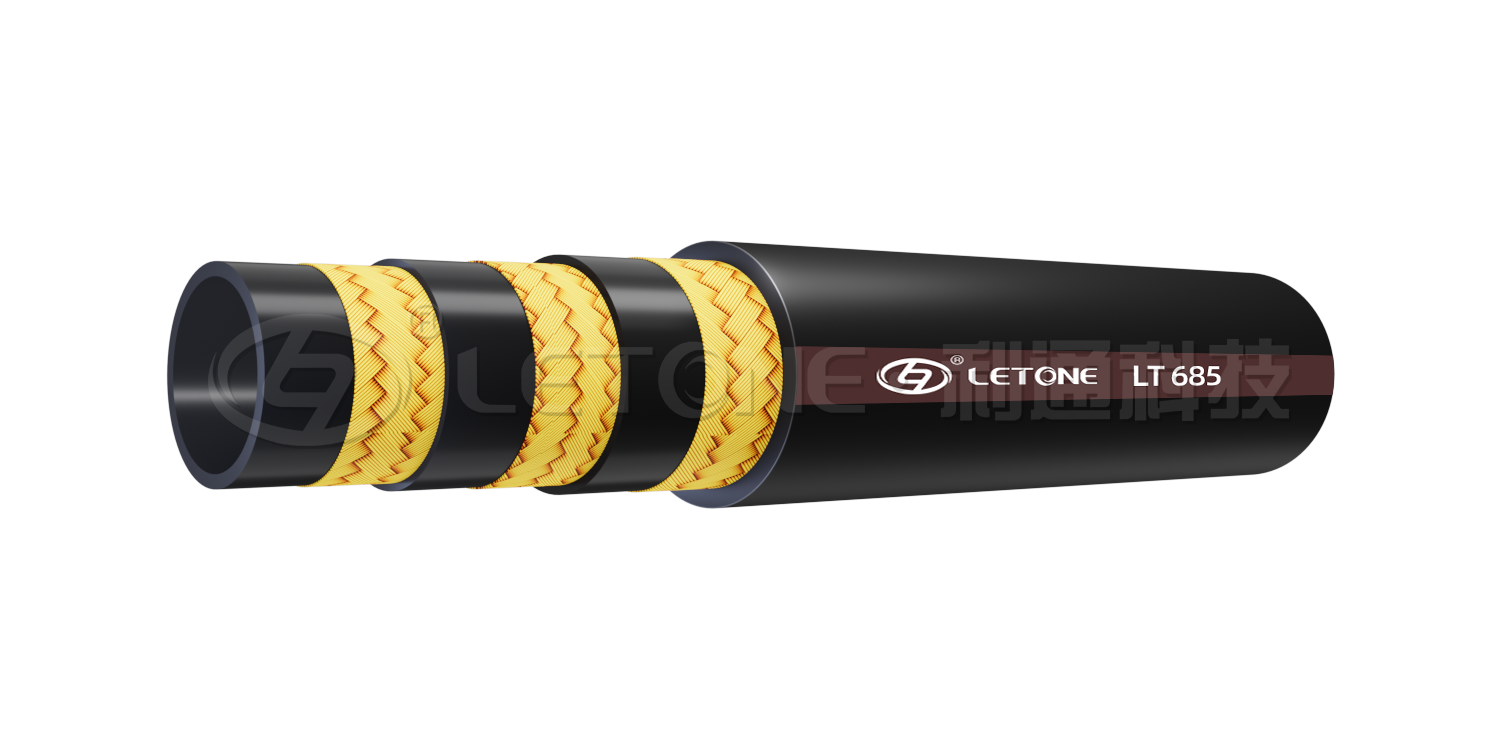

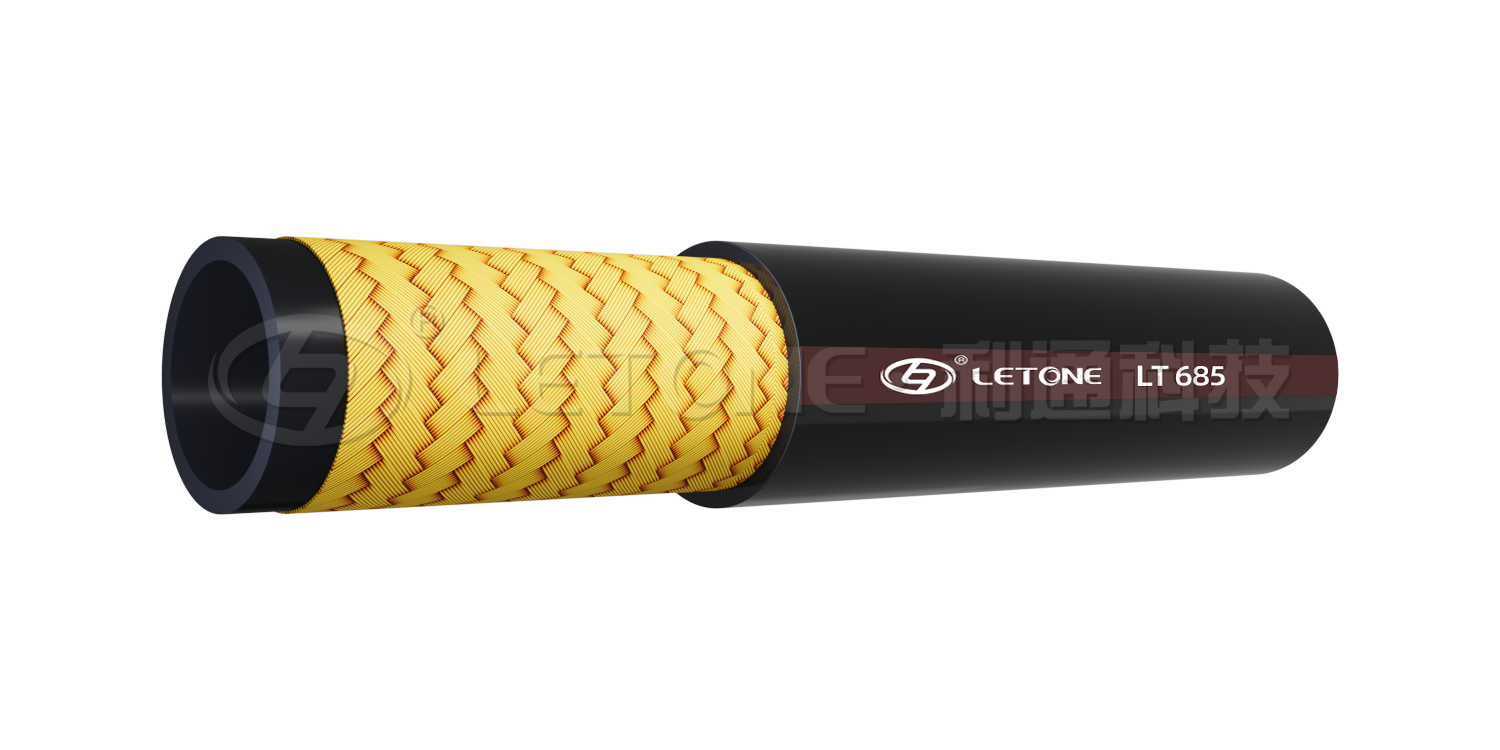

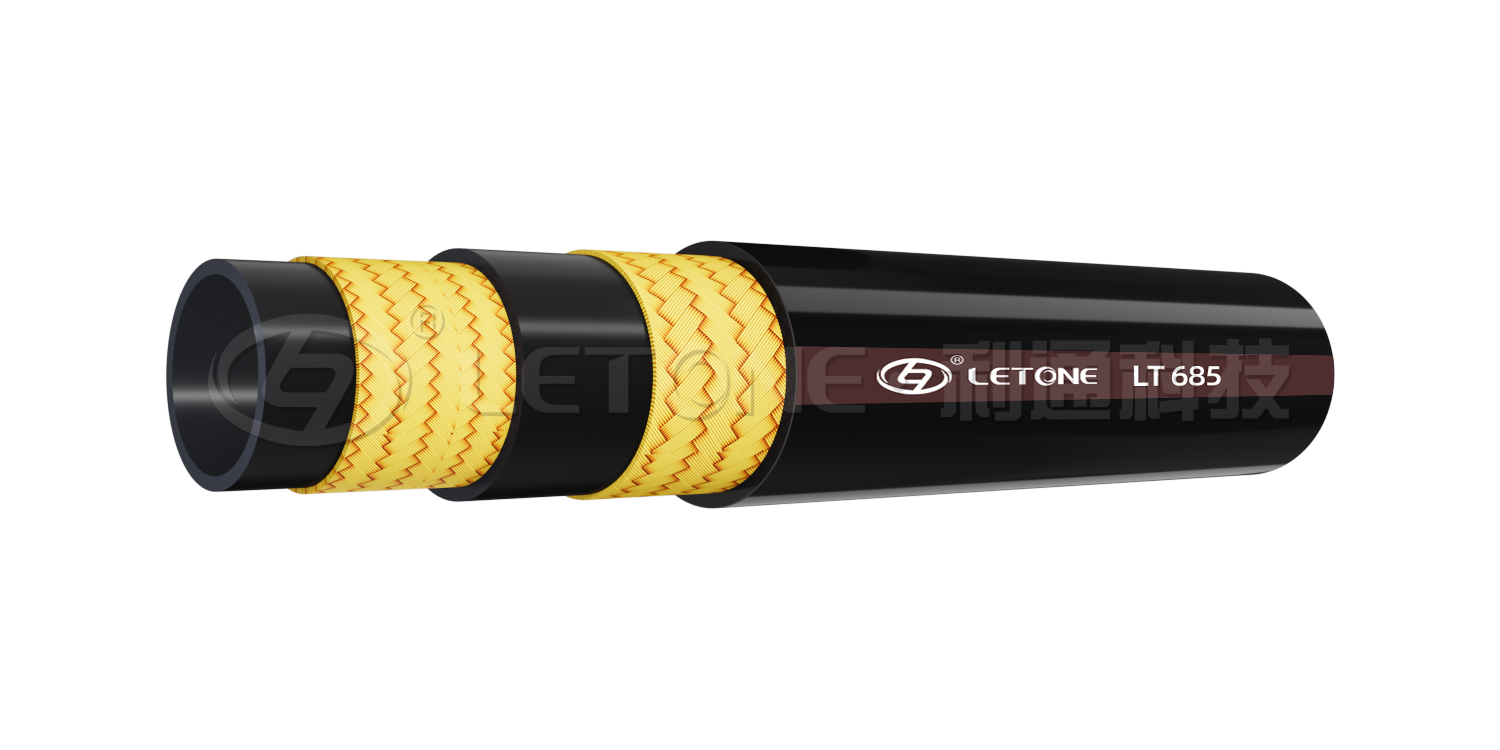

Multi-layer steel wire braided hydraulic hose, high-pressure hose for mining

Data Display

SIZE	I.D mm		W.D mm		O.D mm		Max.W.P	P.P	Min.B.P	Min.B.R	W.T
IN	Min	Max	Min	Max	Min	Max	MPa	MPa	MPa	mm	kg/m
1/4-1	6.1	6.9	11.1	12.1	14.2	15.4	32	40	80	100	0.26
5/16-1	7.8	8.5	13.0	14.0	16.2	17.4	28	35	70	115	0.31
3/8-1	9.8	10.5	15.1	16.1	18.1	19.3	25.6	32	64	130	0.37
1:/2-1	12.8	13.5	18.9	19.9	21.9	23.1	22.4	33.6	56	180	0.48
5/8-1	15.8	16.6	22.0	23.0	24.7	26.3	16.8	21	42	205	0.57
3//4-1	18.8	19.8	25.0	26.0	27.6	29.2	14.4	18	36	240	0.66
7/8-1	21.8	22.8	28.0	29.0	30.6	32.2	12.8	16	32	280	0.73
1-1	25.0	26.0	31.3	32.5	34.2	35.8	11.2	14	28	300	0.86
11/4-1	31.6	33.6	38.3	39.9	41.8	44.2	9.0	11.5	22.5	420	1.15
11/2-1	37.7	39.8	44.8	46.4	48.1	50.3	7.0	9	17.5	500	1.29
13/4-1	44.6	45.6	51.8	53.4	55.4	57.6	5.0	8	12.5	550	1.55
2-1	50.7	52.0	57.8	59.4	61.3	63.7	3.0	6	7.5	630	1.77
1/4-2	6.1	6.9	12.9	13.9	16.0	17.2	60.0	75	150	100	0.40
5/16-2	7.8	8.5	14.9	15.9	18.0	19.2	48.0	60	120	115	0.47
3/8-2	9.8	10.5	16.6	17.6	19.9	21.1	40.0	50	100	130	0.55
1/2-2	12.8	13.5	20.7	21.7	23.7	24.9	36.0	45	90	180	0.71
5/8-2	15.8	16.6	23.4	24.6	26.5	28.1	32.0	40	80	205	0.86
3/4-2	18.8	19.8	26.4	27.6	29.4	31	25.0	31.5	62.5	240	0.95
7/8-2	21.8	22.8	29.5	30.7	32.3	34.1	22.0	27.5	55	280	1.05
1-2	25.0	26.0	32.8	34.0	36	37.6	21.0	26.5	52.5	300	1.25
11/4-2	31.6	33.6	39.8	41.4	43.6	45.8	17.0	21.5	42.5	420	1.57
11/2-2	37.7	39.8	46.4	48.0	49.8	52.2	12.0	15	30	500	1.88
13/4-2	44.6	45.6	53.4	55.0	56.8	59.2	9.0	13.5	22.5	55	2.13
2-2	50.7	52.0	59.4	61.0	62.8	65.2	8.0	12	20	630	2.45
5/16-3	7.8	8.5	16.5	17.5	19.6	20.8	50.0	75	125	115	0.61
3/8-3	9.8	10.5	18.0	19.2	21.5	22.7	45.0	62.5	112.5	130	0.69
1/2-3	12.8	13.5	22.1	23.3	25.5	26.7	40.0	56	100	180	0.94
5/8-3	15.8	16.6	25.1	26.3	28.3	29.9	35.0	43.5	87.5	205	1.16
3/4-3	18.8	19.8	28.1	29.3	31.2	32.8	28.0	35	70.5	240	1.26
7/8-3	21.8	22.8	31.1	32.3	34.2	35.8	25.0	31.5	62.5	280	1.43
1-3	25.0	26.0	34.6	35.6	37.2	38.8	24.0	30	60.5	300	1.59
11/4-3	31.6	33.6	41.4	43.0	45.4	47.6	19.0	24	47.5	420	2.05
11/2-3	37.7	39.8	48.0	49	51.8	54.2	15.0	19	37.5	500	2.44
