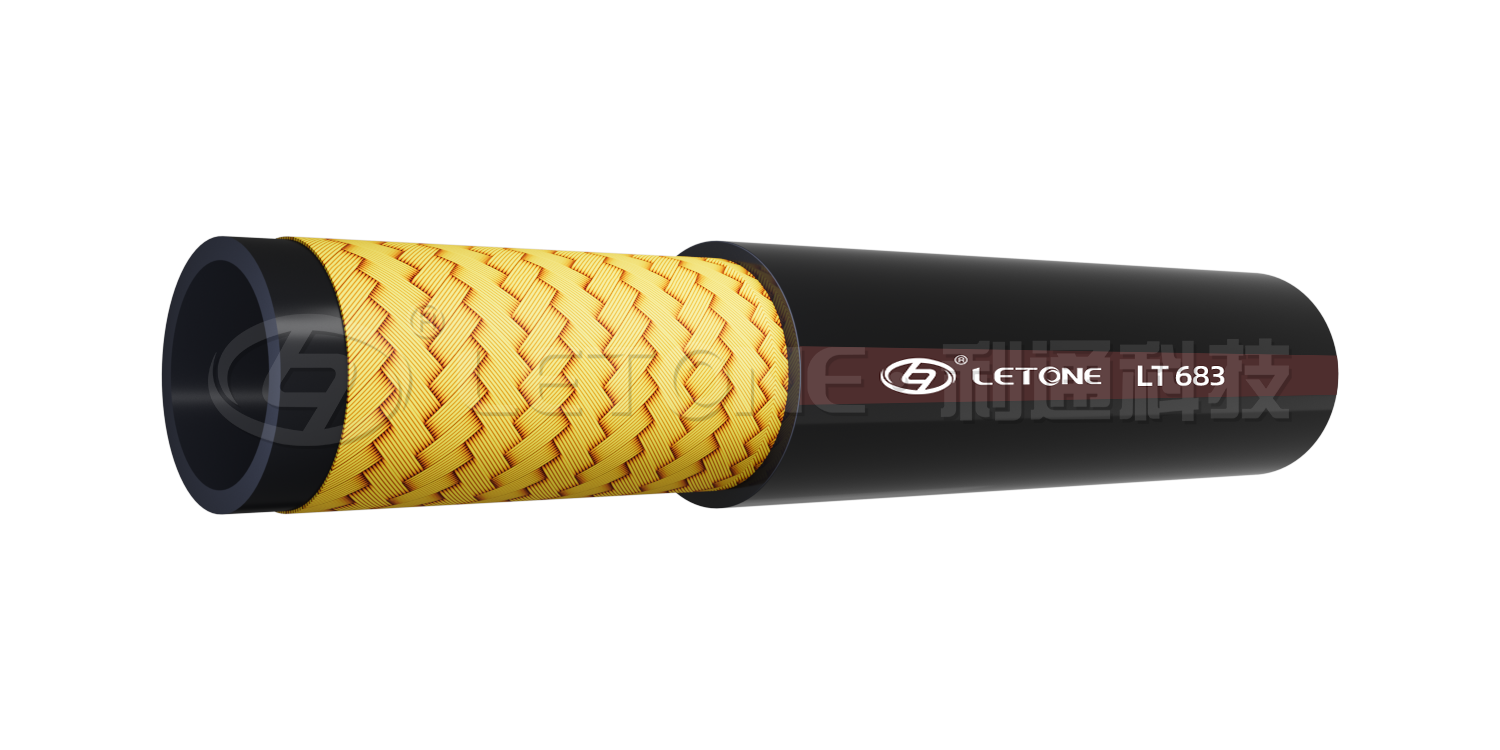

LT683

EN857 SC Wire Braid Hydraulic Hose

Hose Construction
Inner Tube: Black oil resistant synthetic rubber
Reinforcement:one or two braids of high tensile super flexible steel wire
Outer Layer:black oil, weather, and abrasion resistant synthetic rubber
Temperature Range: -40°C ~ +100°C (-40°F ~ +212°F)
Application: Suitable to convey water-based, petroleum-based, and biodegradable hydraulic oil.

Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Data Display

SIZE	I.D mm		W.D mm		O.D mm		Max.W.P		P.P		Min.B.P		Min.B.R	W.T
inch	Min	Max	Min	Max	Min	Max	MPa	psi	MPa	psi	MPa	psi	mm	kg/m
1/4-1	6.1	6.9	9.9	10.9	11.8	13.2	22.5	3260	45	6265	90	13050	75	0.18
5/16-1	7.7	8.5	11.2	12.2	13.1	14.5	21.5	3120	43	6235	86	12470	85	0.20
3/8-1	9.3	10.1	13.3	14.3	15.1	16.5	18	2610	36	5220	72	10440	90	0.27
1/2-1	12.3	13.5	16.4	17.6	18.9	20.3	16	2320	32	4640	64	9280	130	0.35
5/8-1	15.5	16.7	19.8	21.0	21.9	23.3	13	1885	26	3770	52	7540	150	0.42
3/4-1	18.6	19.8	23.1	24.5	25.6	27.2	10.5	1520	21	3045	42	6090	180	0.54
1-1	25.0	26.4	30.5	31.9	33.2	34.8	8.8	1280	17.6	2550	35.5	5100	230	0.78
1/4-2	6.1	6.9	11.2	12.2	12.9	14.3	40	5800	80	11600	160	23200	75	0.28
5/16-2	7.7	8.5	12.8	13.8	14.5	15.9	35	5075	70	10150	140	20300	85	0.32
3/8-2	9.3	10.1	14.9	15.9	16.8	18.2	33	4785	66	9570	132	19140	90	0.43
1/2-2	12.3	13.5	18.0	19.2	20.0	21.6	27.5	3990	55	7975	110	15950	130	0.52
5/8-2	15.5	16.7	21.4	22.6	23.2	24.8	25	3625	50	7150	100	14500	170	0.66
3/4-2	18.6	19.8	25.0	26.4	27.4	29.0	21.5	3120	43	6235	86	12470	200	0.83
1-2	25.0	26.4	32.4	33.8	34.5	36.1	16.5	2390	33	4785	66	9570	250	1.17

The items marked with * are for reference only; the actual specifications are subject to the hose body.
