LTSA699

Exceeds ISO18752-BC Super Artery Wire Braid Hydraulic Hose

  • Hose Construction
  • Inner Layer:CR/NBR synthetic rubber

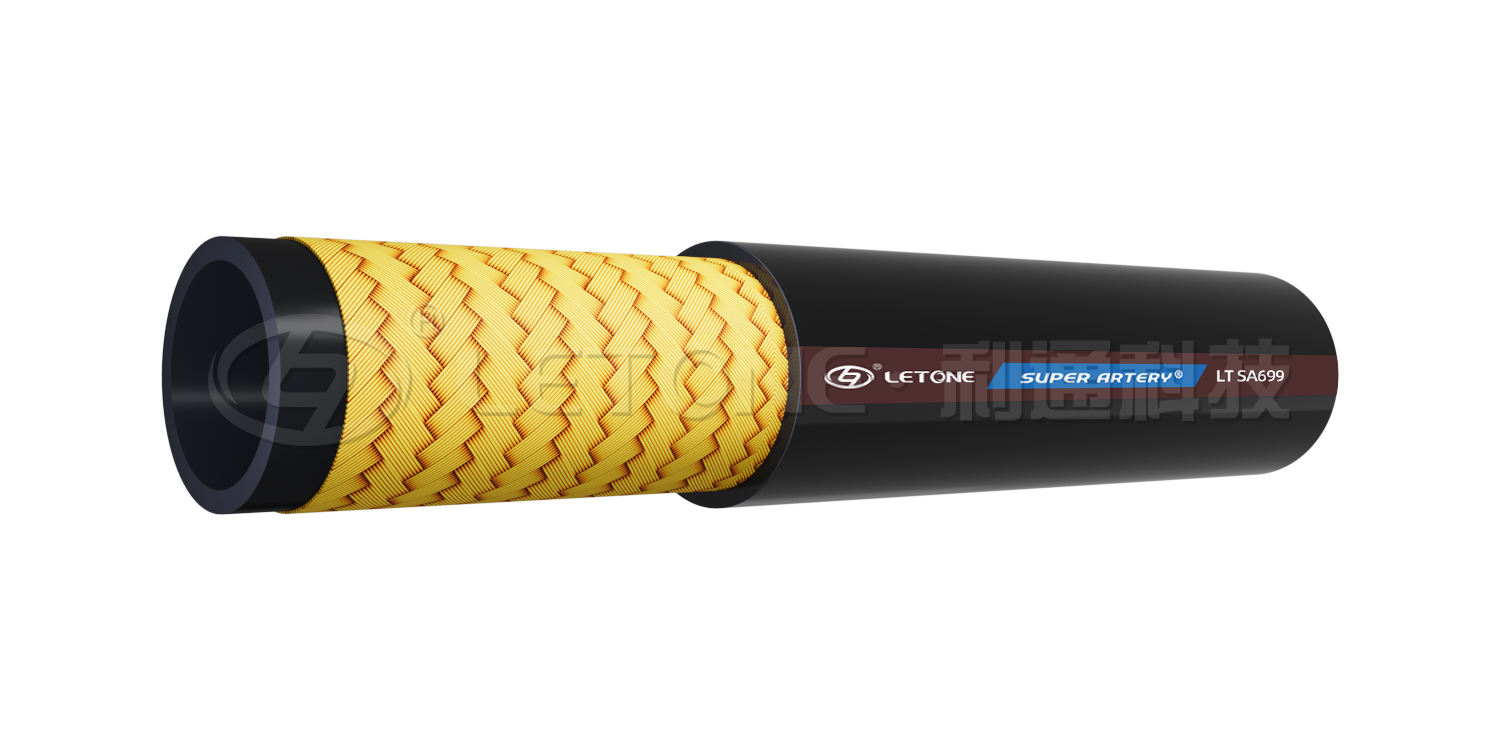

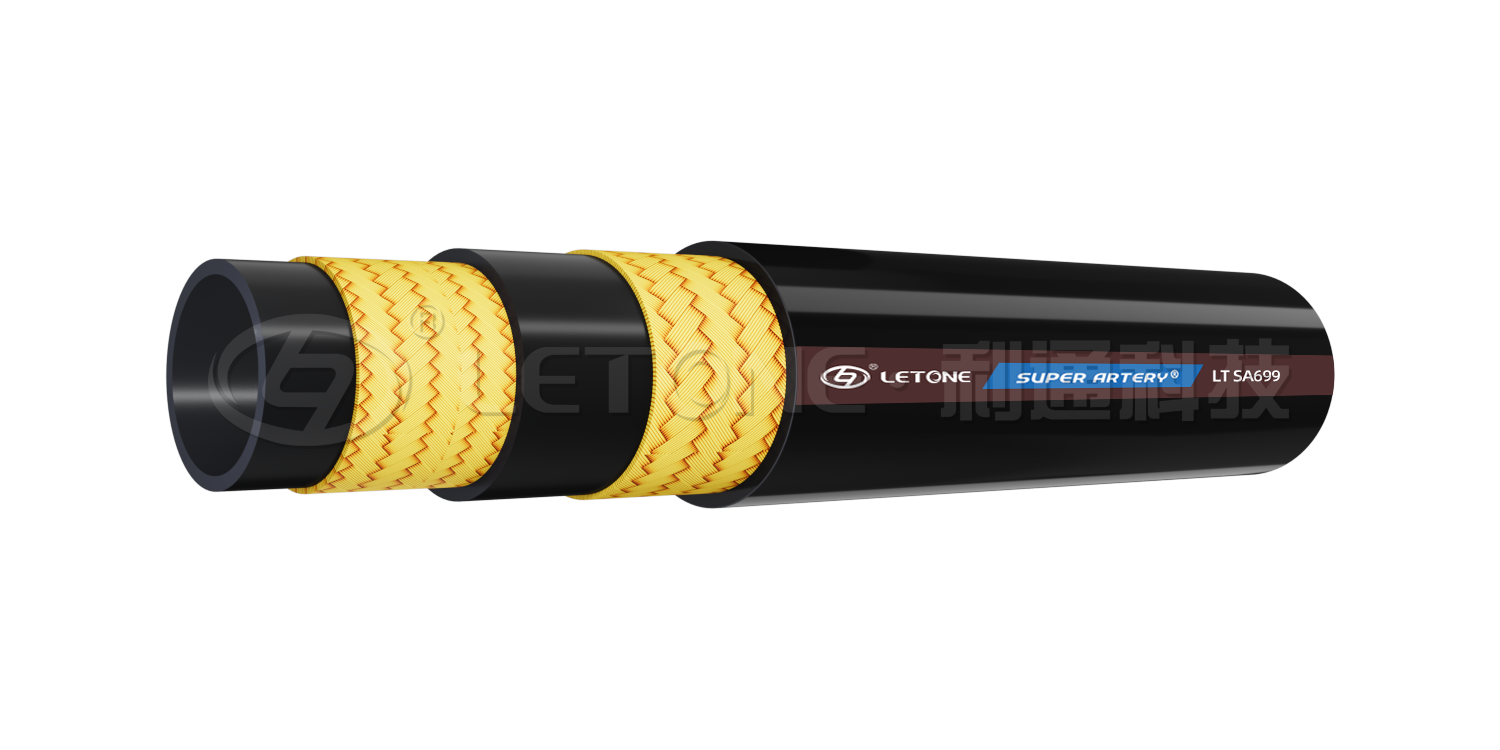

  • Reinforcement:one or two braids of high tensile super flexible steel wire,
    one braid≥300,000 impulse cycles,two braids≥500,000 impulse cycles
  • Outer Layer:skiving-free oil,abrasion,and weather resistant synthetic rubber
  • Temperature Range: -40°C ~ +121°C (-40°F ~ +250°F); -55°C ~ +100°C (-67°F ~ +212°F)
  • Application: Remarkable performance on tight bend radius,high pressure,long service life,and high impulse,weather resistant for more than five years and warrantied for two years with Letone hose fittings and HNBR seals.Widely apply to excavator and other heavy duty construction machinery orhash working environment.
Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Data Display

TYPESIZE I.D.Max.W.P.Min.B.P.Min.B.R.
inchmmMPaMPamm
SA699-1BC/CS1/4"6.429.511840
SA699-1BC/CS5/16"7.92510055
SA699-1BC/CS3/8"9.5239265
SA699-1BC/CS1/2"12.7208080
SA699-1BC/CS5/8"15.91560105
SA699-1BC/CS3/4"191456120
SA699-1BC/CS1"25.41144160
SA699-1BC/CS11/4"31.81040300
SA699-1BC/CS11/2"38.1520480
SA699-1BC/CS2"50.8416560
SA699-2BC/CS1/4"6.44216855
SA699-2BC/CS5/16"7.93815260
SA699-2BC/CS3/8"9.53514070
SA699-2BC/CS1/2"12.731124110
SA699-2BC/CS5/8"15.928112130
SA699-2BC/CS3/4"1925100160
SA699-2BC/CS1"25.42184210
SA699-2BC/CS11/4"31.816.566250
SA699-2BC/CS11/2"38.113.554300
SA699-2BC/CS2"50.8832610

The items marked with * are for reference only; the actual specifications are subject to the hose body.
