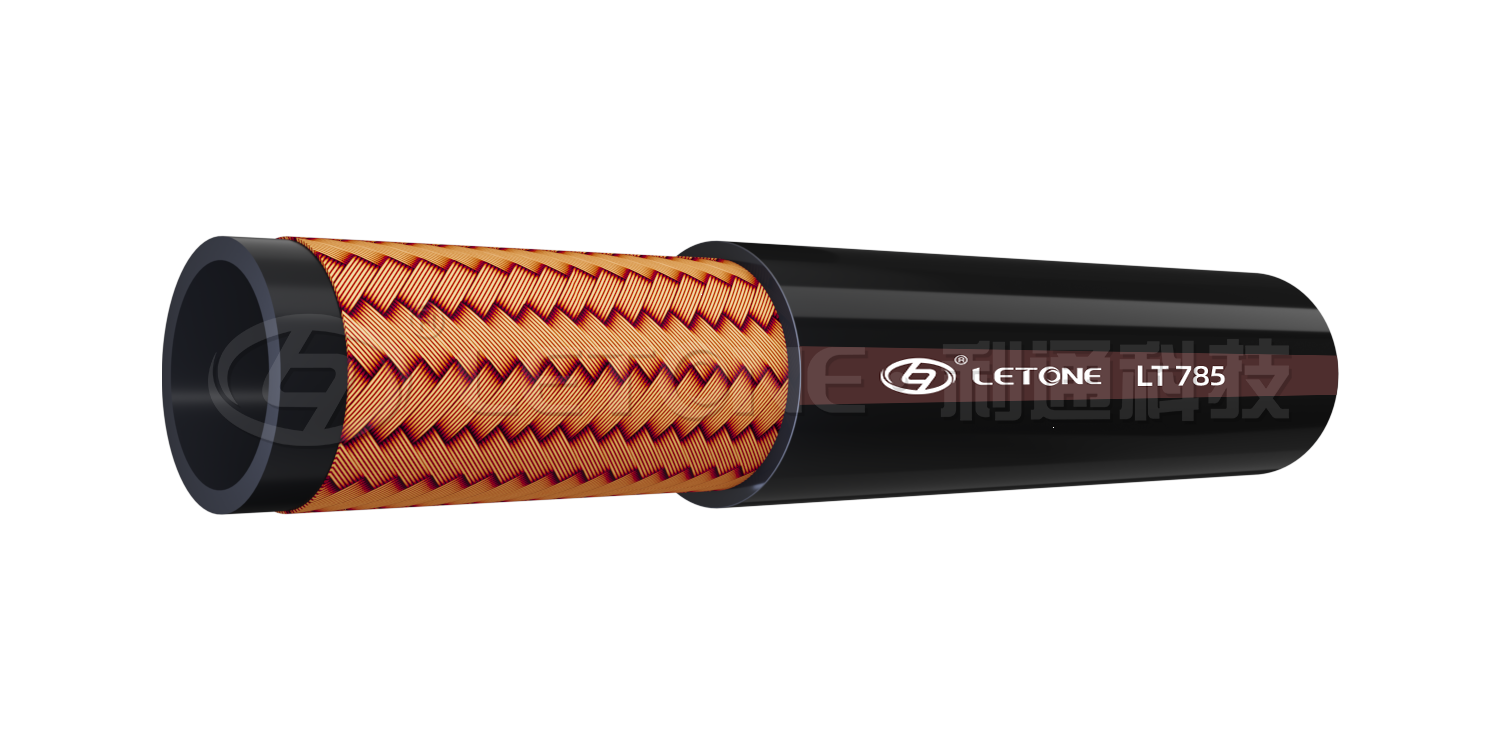

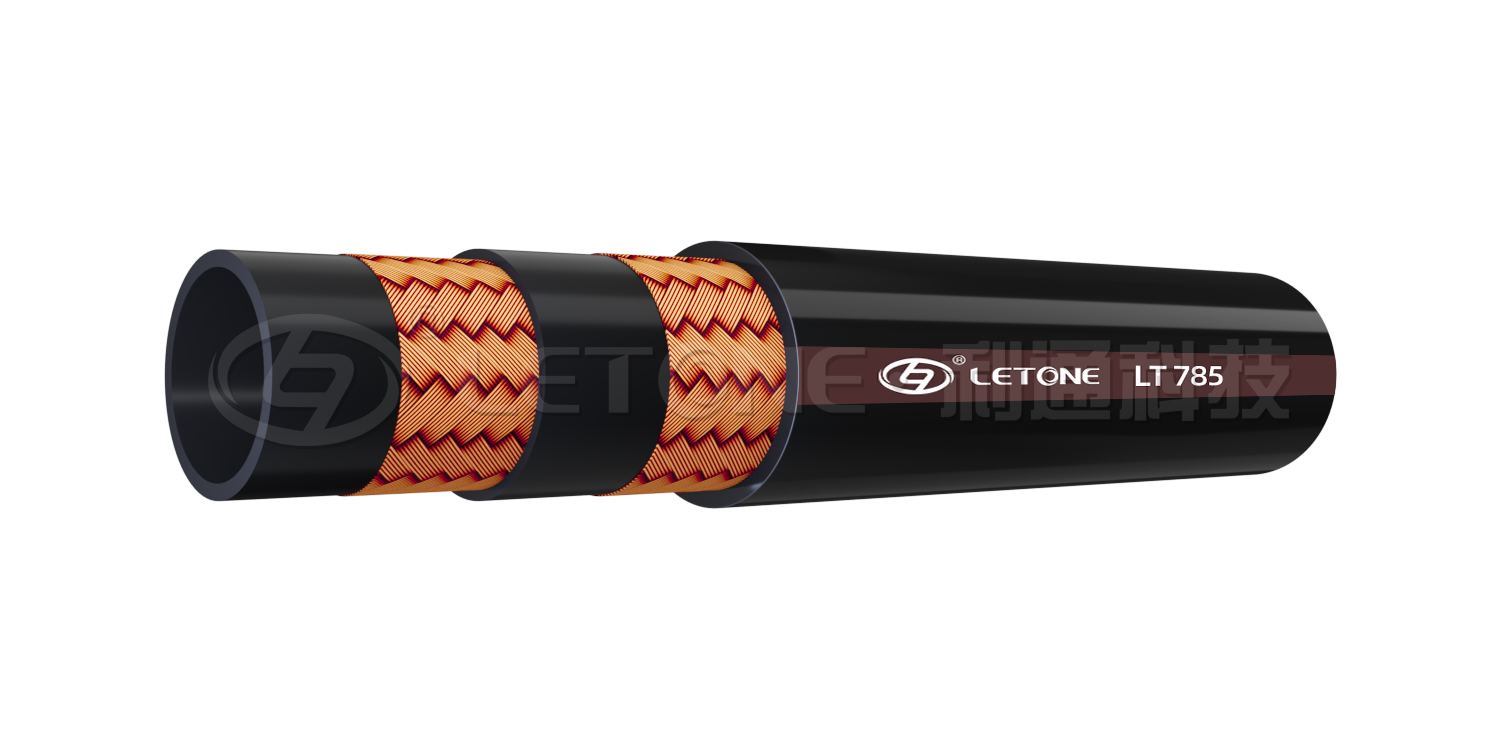

Weather-resistant compressed air hoses, wear-resistant synthetic rubber air hoses, fiber-braided reinforced air hoses, compressed air and inert gas delivery hoses

Parameter

SIZE		I.D mm		O.D mm	Max.W.P	Min.B.P	W.T
DASH	IN	Min	Max	Min	MPa	MPa	Kg/m
-8	1/2	12.5	14.0	23	1.0	4.0	0.34
-10	5/8	15.5	17.0	26	1.0	4.0	0.40
-12	3/4	18.5	20.0	29	1.0	4.0	0.45
-16	1	24.5	26.0	35	1.0	4.0	0.48
-20	11/4	31.5	33.0	45	1.0	4.0	0.95
-24	11/2	37.5	39.0	52	1.0	4.0	1.25
-32	2	50.0	52.5	66	1.0	4.0	1.60
-8	1/2	12.5	14.0	23	2.0	8.0	0.34
-10	5/8	15.5	17.0	26	2.0	8.0	0.41
-12	3/4	18.5	20.0	29	2.0	8.0	0.46
-16	1	24.5	26.0	35	2.0	8.0	0.50
-20	11/4	31.5	33.0	45	2.0	8.0	0.97
-24	11/2	37.5	39.0	52	2.0	8.0	1.27
-32	2	50.0	52.5	66	2.0	8.0	1.70

Note: The actual parameters are subject to the final atlas
