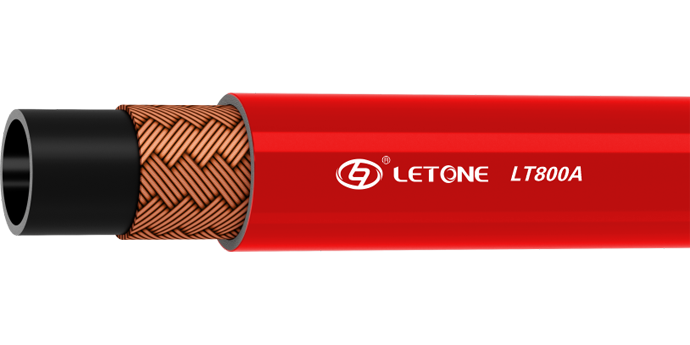

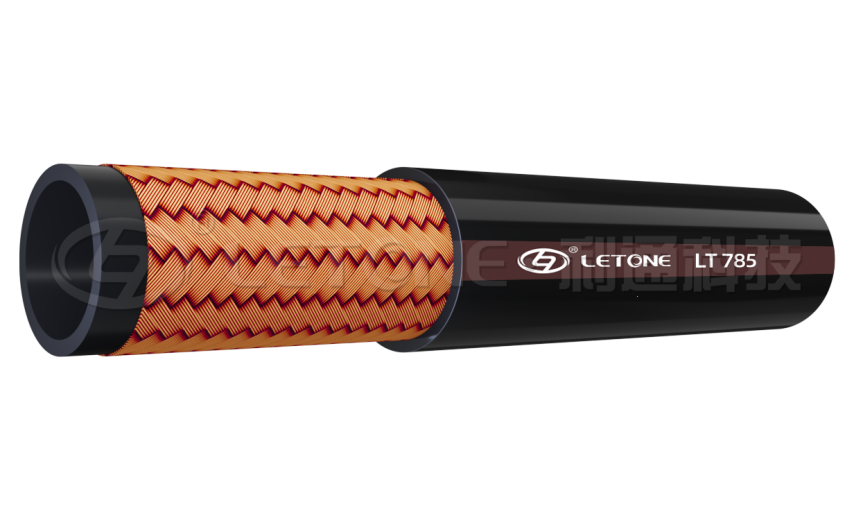

Liquid cooling hose, UL94V0 flame retardant coolant hose

Data Display

Specification	Specification	I.D		O.D		Max.W.P	Min.B.P	Min.B.R	W.T
SIZE	SIZE	Min	Max	Min	Max	Max.W.P	Min.B.P	Min.B.R	W.T
DASH	IN	Min	Max	Min	Max	MPa	MPa	mm	kg/m
-4	1/4"	6.1	7.2	11.6	12.6	1.5	6	24.5	0.13
-5	5/16"	7.7	8.3	14.5	15.5	1.5	6	31.5	0.18
-6	3/8"	9.5	10.3	15.4	16.4	1.5	6	37	0.19
-8	1/2"	12.5	13.3	19.7	20.7	1	4	69	0.25
-10	5/8"	15.8	16.6	23.5	23.7	1	4	88	0.30
-12	3/4"	18.8	19.6	26.4	27.6	1	4	113	0.35
-16	1"	25.2	26.2	34.4	33.6	1	4	143	0.52
-20	1-1/4"	31.8	32.8	43	44.6	1	4	195	0.70

The items marked with * are for reference only; the actual specifications are subject to the pipe body.

Universal Quick-Connect Connector

The quick-connect coupling series is an essential component of data center liquid cooling systems. Focusing on safe and easy connections, leak-proof design, high flow rate, and mechanical stress resistance, it is specifically designed to meet the stringent requirements of data center liquid cooling systems.

The universal quick-connect couplings are available in four sizes and two colors, are OCP compliant, and are guaranteed to pass 100% helium leak detection.

（UQD）

UQDB	Sealing material	Thread/ End Size	A		B		ΦC		ΦD		S1 Hexagonal
UQDB	EPDM	bsp	mm	in	mm	in	mm	in	mm	in	mm	in
UQD02	EPDM	1/4	46.2	1.82	19.0	0.75	15.5	0.61	23.0	0.91	14.0	0.55
UQD04	EPDM	3/8	49.5	1.95	23.7	0.93	9.00	0.36	24.6	0.97	18.0	0.71
UQD06	EPDM	1/2	61.1	2.41	25.8	1.02	24.0	0.94	31.7	1.25	22.0	0.87
UQD08	EPDM	5/8	68.4	2.69	39.0	1.54	30.0	1.18	35.0	1.38	27.0	1.06

UQDB	Thread/ End Size	Sealing material	ΦE		F		G		H		J		S2 Hexagonal
UQDB	BSP	EPDM	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in
UQD02	1/8	EPDM	6.65	0.26	17.32	0.68	8.70	0.34	8.00	0.31	30.40	1.20	15.00	0.59
UQD04	3/8	EPDM	11.07	0.44	25.40	1.00	9.80	0.39	11.20	0.44	37.90	1.49	22.00	0.87
UQD06	3/8	EPDM	14.30	0.56	25.40	1.00	10.0	0.39	11.20	0.44	41.60	1.64	22.00	0.87
UQD08	1/2	EPDM	17.48	0.69	34.64	1.36	12.0	0.47	14.50	0.57	47.60	1.87	30.0	1.18

UQDB	Sealing material	Thread/ End Size	ΦE		F		G		H		J		S2 Hexagonal
UQDB	EPDM	BSP	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in
UQD02	EPDM	7/16-20	6.65	0.26	16.17	0.64	8.70	0.34	9.10	0.36	29.8	1.15	14.00	0.55
UQD04	EPDM	9/16-18	11.07	0.44	19.63	0.77	9.80	0.39	9.90	0.39	37.9	1.49	17.00	0.67
UQD06	EPDM	2003/4/16	14.30	0.56	25.40	1.00	10.0	0.39	11.10	0.44	41.6	1.64	22.0	0.87
UQD08	EPDM	2007/8/14	17.48	0.69	31.18	1.23	12.0	0.47	12.70	0.50	41.6	1.87	27.0	1.06

（UQDB）

UQDB	Thread/End Size	Sealing material	A		B		ΦD		S Hexagonal
UQDB	ORB	EPDM	mm	in	mm	in	mm	in	mm	in
UQD02	9/16-18	EPDM	33.6	1.32	23.5	0.93	21.0	0.83	16.0	0.63
UQD04	2003/4/16	EPDM	33.9	1.56	28.5	1.12	24.0	0.94	22.0	0.87
UQD06	2007/8/14	EPDM	44.6	1.76	32.0	1.26	29.0	1.14	27.0	1.06
UQD08	11/16-12	EPDM	54.6	2.15	39.5	1.56	37.0	1.46	32.0	1.26

UQDB	Thread/End Size	Sealing material	A		B		ΦD		S Hexagonal
UQDB	ORB	EPDM	mm	in	mm	in	mm	in	mm	in
UQD02	7/16-20	7/EPDM	33.1	1.42	27.0	1.06	21.0	0.83	19.0	0.75
UQD04	9/16-18	EPDM	45.3	1.78	35.3	1.39	24,0	0.94	22.0	0.87
UQD06	2003/4/16	EPDM	50.0	1.97	38.9	1.53	29.0	1.14	27.0	1.06
UQD08	2007/8/14	EPDM	62.7	2.47	50.0	1.97	39.0	1.54	36.0	1.42
