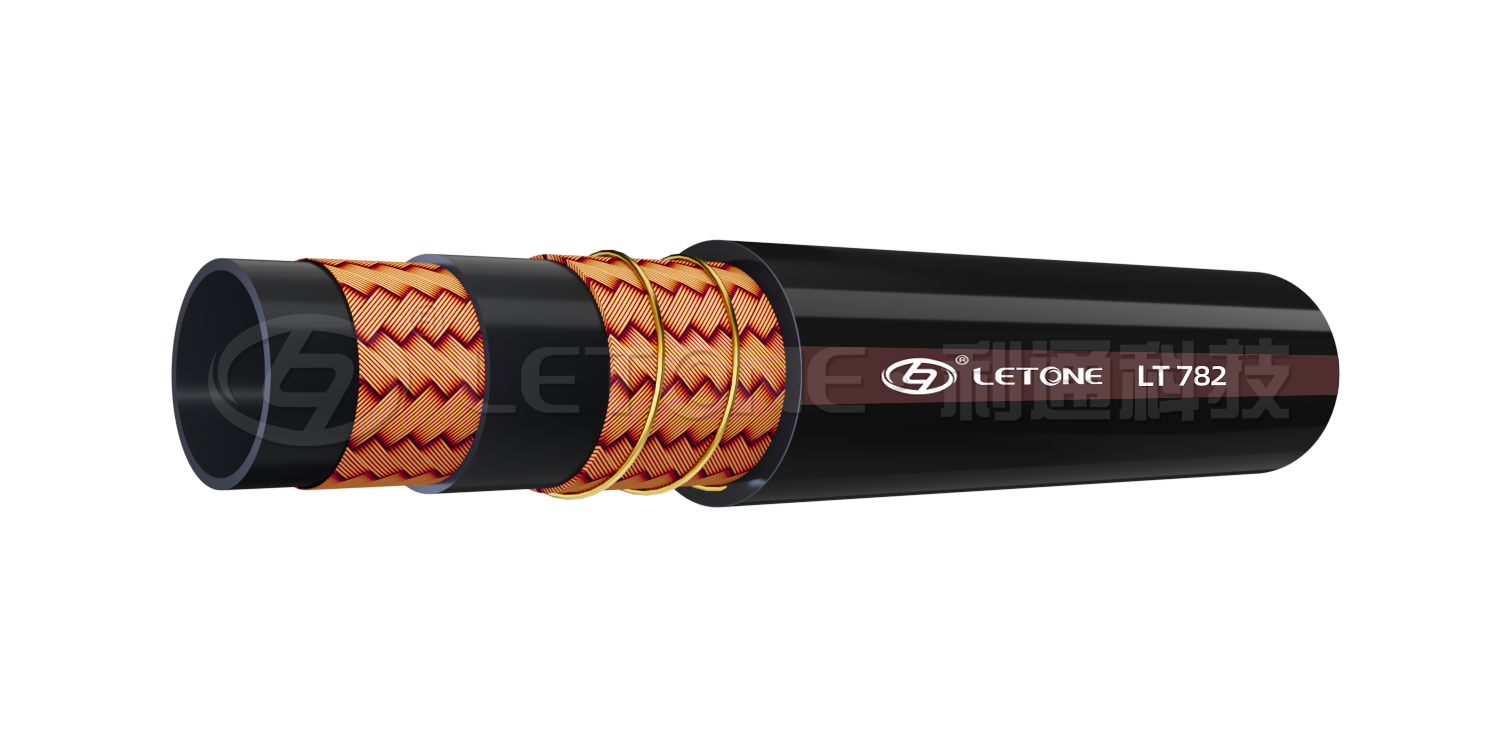

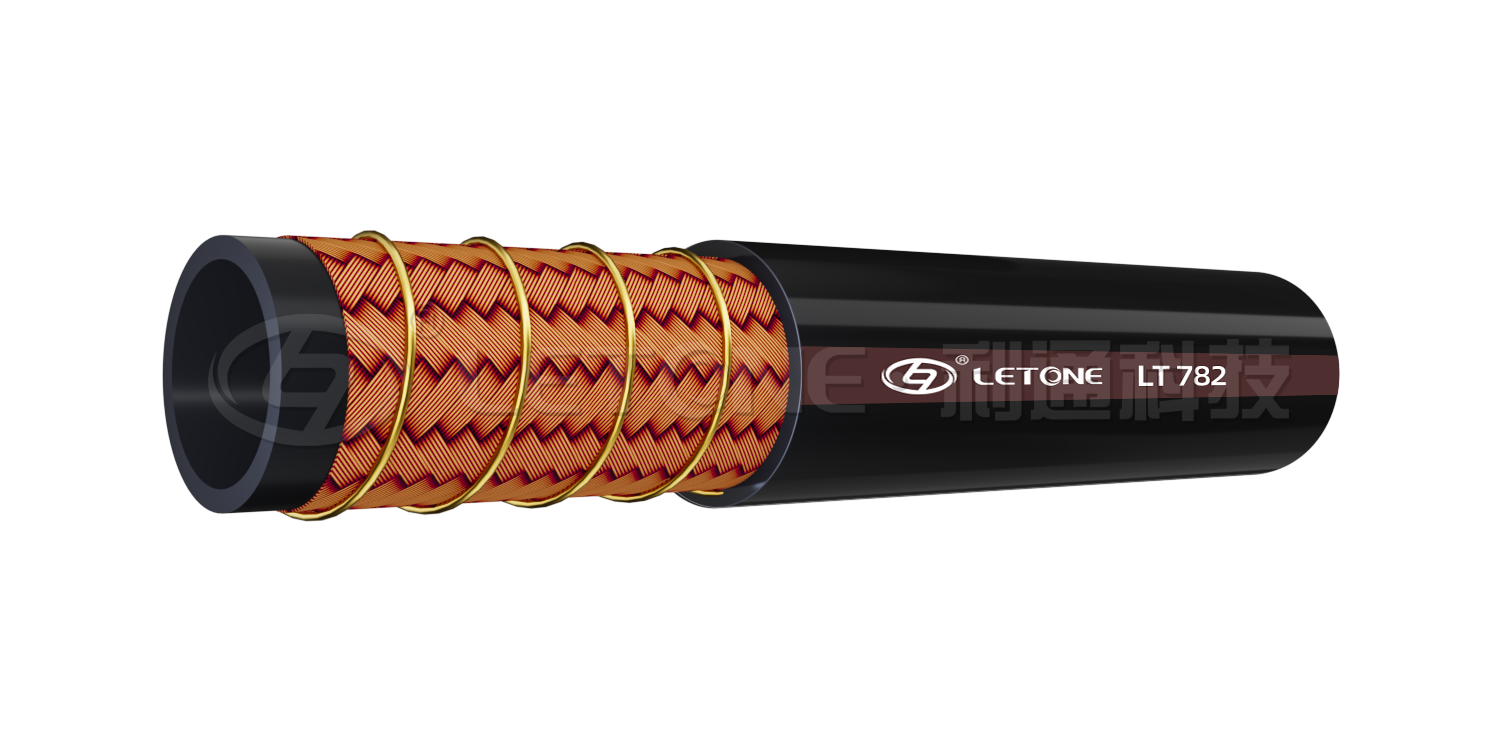

SAE 100R4 Hydraulic Suction And Return Line
24 Hours Service Hotline
+86-0371-55157686
| SIZE | I.D mm | O.D mm | Max.W.P | P.P | Min.B.P | W.T | |||||
| DASH | IN | Min | Max | Max | MPa | psi | MPa | psi | MPa | psi | kg/m |
| -12 | 3/4 | 18.2 | 19.8 | 34.0 | 2.1 | 305 | 4.2 | 610 | 8.4 | 1210 | 0.68 |
| -16 | 1 | 24.6 | 26.2 | 40.0 | 1.7 | 250 | 3.5 | 510 | 7 | 1015 | 0.84 |
| -20 | 11/4 | 30.6 | 33.0 | 48.0 | 1.4 | 200 | 2.8 | 410 | 5.6 | 810 | 1.13 |
| -24 | 11/2 | 36.9 | 39.3 | 54.0 | 1.05 | 150 | 2.1 | 305 | 4.2 | 610 | 1.41 |
| -32 | 2 | 49.2 | 52.4 | 68.0 | 0.7 | 100 | 1.4 | 200 | 2.8 | 410 | 1.85 |
| -40 | 21/2 | 61.9 | 65.1 | 81.0 | 0.4 | 60 | 0.85 | 120 | 1.7 | 250 | 2.28 |
| -48 | 3 | 74.6 | 77.8 | 93.0 | 0.4 | 60 | 0.8 | 120 | 1.6 | 230 | 2.64 |
| -56 | 31/2 | 87.3 | 90.5 | 106.0 | 0.3 | 40 | 0.6 | 90 | 1.25 | 180 | 3.02 |
| -64 | 4 | 100.0 | 103.2 | 120.0 | 0.25 | 40 | 0.6 | 70 | 1 | 145 | 3.21 |
The items marked with * are for reference only; the actual specifications are subject to the hose body.
