LT SA6992

EXCEEDS ISO18752-AC/BC/CC Super Artery Low Bend Series

Hose Construction
Inner Tube: NBR or CR synthetic rubber, suitable for biodegradable hydraulic fluids.

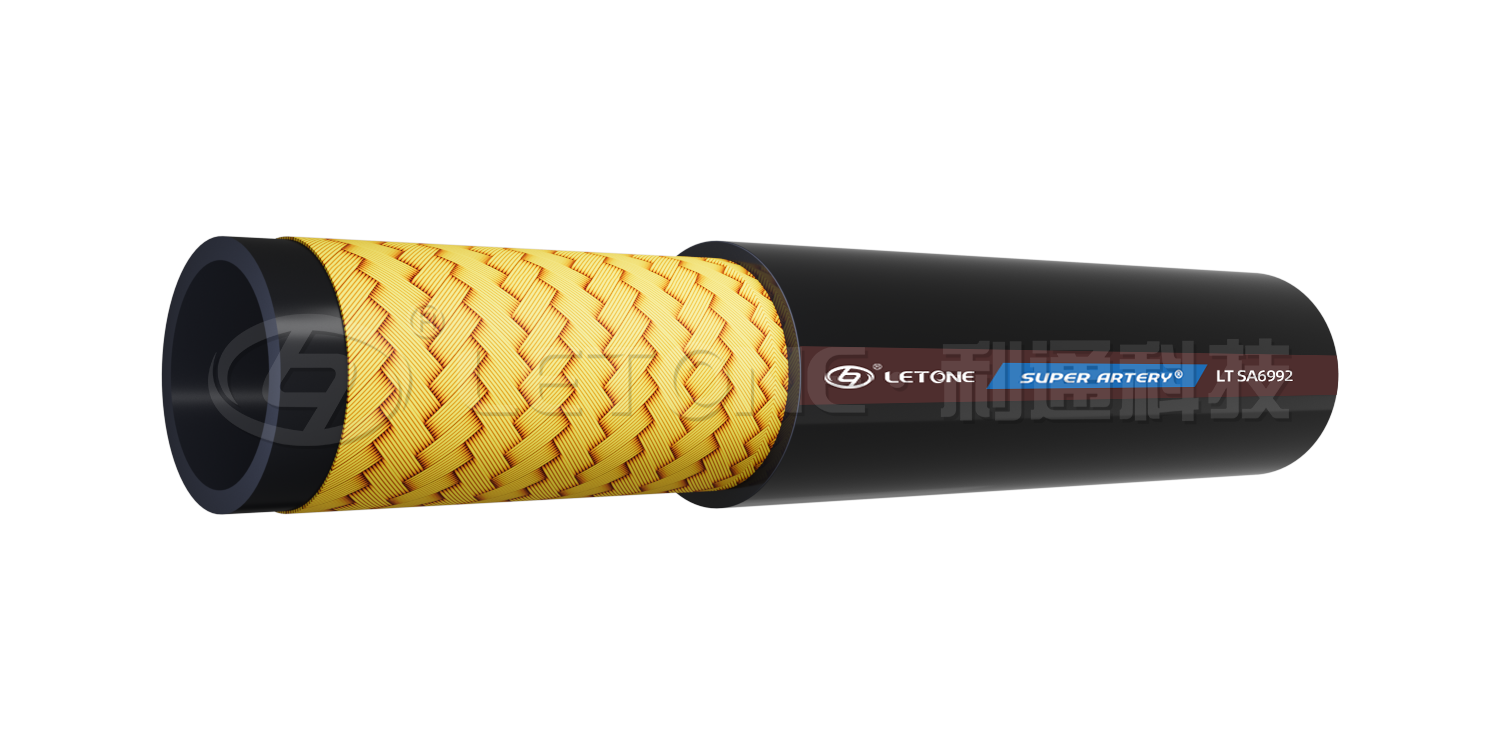

Reinforcement: One braid of high tensile steel wire (1/4″-3/8″), impulse≥300,000 cycles.

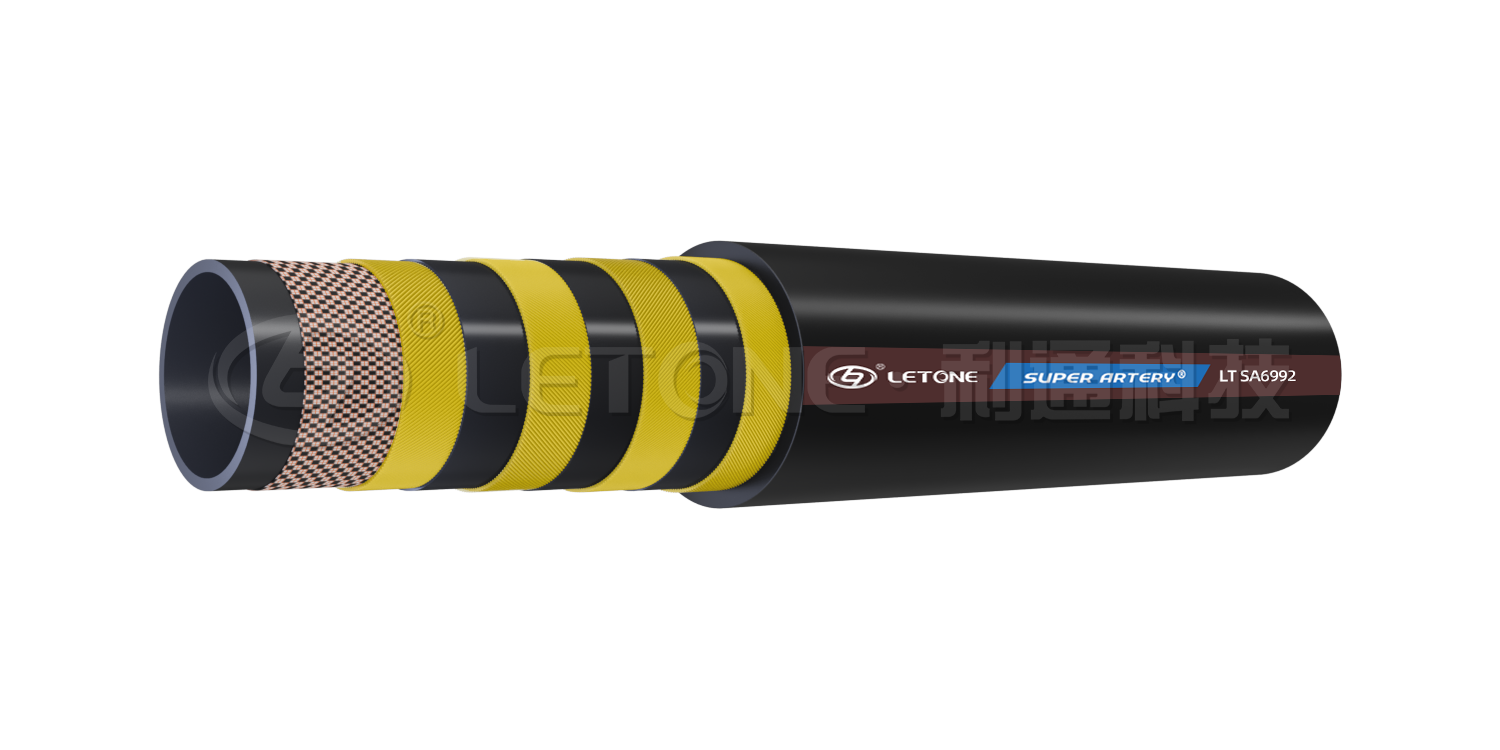

Four layers of spiraled high tensile steel wire(1/2″-2″), impulse21,000,000 cycles.
Outer Cover: Standard: no-skive abrasion, weather resistant synthetic rubber.
AR cover: no-skive, highly abrasion, weather resistant synthetic rubber.
SAR cover: super abrasion, weather resistant UHMWPE.
Temperature Range: -40°C to +121°C (-40°F to +250°F)
-55°C to +100°C (-67°F to +212°F)
Hose Features:
Low Bend Radius: The average bend radius is 36% less than the ISO 18752 AC/BC/CC standard, 38% less than the SAE standard.
High Pressure: The average pressure is 36% higher than the SAE standard.
Long service Life: Guarantee for two years by using with Letone one-piece or swaged fittings and HNBR seals.
Application: Suitable for heavy duty construction machineries such as excavators or harsh environment use.

Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Data Display

Size	ISO18752			I.D （mm)	O.D （mm)	W.P （MPa)	MIN.B.P （MPa)	MIN.B.R（mm)	Weight （kg/m)	Connector series
Size	6992 Standard	6992 AR	6992 SAR	I.D （mm)	O.D （mm)	W.P （MPa)	MIN.B.P （MPa)	MIN.B.R（mm)	Weight （kg/m)	Connector series
SA6992-1/4"-1	AC	AC	AC	6.3	13.4	25	100	40	0.219	31series
SA6992-5/16"-1	AC	AC	AC	8.0	15.2	25	100	55	0.277	31series
SA6992-3/8"-1	AC	AC	AC	10.0	17.4	21	84	65	0.33	31series
SA6992-1/2"-4	AC	AC	AC	13.0	22.2	25	100	110	0.658	31series
SA6992-5/8"-4	AC	AC	AC	16.0	25.4	25	100	130	0.771	31series
SA6992-3/4"-4	BC	CC	CC	19.0	28.4	25	100	160	0.939	31series
SA6992-1"-4	BC	CC	CC	25.0	35.3	21	84	210	1.247	31series
SA6992-1 1/4"-4	CC	CC	CC	32.0	43.5	21	84	250	1.874	31series
SA6992-1 1/2"-4	CC	CC	CC	38.0	49.50	17.5	70	300	2.127	31series
SA6992-2"-4	CC	CC	CC	51.0	62.5	17.5	70	610	2.848	31series

The items marked with * are for reference only; the actual specifications are subject to the hose body.
