LT589

SAE R15 Wire Spiral Hydraulic Hose

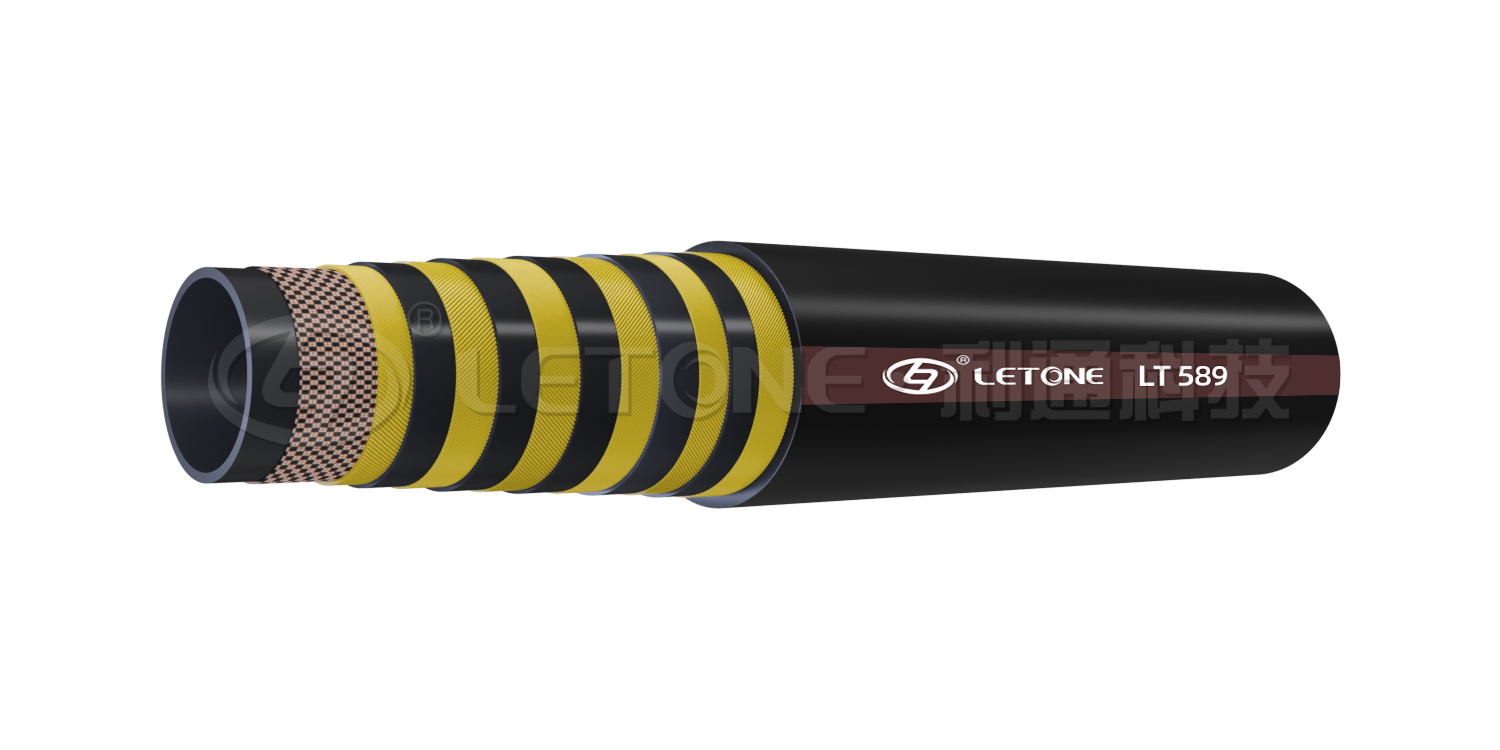

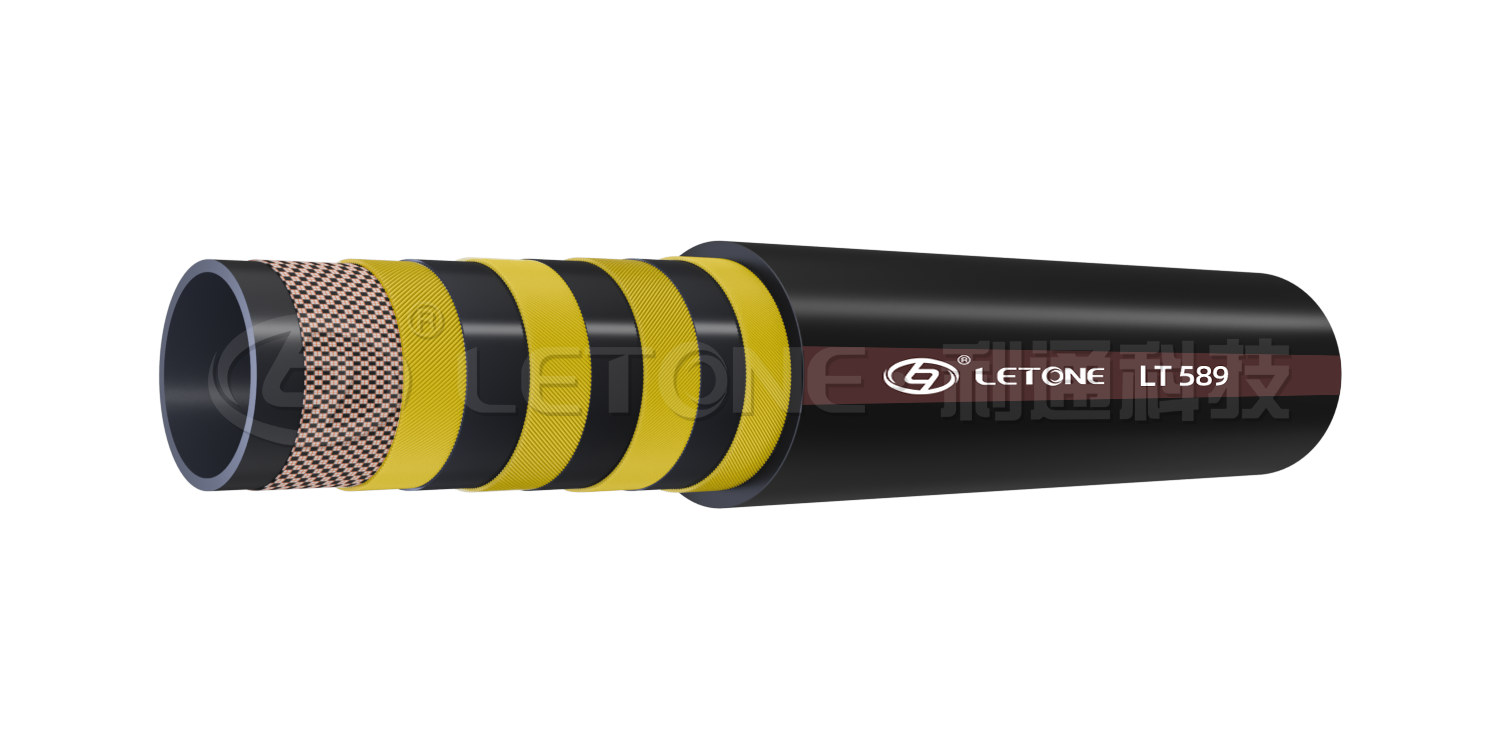

Hose Construction
Inner Tube: black hot oil resistant synthetic rubber
Reinforcement:four or six plies of spiraled high tensile steel wire
Outer layer:black oil, weather, and abrasion resistant synthetic rubber
Temperature Range: -40°C ~ +121°C (-40°F ~ +250°F)
Application: Suitable to convey water-based, petroleum-based,and biodegradable hydraulic oil. Remarkable performance on high pressure, high impulse, and low bend applications.

Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Data Display

SIZE		I.D		W.D		O.D		Max.W.P	P.P	Min.B.P	Min.B.R	W.T
SIZE		Min	Max	Min	Max	Min	Max	Max.W.P	P.P	Min.B.P	Min.B.R	W.T
DASH	IN	mm	mm	mm	mm	mm	mm	MPa	MPa	MPa	mm	kg/m
-6	3/8	9.5	10.5	18.6	19.8	21.0	23.0	42	84	168	150	0.93
-8	1/2	12.5	13.5	21.6	22.8	24.2	26.2	42	84	168	200	1.10
-12	3/4	18.6	19.8	27.8	29.0	30.0	32.0	42	84	168	265	1.54
-16	1	25.0	26.4	34.6	36.6	37.2	39.6	42	84	168	330	2.17
-20	11/4	31.4	33.0	46.4	48.4	48.7	51.7	42	84	168	445	4.08
-24	11/2	37.7	39.3	52.0	54.0	54.5	57.5	42	84	168	530	4.67
-32	2	50.4	52.0	66.0	68.0	68.5	71.5	42	84	168	680	6.71

The items marked with * are for reference only; the actual specifications are subject to the hose body.
