LT SA5992

EXCEEDS ISO18752-BC/CC/DC Super Artery Low Bend Series

Hose Construction
Inner Tube: NBR or CR synthetic rubber, suitable forbiodegradable hydraulic fluids.
Outer Cover: Standard:abrasion, weather resistant synthetic rubber.
AR cover: highly abrasion, weather resistant synthetic rubber.
SAR cover: super abrasion, weather resistant UHMWPE.
Temperature Range: -40°C to +121°C (-40°F to +250°F) -55°C to +100°C (-67°F to +212°F)
Hose Features:
Low Bend Radius: The average bend radius is 48% less than the ISO 18752 BC/CC/DC standard, 50% less than the SAE standard.
High Pressure: Comply with ISO 18752 BC/CC/DC standard.

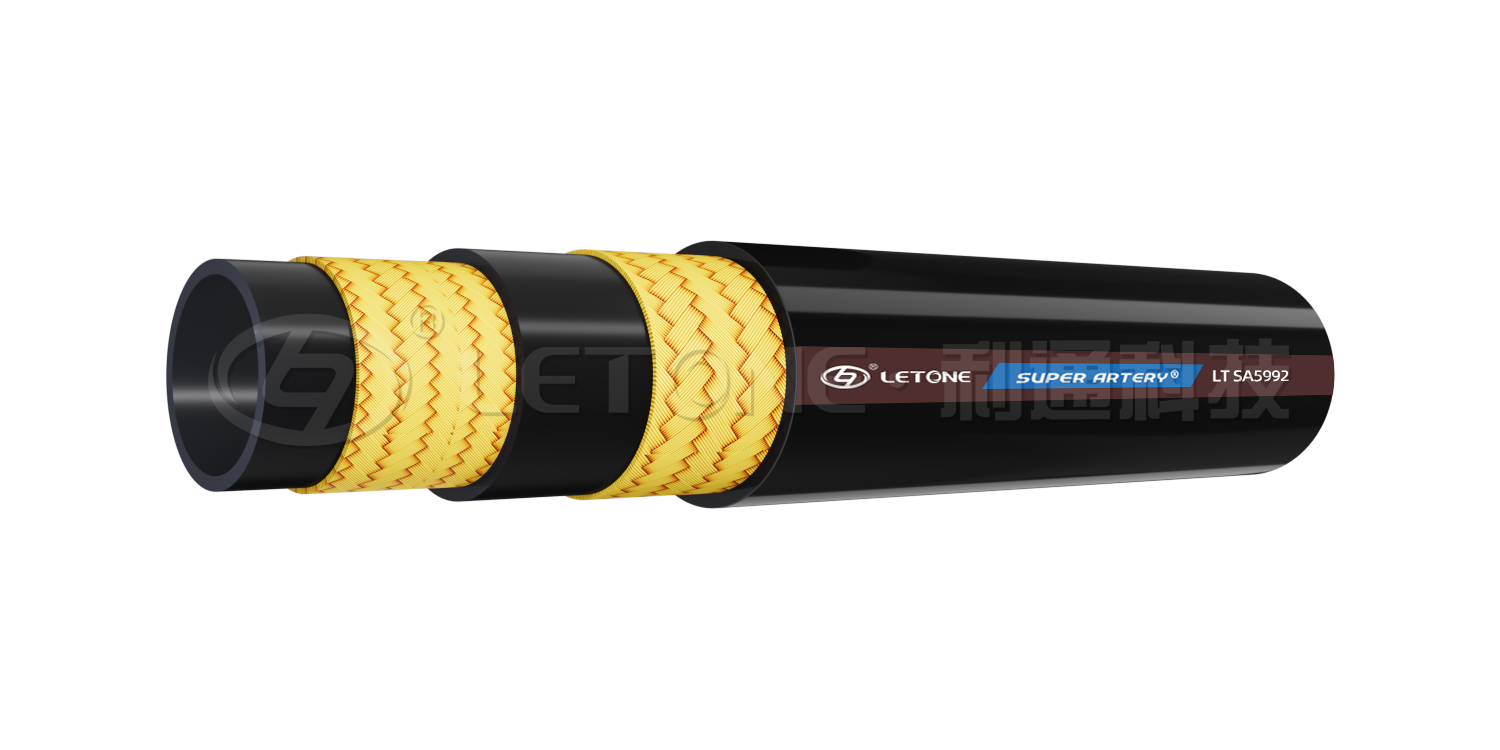

Reinforcement: Two braids of high tensile steel wire (1/4″-5/16″), impulse≥500,000 cycles.

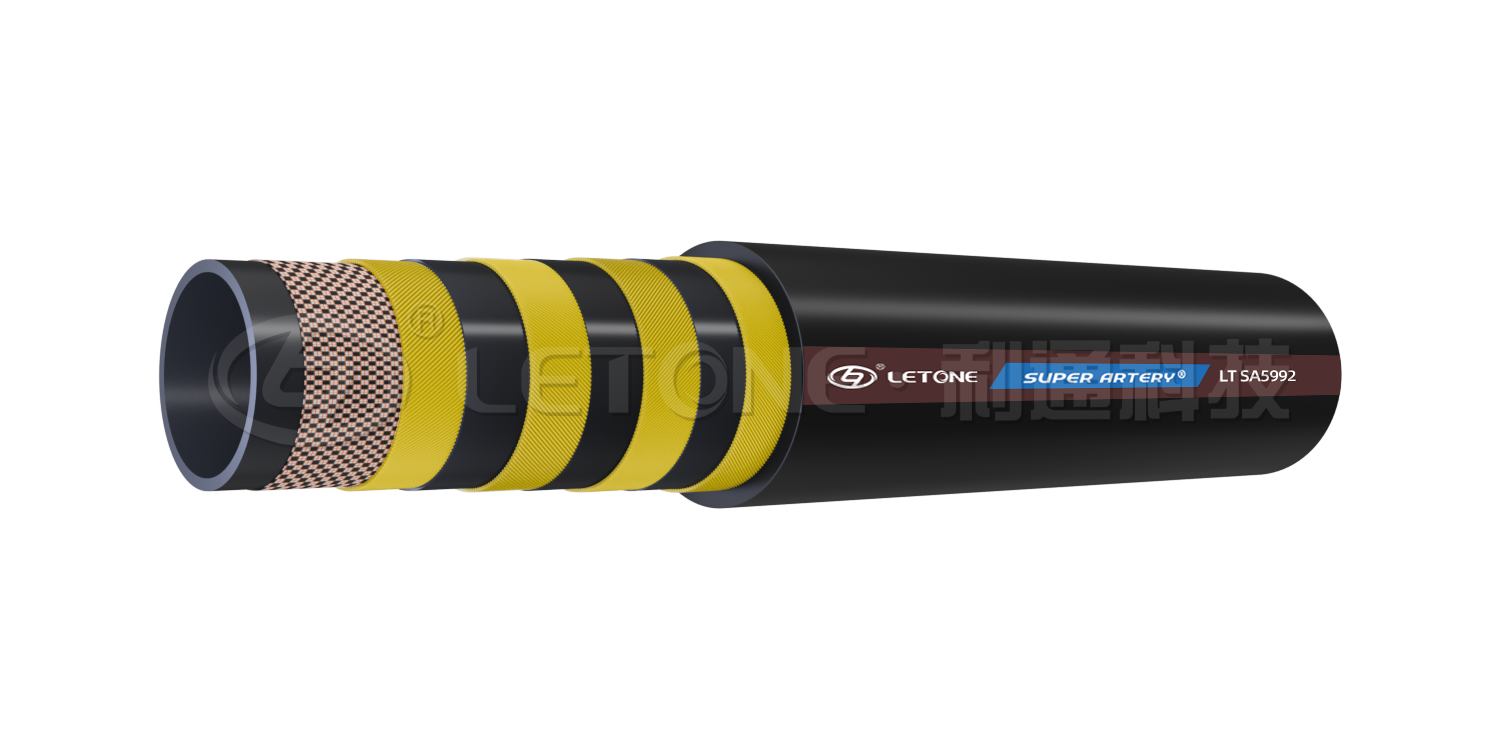

Four plies of spiraled high tensile steel wire (3/8″-1 1/4″),impulse≥1,000,000 cycles.

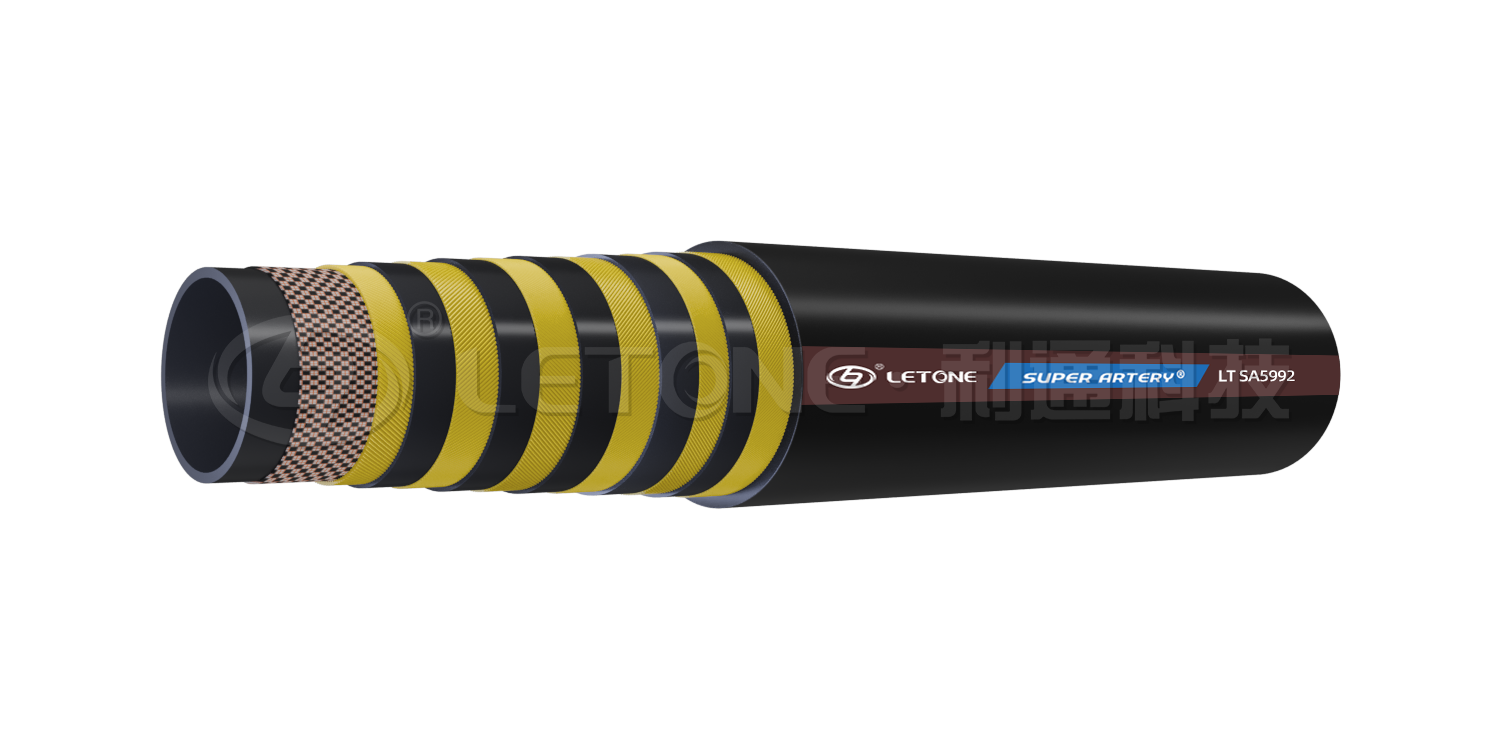

Six plies of spiraled high tensile steel wire (1 1/2″-2″), impulse21,000,000 cycles.
Long service Life: Guarantee for two years by using with Letone one-piece or swaged fittings and HNBR seals
Application: Suitable for heavy duty construction machineries such as excavators or harsh environment use.

Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Data Display

Size	ISO18752			I.D （mm)	O.D （mm)	MAX.W.P （MPa)	MIN.B.P （MPa)	MIN.B.R（mm)	Weight （kg/m)	Connector series
Size	5992 Standard	5992 AR	5992 SAR	I.D （mm)	O.D （mm)	MAX.W.P （MPa)	MIN.B.P （MPa)	MIN.B.R（mm)	Weight （kg/m)	Connector series
SA5992-1/4"-2	BC	CC	CC	6.3	13.6	40	160	50	0.283	31series
SA5992-5/16"-2	BC	CC	CC	8.0	15.2	35	140	60	0.326	31series
SA5992-3/8"-4	BC	CC	CC	10.0	18.7	35	140	63	0.524	31series
SA5992-1/2"-4	CC	CC	DC	13.0	22.2	35	140	90	0.701	31series
SA5992-5/8"-4	CC	CC	DC	16.0	25.0	35	140	100	0.817	41series
SA5992-3/4"-4	CC	CC	DC	19.0	29.0	35	140	120	1.143	41series
SA5992-1"-4	CC	CC	DC	25.4	36.5	35	140	150	1.649	41series
SA5992-1 1/4"-4	CC	CC	DC	32.0	44.5	35	140	210	2.255	41series
SA5992-1 1/2"-4	CC	CC	DC	38.0	52.5	32	140	215	3.208	41series
SA5992-1 1/2"-6	CC	CC	DC	38.0	55.5	35	140	225	4.348	61series
SA5992-2"-6	CC	CC	DC	51.0	70.0	35	140	318	6.121	61series

The items marked with * are for reference only; the actual specifications are subject to the hose body.

Size	I.D		W.D		O.D		MAX.W.P (MPa)	P.P (MPa)	MIN.B.P (MPa)	MIN.B.R (mm)	Weight (kg/m)
Size	MIN (mm)	MAX (mm)	MIN (mm)	MAX (mm)	MIN (mm)	MAX (mm)	MAX.W.P (MPa)	P.P (MPa)	MIN.B.P (MPa)	MIN.B.R (mm)	Weight (kg/m)
SA5992T-5/8"-4	15.5	16.7	23.9	25.1	26.0	28.0	45	90	180	250	1.15
SA5992T-3/4"-4	18.6	19.8	27.6	29.2	30.0	32.0	42	84	168	280	1.54
SA5992T-1"-4	25.0	26.4	34.4	36.0	37.0	39.0	38	76	152	340	2.02
SA5992T-11/4"-4	31.4	33.0	40.9	42.9	43.8	46.2	32.5	65	130	460	2.48
SA5992T-11/2"-4	37.7	39.3	48.1	50.1	51.3	53.7	29	58	116	560	3.18
SA5992T-2"-4	50.4	52.0	62.2	64.2	65.3	67.7	25	50	100	700	4.46
