LT582

SAE 100R13|MSHA Wire Spiral Hydraulic Hose

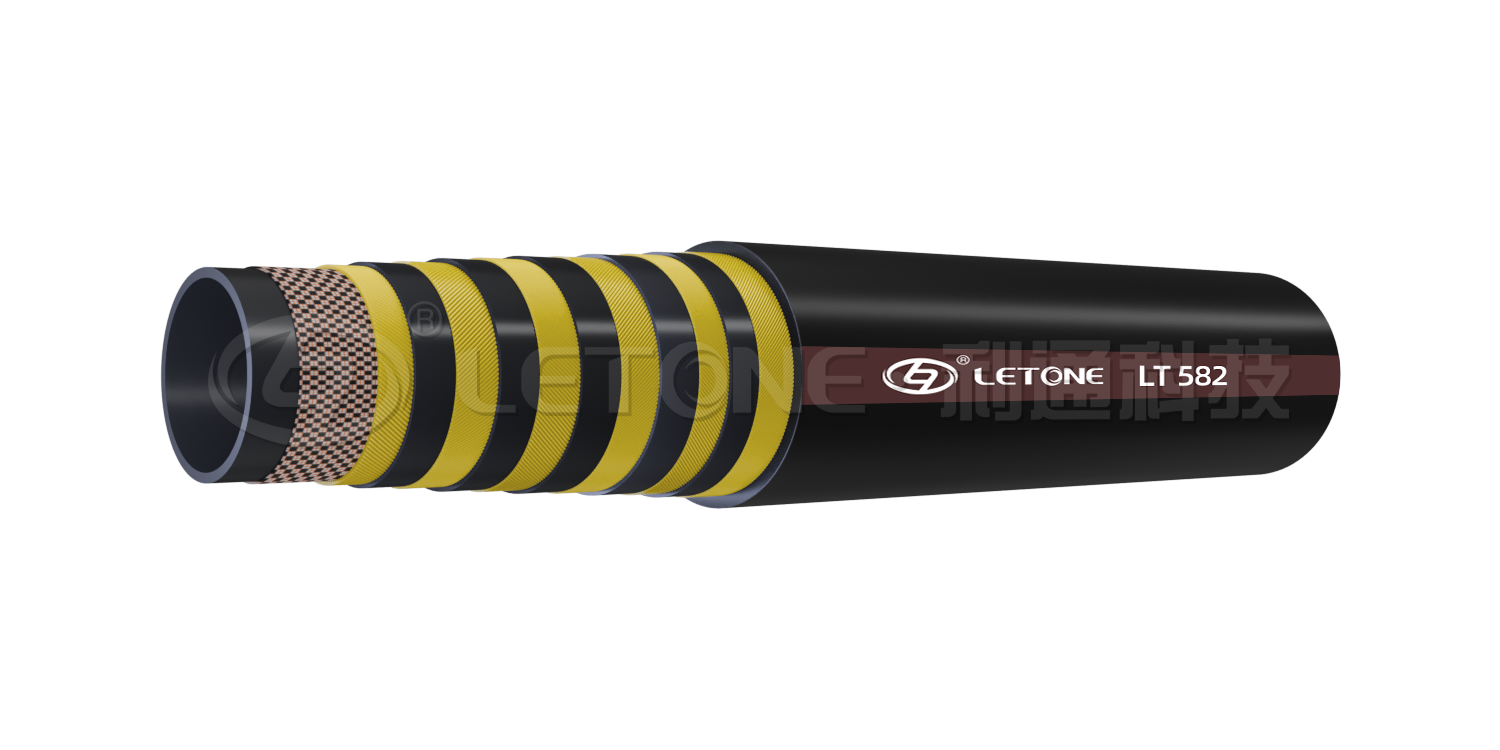

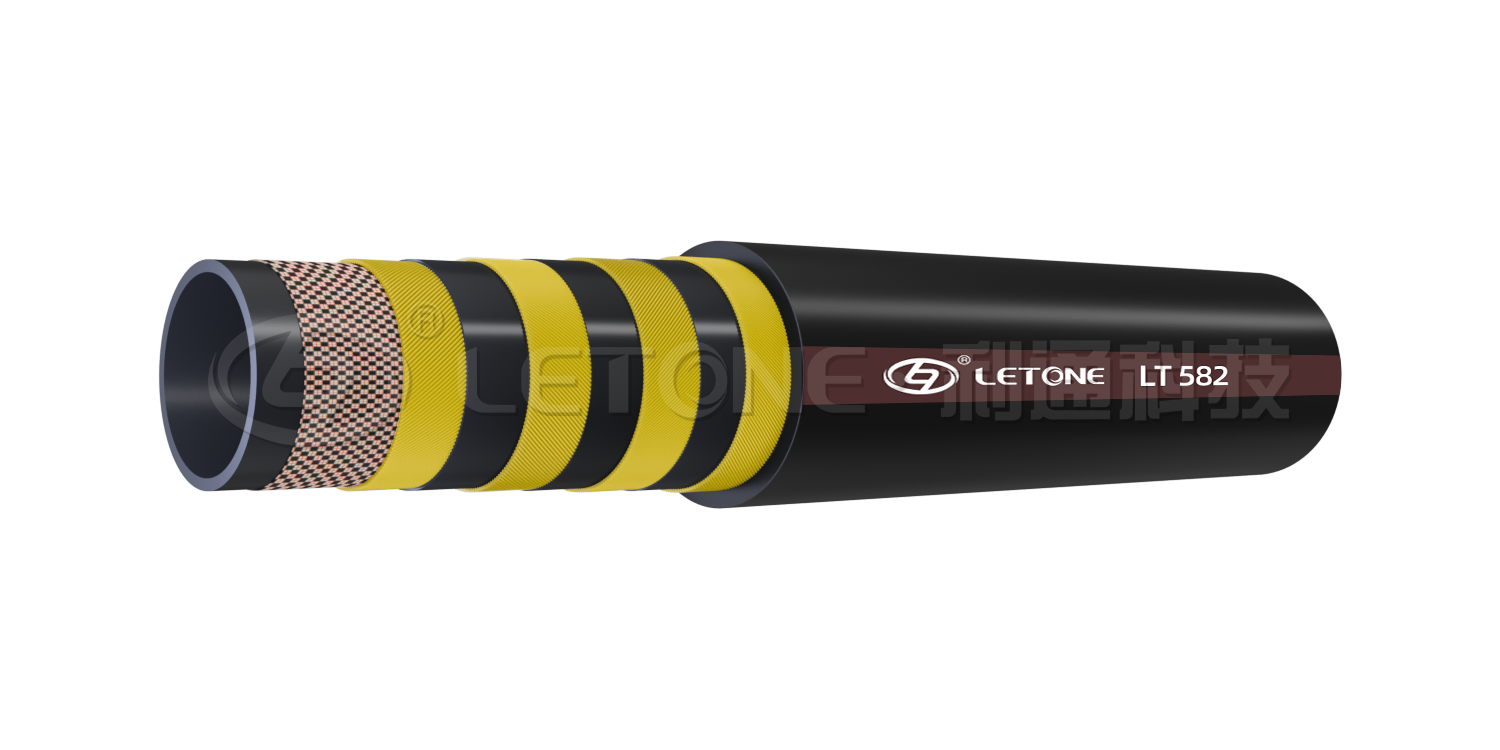

Hose Construction
Inner Tube: black hot oil resistant synthetic rubber
Reinforcement:four or six plies of spiraled high tensile steel wire
Outer Layer: black oil and weather resistant synthetic rubber
Temperature Range: -40°C ~ +121°C (-40°F ~ +250°F)
Application: Suitable to convey water-based, petroleum-based, and biodegradable hydraulic oil under harsh working conditions.

Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Data Display

SIZE		I.D		W.D		O.D		Max.W.P	P.P	Min.B.P	Min.B.R	W.T
SIZE		Min	Max	Min	Max	Min	Max	Max.W.P	P.P	Min.B.P	Min.B.R	W.T
DASH	IN	mm	mm	mm	mm	mm	mm	MPa	MPa	MPa	mm	kg/m
-12	3/4	18.6	19.8	28.2	29.4	31.2	33.2	35	70	140	240	1.61
-16	1	25.0	26.4	34.8	36.4	37.3	39.7	35	70	140	300	2.06
-20	11/4	31.4	31.4	46.0	48.0	48.8	51.2	35	70	140	420	3.84
-24	11/2	37.7	37.7	53.0	55.0	55.8	58.2	35	70	140	500	4.60
-32	2	50.4	50.4	67.1	69.1	69.5	72.5	35	70	140	640	6.61

The items marked with * are for reference only; the actual specifications are subject to the hose body.
