LT799B 6S

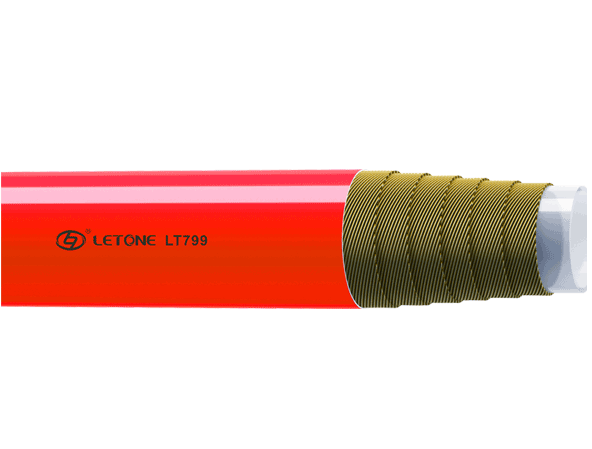

Ultra high pressure resin hose
Scope of application :ultra-high pressure water jet applications, especially for jet nozzles

Pressure range:1200 ~ 2800 bar (17400 ~ 40600 psi)
Feature:Continuous long pipe without broken ends is used to replace steel pipe
Features:water jet cutting
Features:good hydraulic demolition flexibility
Features:remove dirt deposited on the surface
Ultra high pressure resin hose
Parameter
Part number Hose size ID OD WP
dash inch DN mm inch mm inch bar psi
B6S-4-2800 - 5/32 4 4.0 0.157 11.8 0.465 2800 40600
B6S-5-2500 -3 3/16 5 5.0 0.197 14.4 0.567 2500 36200
B6S-8-2100 -5 5/16 8 7.9 0.311 18.0 0.709 2100 30400
B6S-10-2070 -6 3/8 10 9.9 0.390 20.8 0.819 2070 30000
B6S-12-1800 -8 1/2 12 12.8 0.504 25.4 1.000 1800 26100
B6S-20-1400 -12 3/4 20 18.8 0.740 33.7 1.327 1400 20300
B6S-25-1200 -16 1 25 24.8 0.976 41.0 1.614 1200 17400

Note: The actual parameters are subject to the final atlas
