EN12115 PTFE high-pressure multi-functional hose, 4-layer steel wire reinforced, corrosion-resistant, food-grade, large diameter, custom-made.

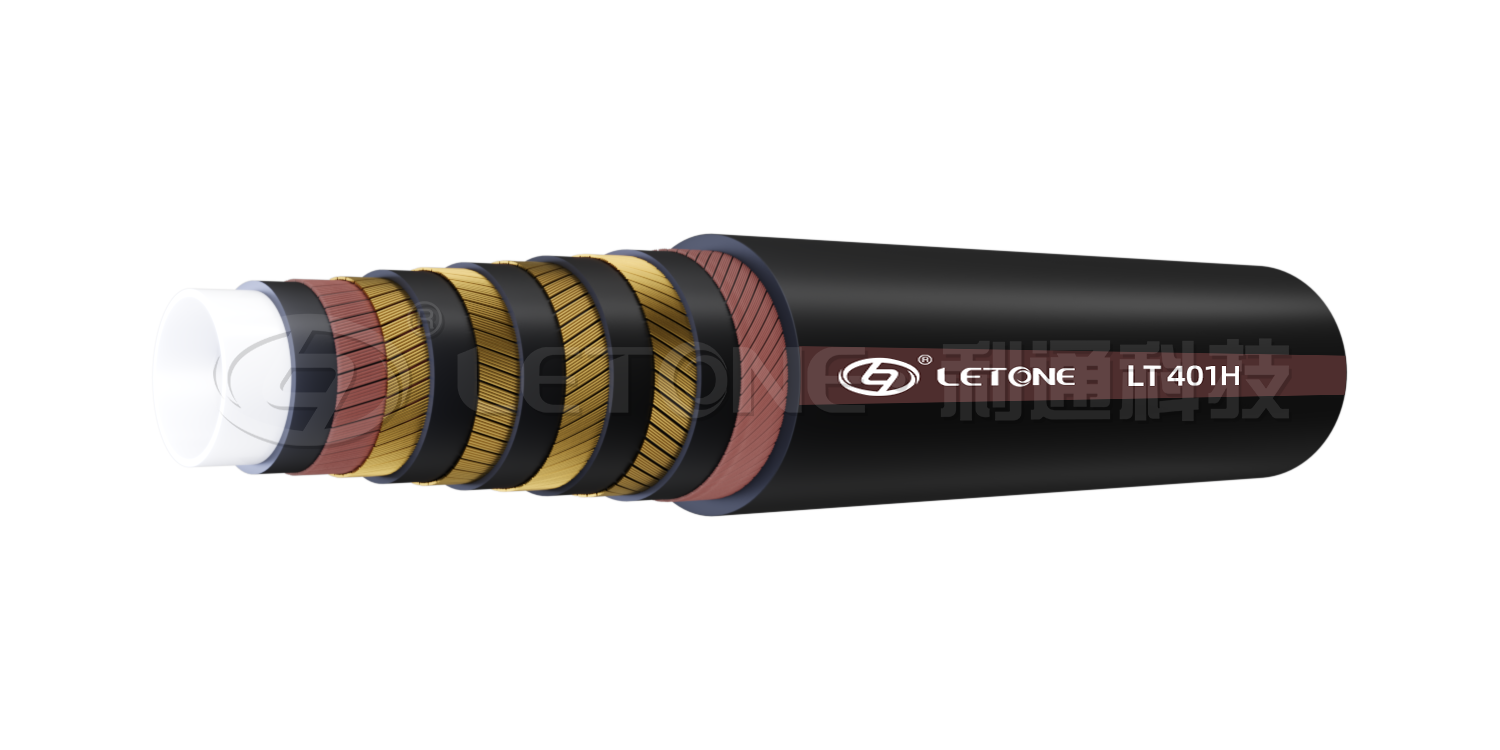

LT401H

EN12115 PTFE High Pressure Multipurpose Hose

Application: Widely apply to various industries like chemical, petroleum, iron and steel smelting, F&B and medication etc.The productis suitable to workunder high temperature environment. Dependingon its feature of super corrosion-resistant,even strong corrosion chemicals like sulfuric acid, hydrochloric acid and sulfur reactant could not react with it. It is alsoone of the best choices for food and medicalindustries.
Hose Construction
Inner Tube: PTFE and EPDM synthetic rubber
Reinforcement:Two steel wire braids or four-ply of spiral steel wire
Outer Layer: Black /red/yellow/blue oxygen, UV, and abrasion resistant NV or EPDM synthetic rubber (UPE layer is available)
Temperature Range: -55°C to 220°C (-67°F to 428°F)
*The hose dimension, pressure and color can be customized based on the requirements.
