LT803

GB/T 1186 Fiber Spiral Compressed Air Hose

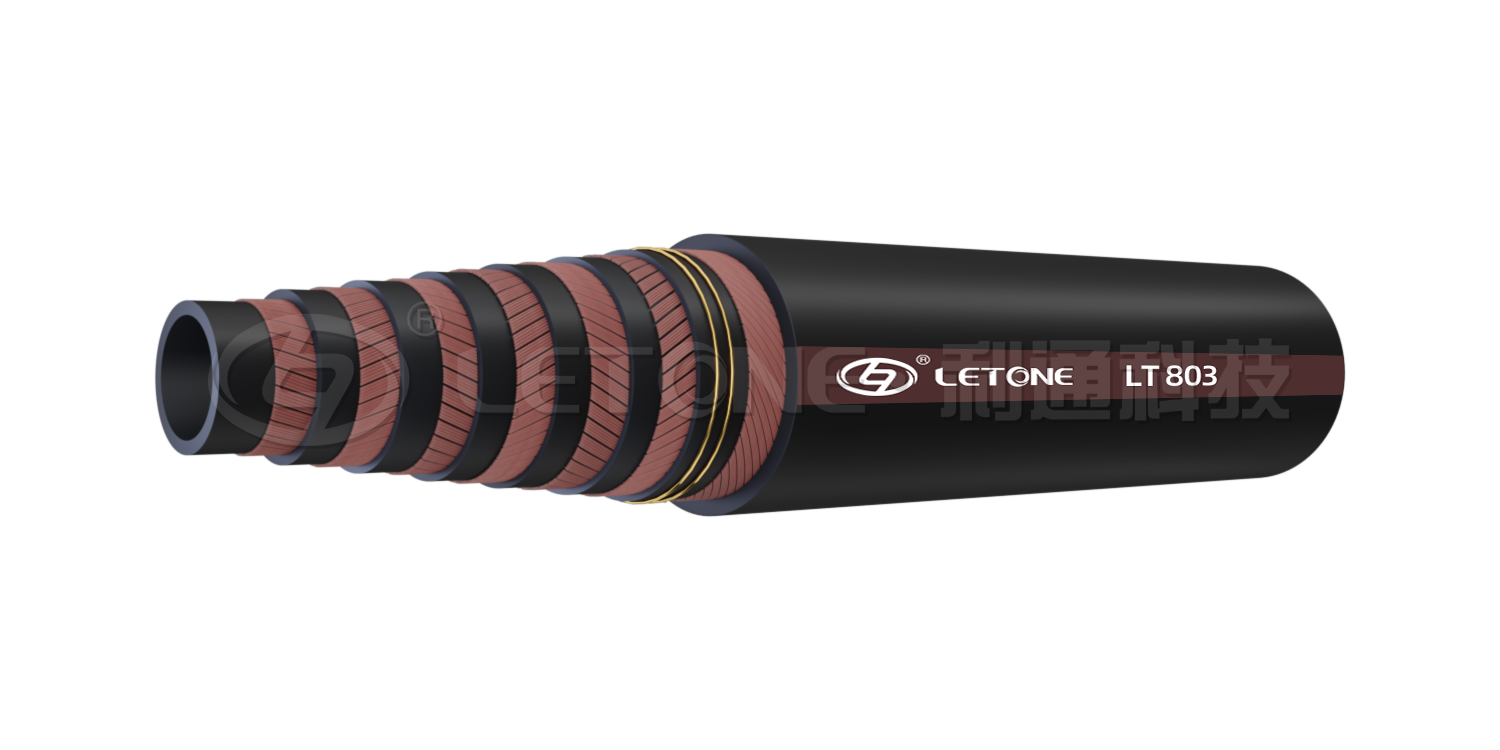

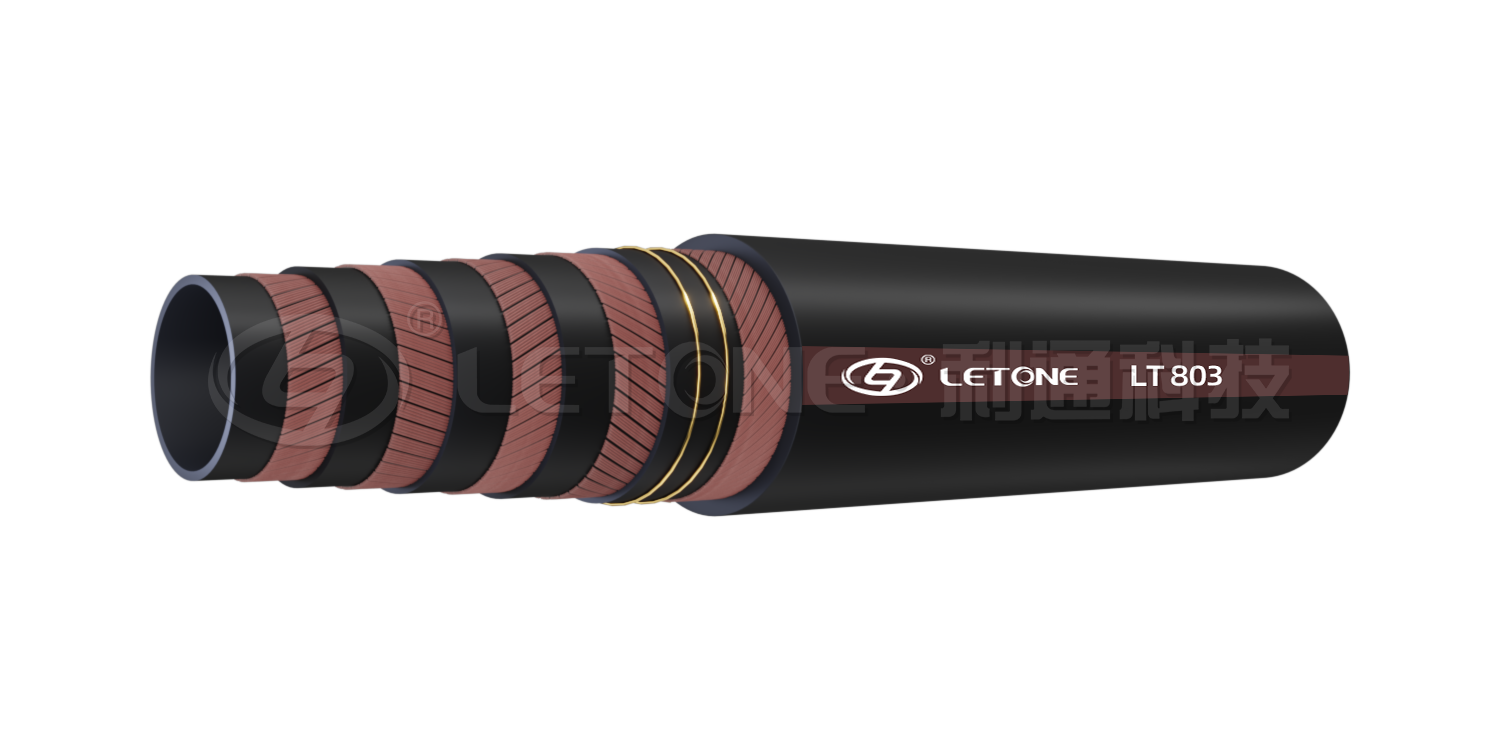

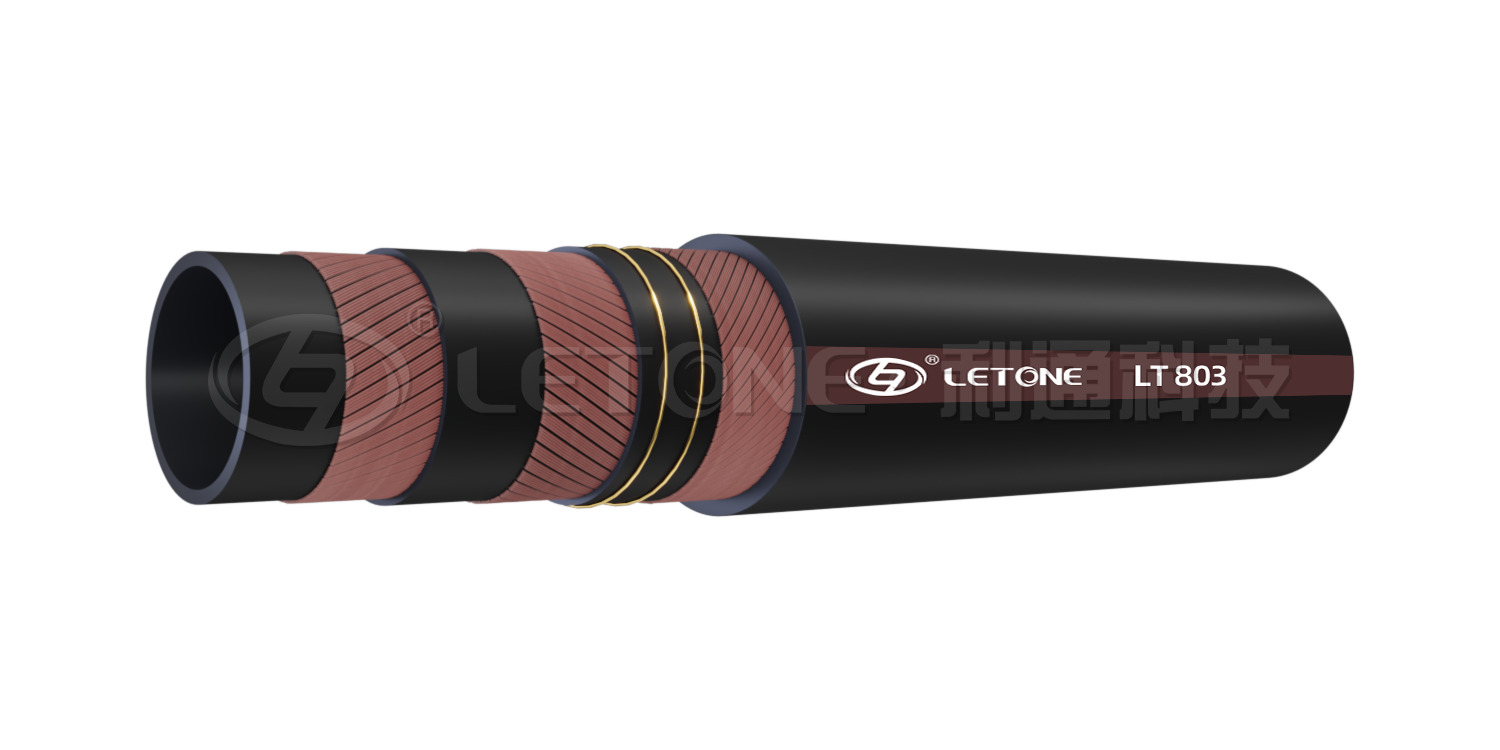

Hose Construction
Inner Tube: Black NR&SBR synthetic rubber
Reinforcement: Multi-spiral high tensile synthetic fibers and helix spiral-wire
Outer Layer: Black NR&SBR or CR synthetic rubber
Temperature Range: -30℃~82℃(-22°F~180°F)
*The hose dimension,pressure and color can be customized based on the requirements.
Application:Designed for compressed air transfer in construction and mining industries,suitable for extremely environment because of its abrasion resistant characteristic

Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Parameter

I.D		O.D		W.P	Min.B.P	Min.B.R	W.T
in	mm	in	mm	psi	psi	mm	kg/m
2	51	2.52	64	150	375	400	1.55
2.5	64	3.03	77	150	375	500	2.25
3	76	3.58	91	150	375	570	2.60
4	102	4.80	122	150	375	750	4.5
2	51	2.64	67	230	575	400	1.65
2.5	64	3.15	80	230	575	500	2.35
3	76	3.70	94	230	575	570	2.70
4	102	4.92	125	230	575	750	4.60
2	51	2.75	70	360	900	400	1.75
2.5	64	3.26	83	360	900	500	2.45
3	76	3.82	97	360	900	570	2.80
4	102	5.03	128	360	900	750	4.70
