LT901

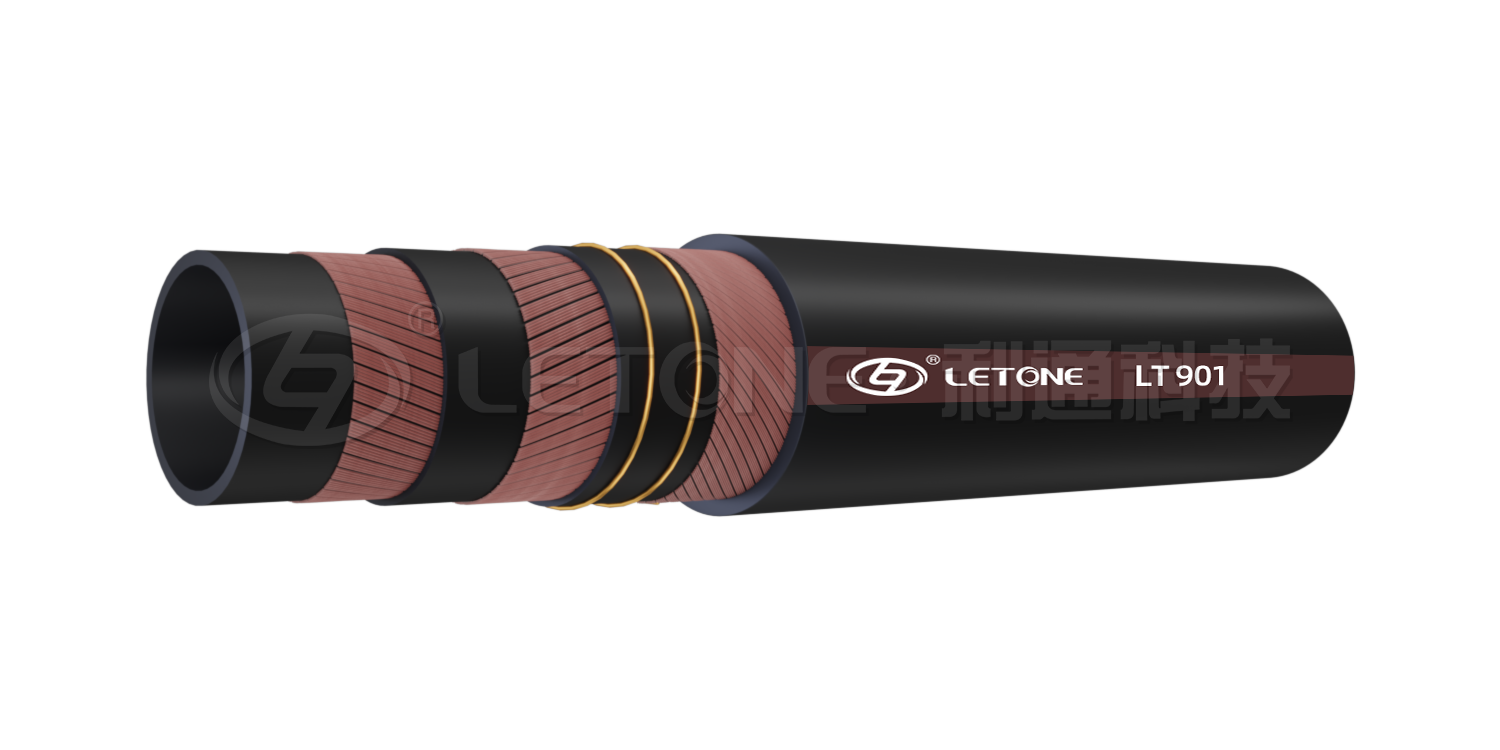

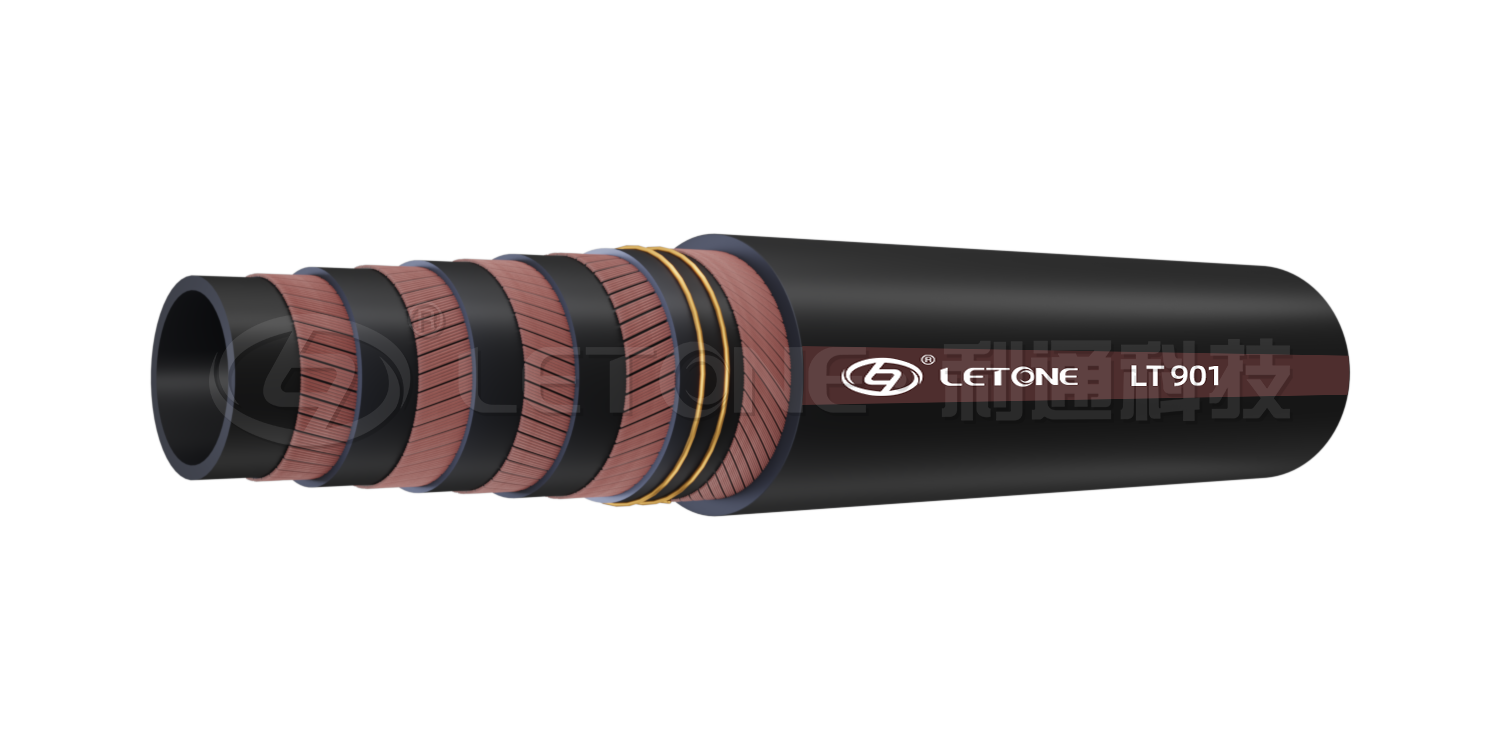

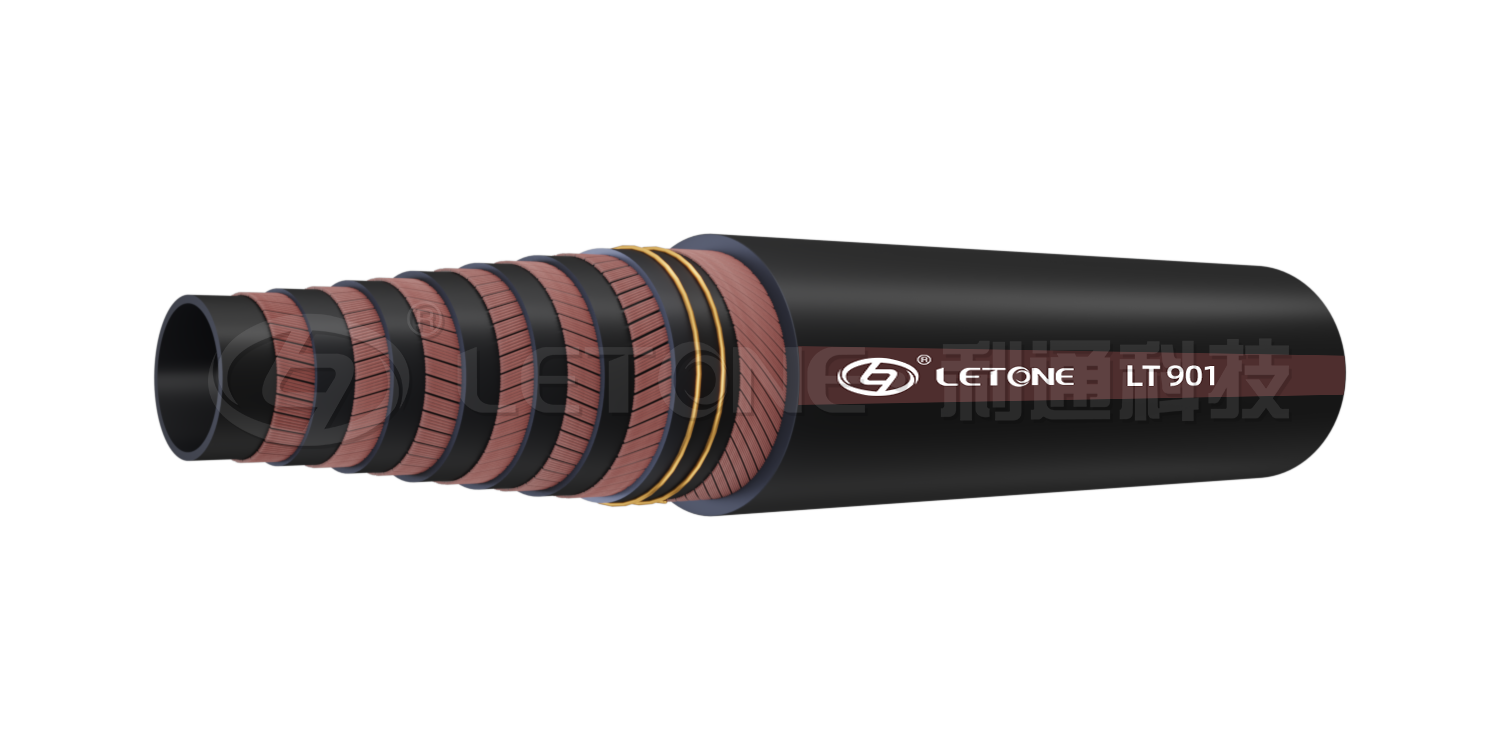

HG/T 3035 General Purpose Water Suction&Discharge Rubber Hose

Hose Construction
Inner Tube: Black EPDM or NR&SBR synthetic rubber(UPE layer is available)
Reinforcement: Multi-spiral high tensile synthetic fibers and helix spiral-wire
Outer Layer: Black EPDM or NR&SBR synthetic rubber
Temperature Range: -30°℃~100℃(-22°F~212°F)
*The hose dimension,pressure and color can be customized based on the requirements.
Application:Designed for the general use of construction,agriculture,and other industrial applications

Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Parameter

I.D.		O.D.		Max.W.P.	Min.B.P	Min.B.R.	W.T
in	mm	in	mm	psi	psi	mm	kg/m
2	51	2.64	67	150	375	350	1.65
2.5	64	3.15	80	150	375	450	2.35
3	76	3.66	93	150	375	520	2.70
4	102	4.80	122	150	375	700	4.60
5	127	5.87	149	150	375	950	6.45
6	152	6.81	173	150	375	1160	7.00
8	203	9.17	233	150	375	1400	15.00
10	254	11.30	287	150	375	1700	20.00
2	51	2.76	70	300	750	370	2.05
2.5	64	3.27	83	300	750	470	2.75
3	76	3.78	96	300	750	540	3.10
4	102	4.92	125	300	750	720	5.00
5	127	6.10	155	300	750	970	7.25
6	152	7.05	179	300	750	1180	7.90
8	203	9.41	239	300	750	1450	15.90
10	254	11.54	293	300	750	1750	20.90
