Hydraulic hoses exceeding SAE standards by 60%, low-bend hoses specifically designed for excavators.

LT SA6991

EXCEEDS ISO18752-BC/CC Super Artery Low Bend Series

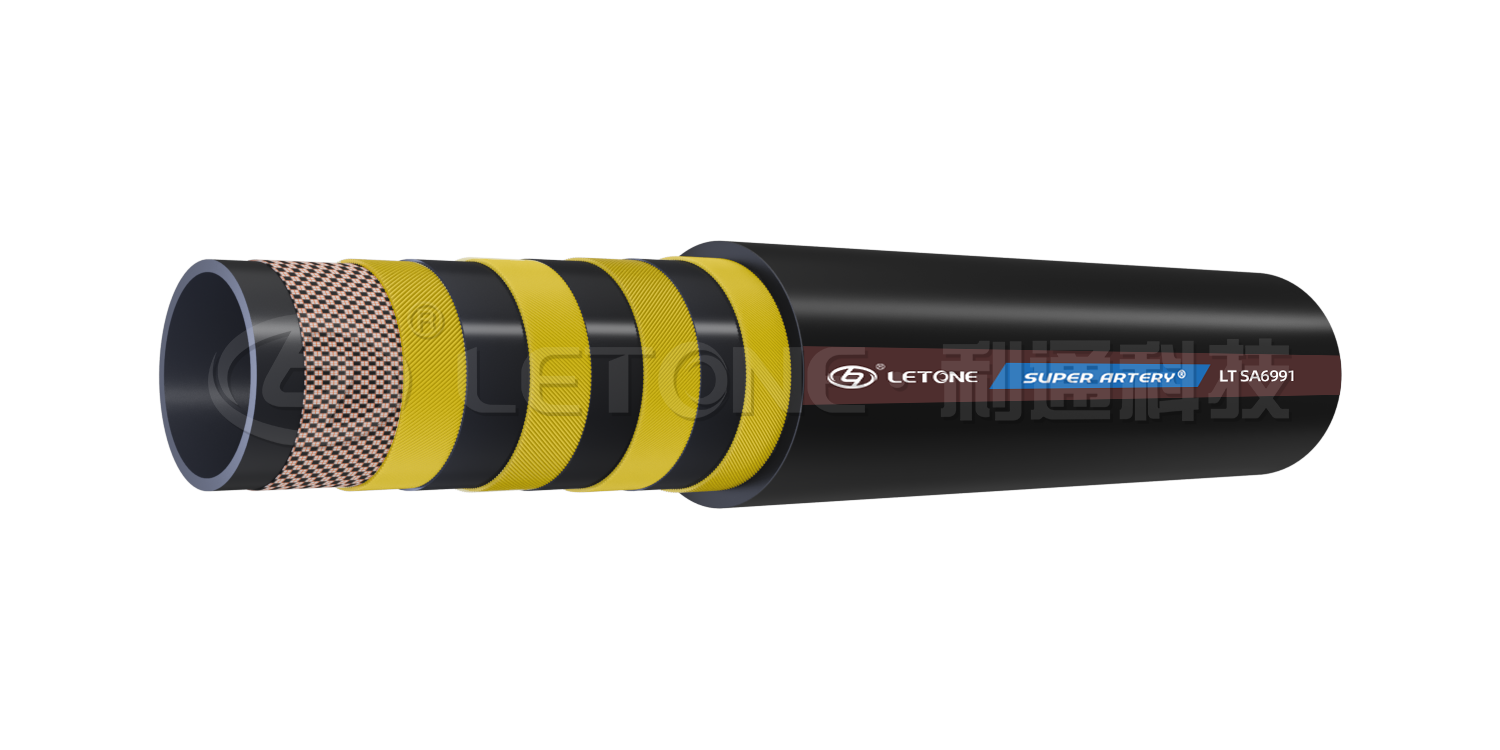

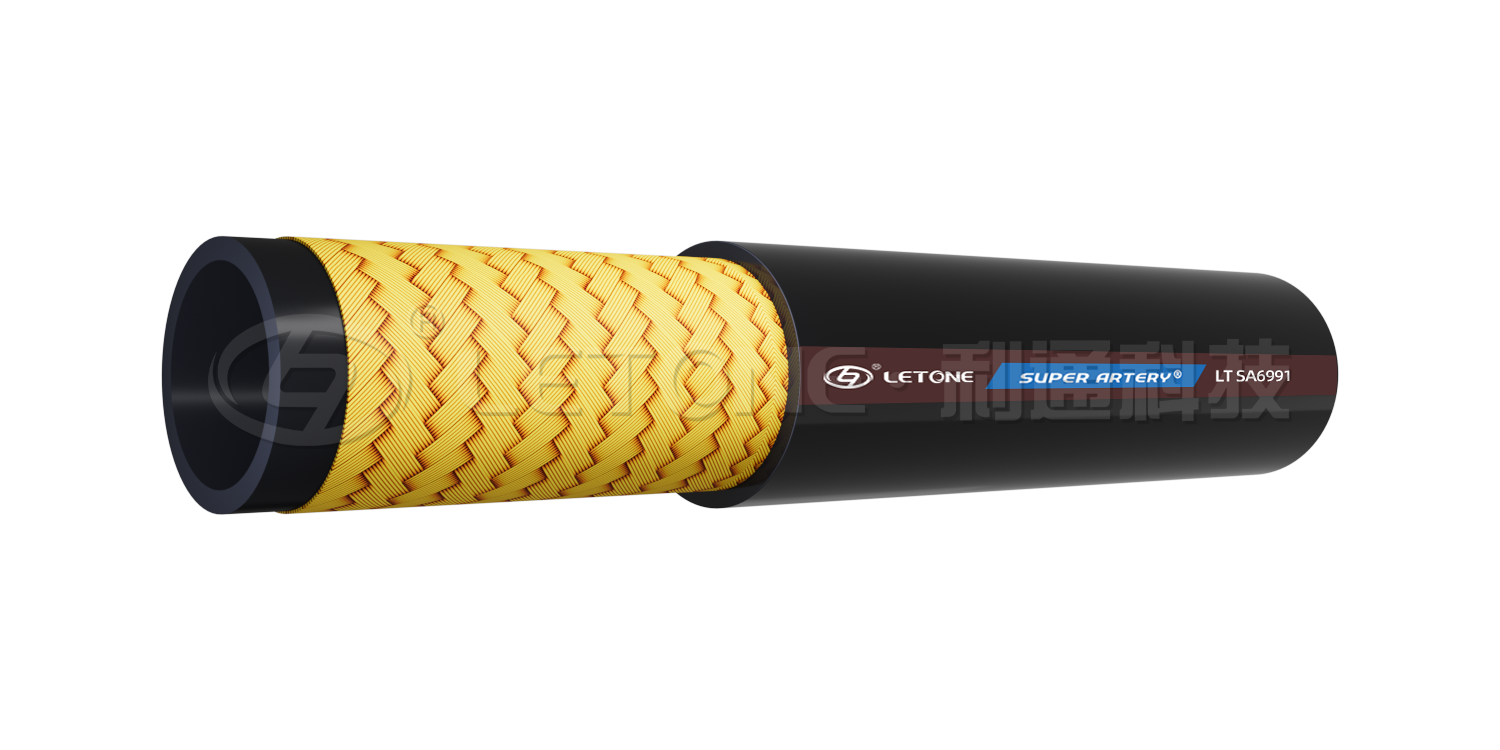

Hose Construction
Inner Tube: NBR or CR synthetic rubber, suitable for biodegradable hydraulic fluids.
Reinforcement: One braid of high tensile steel wire (1/2″-3/4″), impulse≥300,000 cycles.
Four plies of spiraled high tensile steel wire (1″-2″), impulse≥1,000,000 cycles.
Outer Cover: Standard: no-skive abrasion, weather resistant synthetic rubber.
AR cover: no-skive, highly abrasion, weather resistant synthetic rubber.
SAR cover: super abrasion, weather resistant UHMWPE.
Temperature Range: -40°C to +121°C (-40°F to +250°F)
-55°C to +100°C (-67°F to +212°F)
Hose Features:
Low Bend Radius: The average bend radius is 41% less than the ISO 18752 AC/CC standard, 47% less than the SAE standard.
High Pressure: Comply with ISO 18752 BC/CC/DC standard.
Long service Life: Guarantee for two years by using with Letone one-piece or swaged fittings and HNBR seals.
Application: Suitable for heavy duty construction machineries such as excavators or harsh environment use.

Data Display
