LT301F Ultra-Abrasion Resistant Acid Fracturing Hose
Following the new trends in shale oil and gas technology revolution, Letone Technology has focused on tackling the difficulties and key points of high-speed transportation of abrasive materials, corrosive acid fracturing fluids, high-pressure mud and other special fluid media in the shale oil and gas extraction process, and launched a shale oil and gas production enhancement acid fracturing pipeline solution with features such as lightweight, long service life, good flexibility and easy assembly.
- Inner Layer:UPE and synthetic rubber
- Inner diameter type: Full flow
- Reinforcement:Multi-layer wound high-strength ultra-flexible steel wire
- Outer Layer:Wear-resistant, weather-resistant synthetic rubber
- Temperature Range: -29°C~+100°C (-20°F~+212 °F)
- Connection Type:Integral hammer union or integral flange or other forms
-
Full flow
Larger diameter and faster flow rate contribute to increased production efficiency.
-
Super wear-resistant
High-pressure conveying of corundum is the quality choice for sand fracturing projects.
-
Acid and alkali corrosion resistant
The UHMWPE liner, imported from Germany and Japan, can withstand 28% hydrochloric acid, allowing for pressureless delivery of acid-based fracturing fluid.
-
Ultra-high pressure resistance
With a working pressure of up to 20,000 psi (approximately 138 MPa) and a burst pressure of up to 40,000 psi (approximately 276 MPa), it boasts high fracturing efficiency and ensures operational safety.
Application Products
Success Cases
-

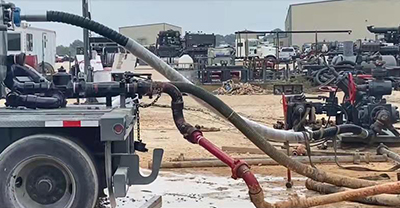

Application of acid fracturing hoses abroad.
-

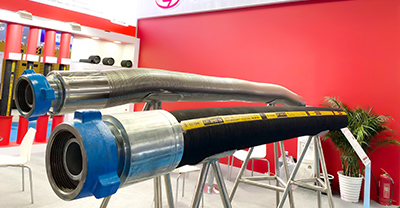

Letone Technology's key technologies and industrialization of hydrogen sulfide-resistant and pulse-resistant ultra-high pressure oil drilling hoses won the provincial science and technology progress award.
-

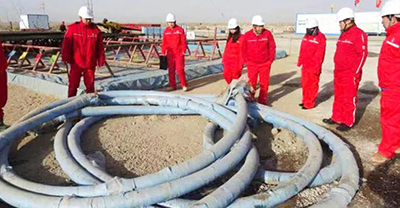

The Tarim Testing Branch achieved good results in its trial operation of the LT301 F acid fracturing hose.
-

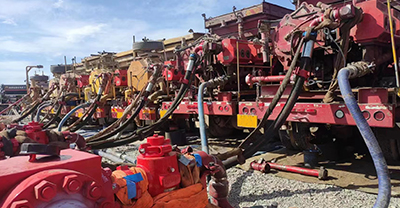

PetroChina Western Drilling Application Site.
