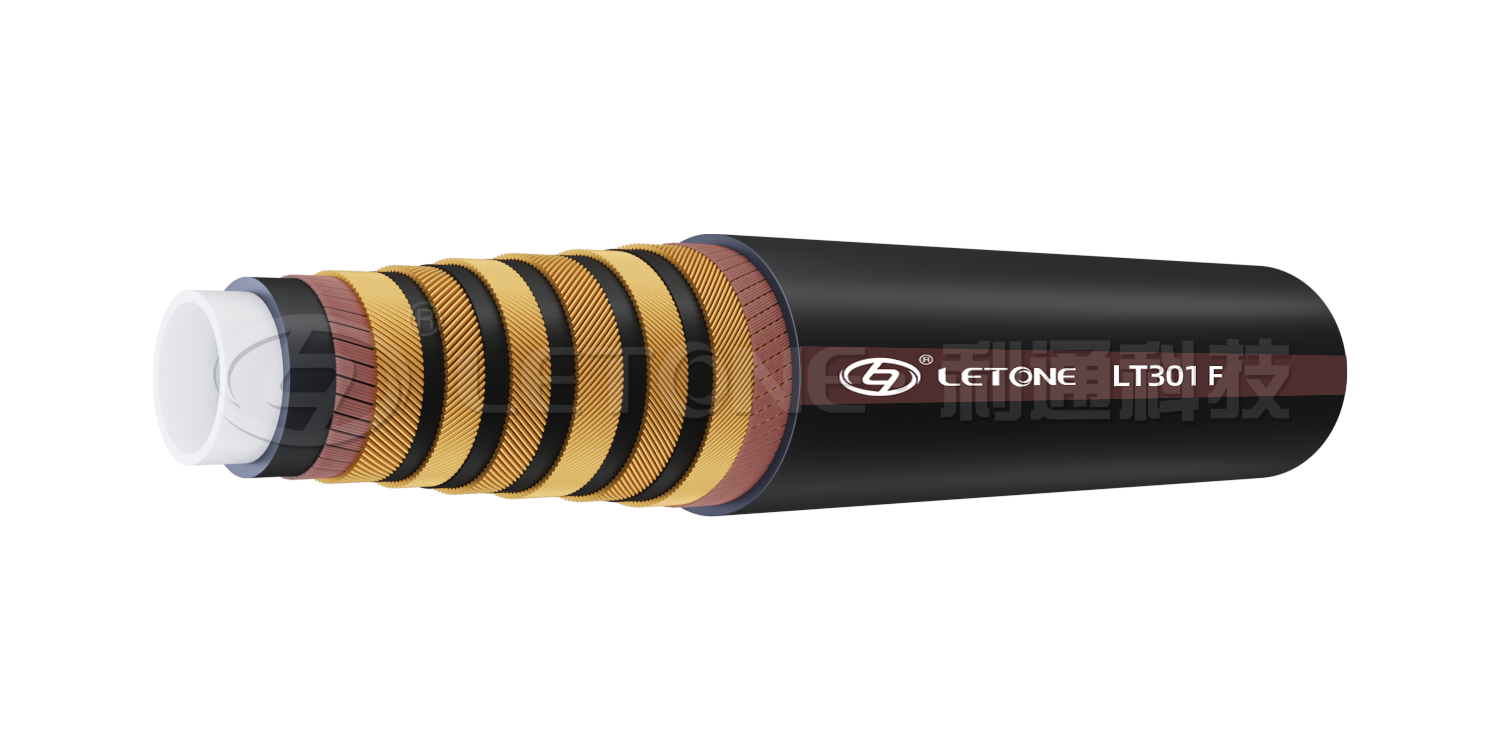

Ultra-wear resistant acid fracturing hose, API 7K fracturing hose

Parameter

Size	I.D.	0.D.	W.P.	T.P.	Min.B.R.		W.T		Volume		Connector W.T		Connection Type
inch	mm	mm	Psi	Psi	m	ft	kg/m	Ib/ft	bbl/min	m3/min	kg	Ib/set	Connection Type
2"	32	81	15000	22500	1.2	3.94	11.5	7.7	4.5	0.72	25	55	2"FIG 1502 HammerUnion or 21/16"15K APIflange
	44	95	15000	22500	1.4	4.59	18	12	9	1.46	45	99	3"FIG1502 Hammer Union or 31/16“15KAPlflange”
	51	107	15000	22500	1.4	4.59	20	13	12	1.91	59	130
2.5”	58	122	15000	22500	1.5	4.92	24	16	15	2.39	61	134
2.5”	64	126	15000	22500	1.5	4.92	27	18	18.5	2.90	75	165
3"	69	135	15000	22500	1.6	5.25	30	20	21.5	3.42	91	201
3"	76	145	15000	22500	1.6	5.25	35	24	26	4.13	102	225
4”	89	164	15000	22500	2.0	6.56	52	35	36	5.72	132	291	4”FIG1502 Hammer Union or 41/16"15KAPlflange
4”	102	179	15000	22500	2.0	6.56	60	40	47	7.47	154	340	4”FIG1502 Hammer Union or 41/16"15KAPlflange
5”	120	208	15000	22500	2.1	6.89	80	54	65	10.34	402	886	51/8"15KAPIflange
5”	127	216	15000	22500	2.1	6.89	86	58	73	11.61	407	897	51/8"15KAPIflange
5.5”	140	243	15000	22500	2.2	7.22	110	74	88.5	14.07	653	1440	71/16"15KAPI flange
6”	152	255	15000	22500	2.3	7.54	125	84	104.5	16.62	703	1550	71/16"15KAPI flange
2”	51	112	20000	30000	1.5	4.92	26	17	12	1.91	78	172	2"FIG 2002Hammer Union or 31/16"20KAPI flange
2.5”	64	133	20000	30000	1.6	5.25	36	24	18.5	2.90	103	227	3"FIG 2002Hammer Union or 31/16"20KAPlflange
3”	76	159	20000	30000	1.9	6.23	57	38	26	4.13	135	298	3"FIG 2002Hammer Union or 31/16"20KAPlflange
4”	102	202	20000	30000	2.1	6.89	94	63	47	7.47	400	882	41/16"20KAPI flange

Remark:According to the customer'srequriements,the I.D.of all the above sizes of hose assemblies can be made into full bore I.D.or non-full bore l.D.(A full bore hose assembly's effective flow I.D. is at least 95% of its nominal I.D.)The flow rate is calculated at a flow velocity of 50ft/s;LETONE recommends that the working flow velocity should not exceed 40ft/s.
