LT303

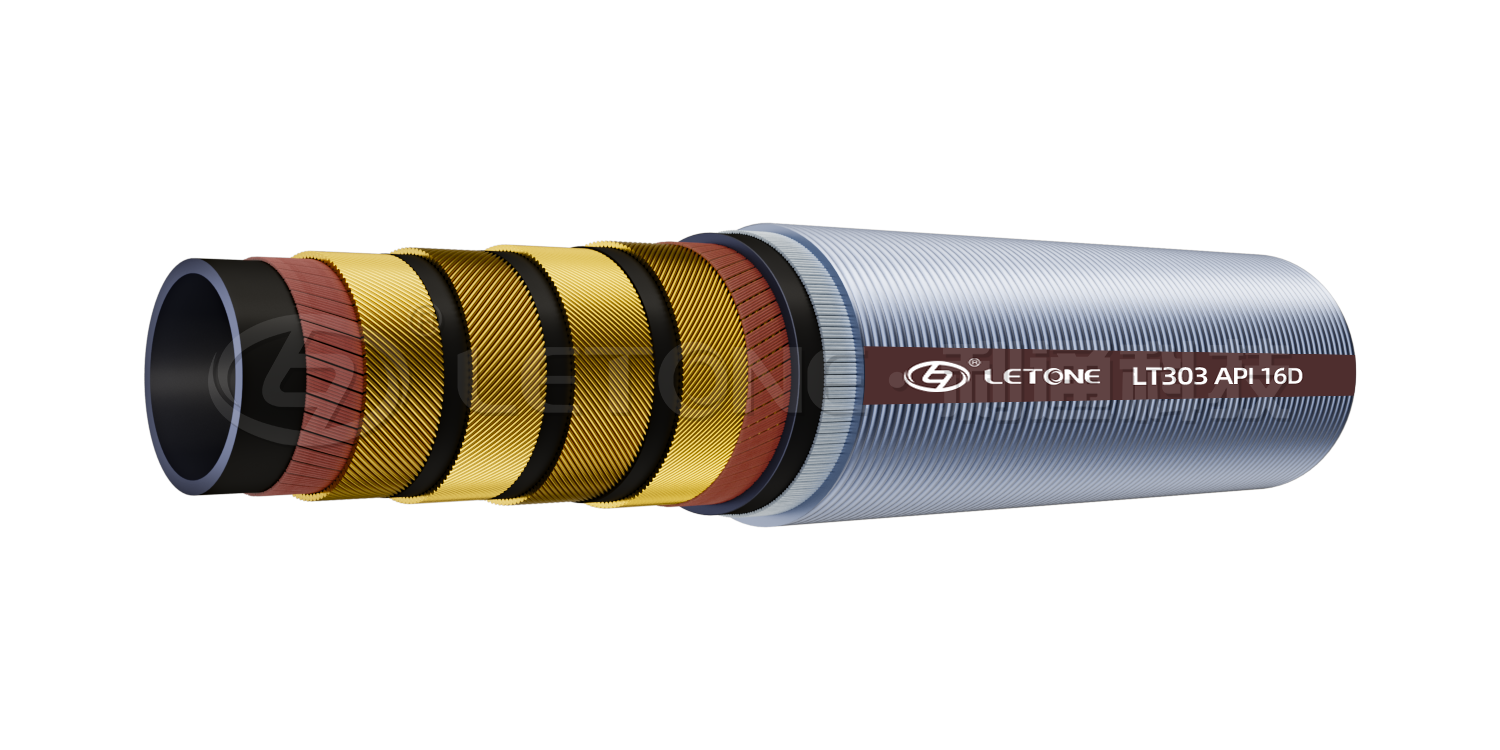

API 16D Series-BOP Control Hose

  • Hose Construction
  • Inner Tube: NBR
  • Tube Type: Full bore
  • Reinforcement:4 plies of spiraled high tensile super flexible steel wire
  • Outer Layer:High temperature and fire resistant synthetic rubber
  • Protection Layer: Stainless steel armor
  • Temperature Range: -40°C~+100°C (-40°F~+212°F) Fire resistance meets API Spec. 16D, 704°Cx5min
  • Application:Hydraulic control line for remotely control the blowout preventer (BOP) at high pressure.
Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686


Parameter

I.D.W.P.P.P.Min. B.P.Min. B.R.Weight
(in.)(psi)(psi)(psi)(mm)(kg/m)
1/250007500150003001.9
3/450007500150004002.7
150007500150005003.6
1 1/250007500150007005.3
250007500150008007.2
Note: Actual parameters are subject to the latest catalog.
