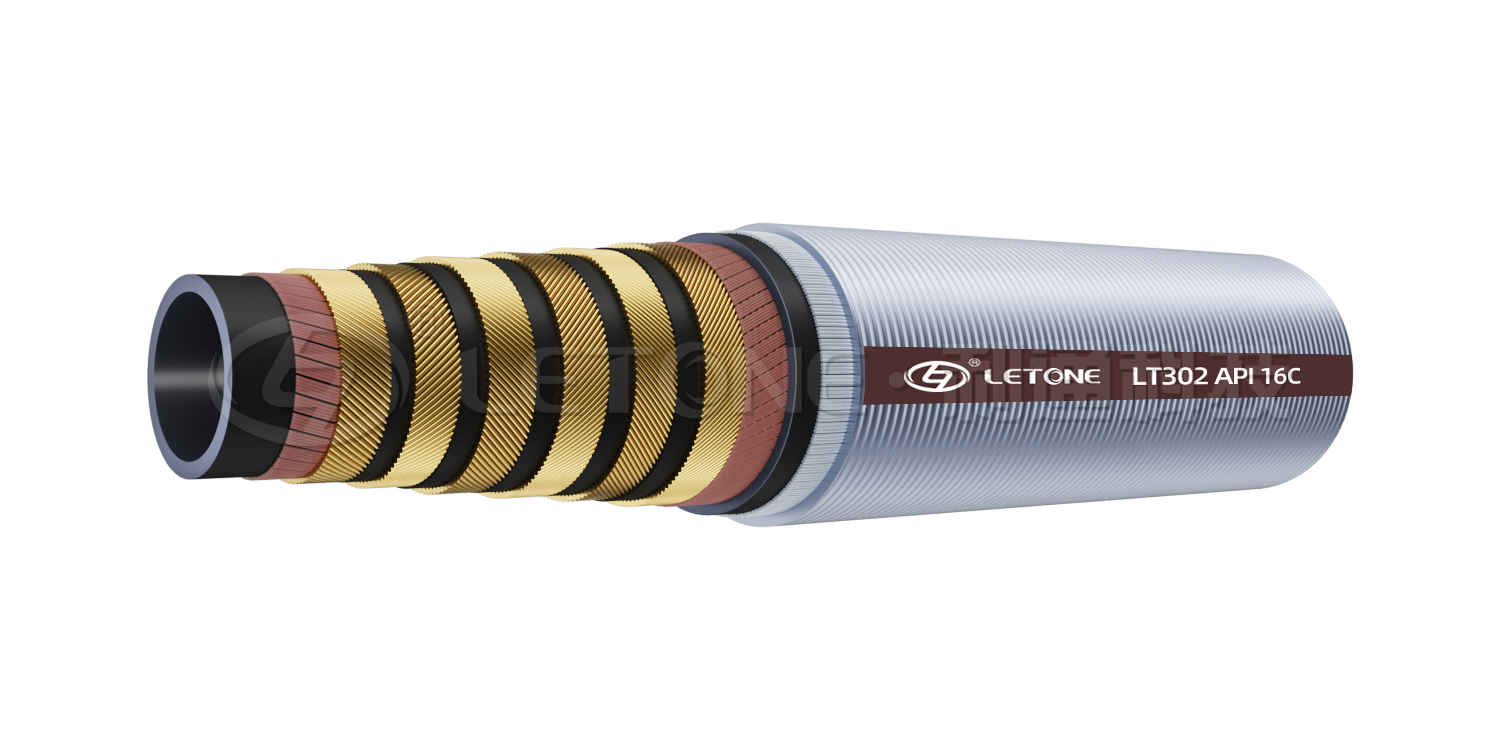

LT302

API 16C Series-Flexible Choke and Kill Line

  • Hose Construction
  • Inner Tube: HNBR/UPE
  • Bore Type: Full bore
  • Reinforcement:Multi-spiraled high tensile super flexible steel wire
  • Outer Layer:High temperature and fire resistant synthetic rubber (resistant to 704°C open fire for 30 minutes)
  • Outer Protection Layer:Stainless steel armor
  • Temperature Range:-29°C~+121°C (-20°F~+250°F)
  • Connector: Integral hammer union or integral flange
  • Application:Flexible connection in the chock and kill manifolds for delivery oil-gas mixture that containing hydrogen sulfide (H2S) and other dangerous gases and various water-based, oil-based and foam killing fluids under high pressure.

24 Hours Service Hotline

+86-0371-55157686


Parameter

Pressure LevelI.D.0.D.W.P.P.P.Min. B.P.Min.B.R.Weight
psiin.mmpsipsipsimmkg/m
5000289500075001125010009.5
31155000750011250120014.8
3 1/21335000750011250140020
41475000750011250160030
10000296100001500022500120015
2 1/2126100001500022500160025
3 140100001500022500160033
4167100001500022500180052
150002101150002250033750140021
3141150002250033750160033
4171150002250033750200056
Note: Actual parameters are subject to the latest catalog.



Success Cases

  • Applied to the CNOOC Liuhua 11-1 module drilling rig project (7K)

    Applied to the CNOOC Liuhua 11-1 module drilling rig project (7K)

    Applied to the CNOOC Liuhua 11-1 module drilling rig project (7K)

  • Applied to the Enping 15-1CEP/20-4DPP modular drilling rig project (7K)

    Applied to the Enping 15-1CEP/20-4DPP modular drilling rig project (7K)

    Applied to the Enping 15-1CEP/20-4DPP modular drilling rig project (7K)

  • Applied to the Enping 18-6 offshore platform project of Xinhai Oilfield (company name)

    Applied to the Enping 18-6 offshore platform project of Xinhai Oilfield (company name)

    Applied to the Enping 18-6 offshore platform project of Xinhai Oilfield (company name)

  • Applied to the Xijiang 30-2 and Huizhou 26-6 projects in Haitao Oilfield (company name) (7K)

    Applied to the Xijiang 30-2 and Huizhou 26-6 projects in Haitao Oilfield (company name) (7K)

    Applied to the Xijiang 30-2 and Huizhou 26-6 projects in Haitao Oilfield (company name) (7K)

  • Applied to the Lufeng 8-1 offshore platform project (7K) of Xinhai Oilfield (company name).

    Applied to the Lufeng 8-1 offshore platform project (7K) of Xinhai Oilfield (company name).

    Applied to the Lufeng 8-1 offshore platform project (7K) of Xinhai Oilfield (company name).

  • Design, procurement, and manufacturing of modular drilling rigs (LF14-4DPP & LF15-1DPP) for the CNOOC Lufeng Oilfield Cluster Regional Development Project (7K)

    Design, procurement, and manufacturing of modular drilling rigs (LF14-4DPP & LF15-1DPP) for the CNOOC Lufeng Oilfield Cluster Regional Development Project (7K)

    Design, procurement, and manufacturing of modular drilling rigs (LF14-4DPP & LF15-1DPP) for the CNOOC Lufeng Oilfield Cluster Regional Development Project (7K)
